Overview of granted patents
There are more granted patents (app.50) and also diverse patent applications. Below is a small overview.

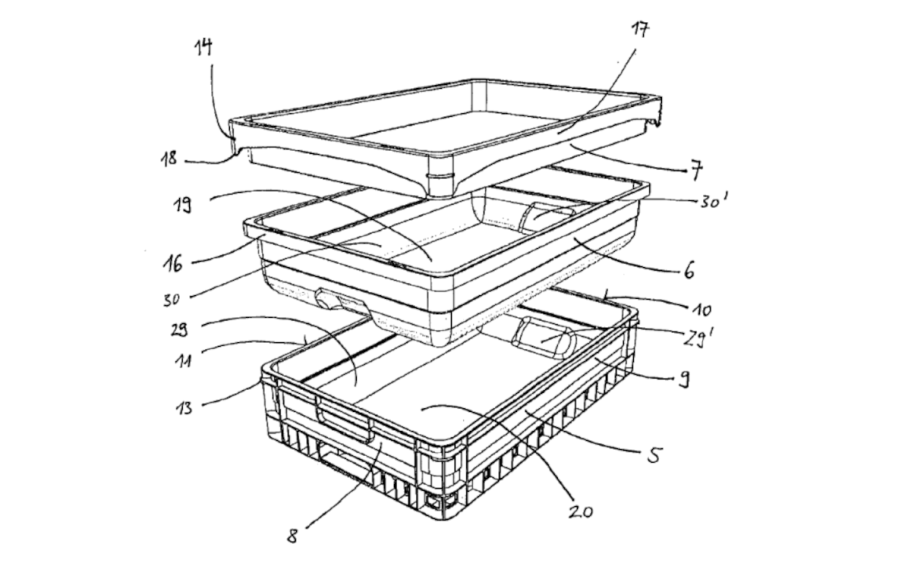

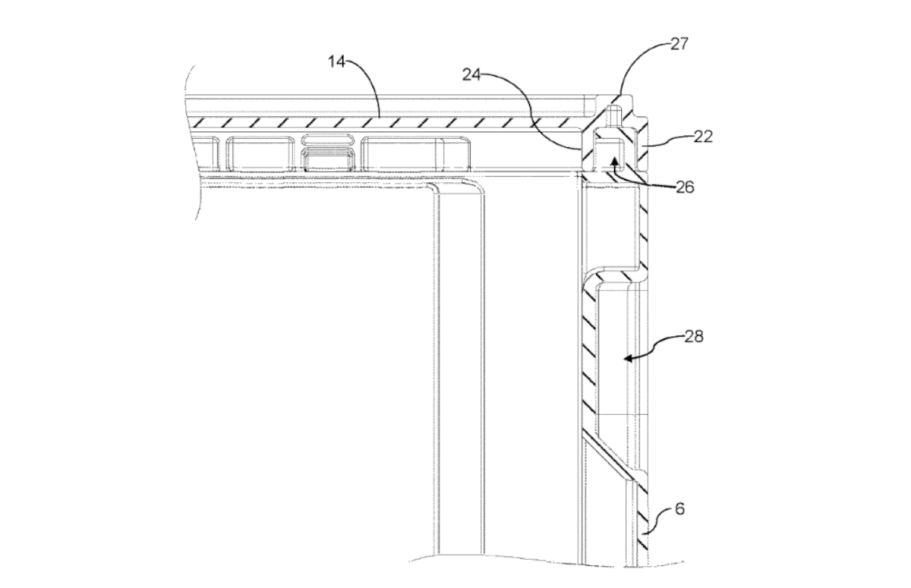

CONTAINER IN PARTICULAR FOR PRODUCING AND STORING WINE AND FRUIT GUMMY AND THE LIKE
The present invention relates to a novel container (1) which is configured to make a production process more efficient and cost effective in particular when producing wine- and fruit gummy. Thus, ventilation channels (24, 26) are advantageously provided which facilitate air circulation into a container interior (4) also for stacked containers (1).
PLASTICS TRANSPORT CONTAINER, IN PARTICULAR TRANSPORT BOX
In a plastics transport container, in particular transport box, with a base and peripherally arranged side walls (1, 2), foldable side wall elements (7, 8) are formed in at least one side wall of the container, said side wall elements being integrated into the side wall in such a manner that, in the folded-back position, the side wall elements open up a removal opening (13).

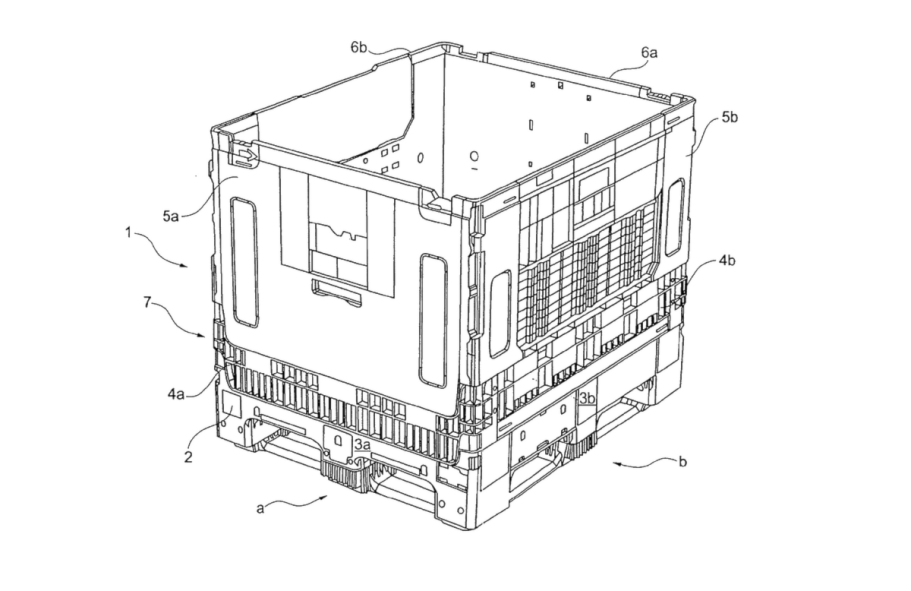

LARGE CARGO CARRIER
The invention relates to a large load carrier (1) including a pallet-shaped base element (2) and at least one detachably fastened side wall (5a, 5b). According to the invention, the large cargo carrier includes at least one pedestal element (4a, 4b), which is configured so that the pedestal element is detachably fastened at the pallet-shaped base element and is detachably fastened at the at least one side wall. The invention further relates to a kit for constructing such a large cargo carrier.

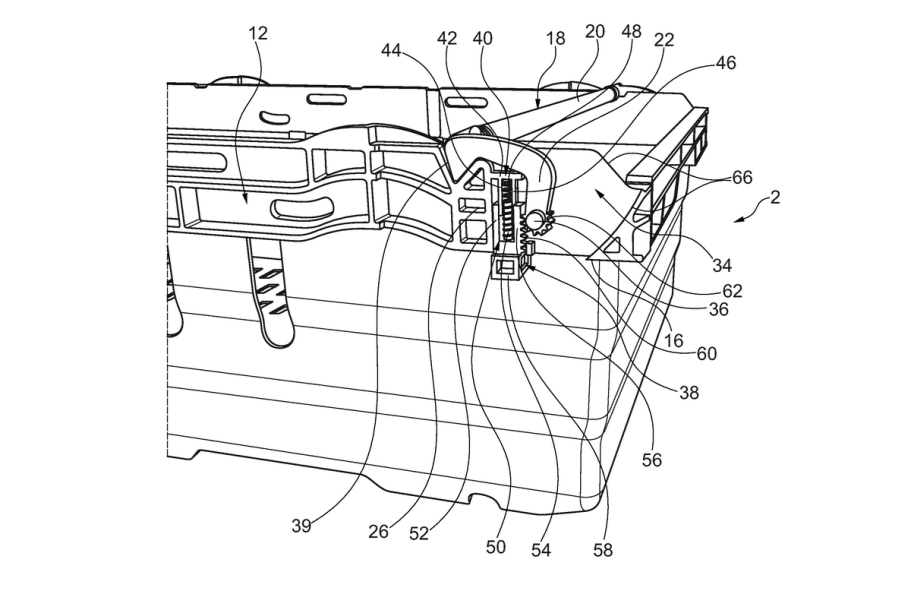

STACKABLE AND NESTABLE CONTAINER
A container (2, 2'), in particular plastic container, has an in particular rectangular base (4) and side walls connected fixedly or hinged thereto, in particular two long side walls (6) and two short side walls (8). Stacking brackets (18) coupled movably to one of the side walls (6, 8) expose an opening cross-section when in a nesting position so that an identical or compatible container can be nested in the container. When in a stacking position, the stacking brackets project laterally into the opening cross-section to allow a compatible container to the stacked thereon. The stacking brackets are pre-tensioned into the stacking position by means of at least one pre-tensioning device. Furthermore, the container has actuating elements (38, 38') which are (force-)coupled to the stacking brackets and are configured to transfer the stacking brackets to the nesting position when the container is nested in a compatible second container.

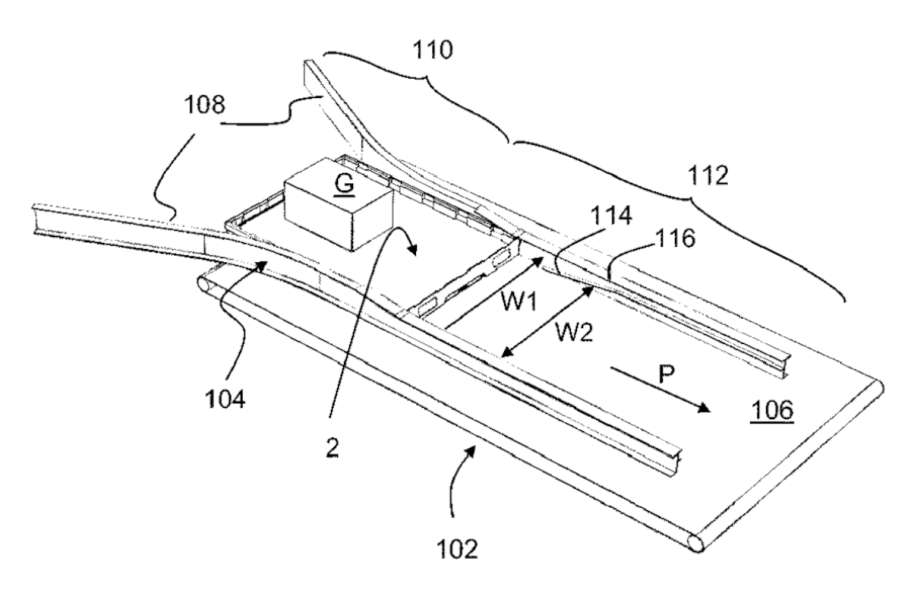

TRANSPORT MEANS AND TRANSPORT DISTRIBUTION SYSTEM
Disclosed is a transport means for receiving goods in order to transport such goods in a transport or distribution system by means of conveyor belts and/or roller conveyors, comprising: a base body whose bottom serves as a placement surface on a base, and a movably captured floor element perpendicular to the placement surface in the basic body, the upper side of which is used as a charge surface for the transported goods and is movable between a lowered position in which the charge surface is bounded laterally, and a raised position in which at least one side of the charge surface is not limited by the base body. Further, at least one sliding portion provided on the floor element extends through at least one correspondingly provided opening in the base body in order to cooperate with at least one guide portion stationary arranged in the transport or distribution system for transferring the floor element from the lowered position to the raised position while sliding along the at least one sliding portion to the at least one guide portion.

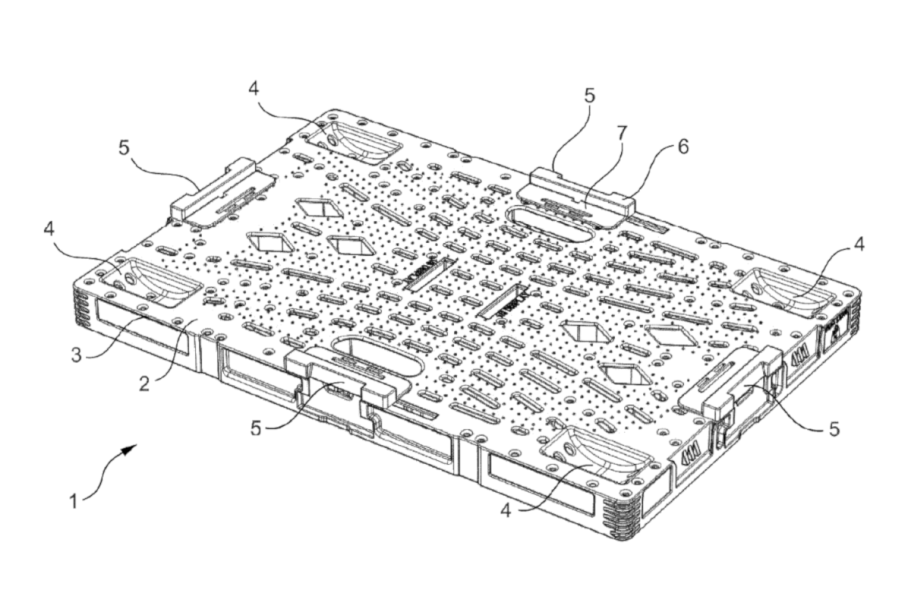

TRANSPORT PLATFORM INCLUDING ADAPTOR ELEMENTS
An adapter element and a transport platform, such as a dolly (1), including at least one such adapter element (5), said at least one adapter element (5) being connected or connectable to the dolly (1) and having a rim portion (6) protruding from a deck (2) of the dolly (1) for restraining loads placed on top of the deck (2) at least in a lateral direction, wherein the at least one adapter element (5) is provided with one or more legs (8, 12; 8, 12, 17,.18) each comprising an engagement portion (9, 13; 9;13, 19, 20), preferably tabs or protrusions, for being received and snap-fitted into a corresponding opening (10, 15) provided in the deck (2). An outer leg (12) of the one or more legs (8, 12; 8, 12, 17, 18) is formed as a tab or tongue having a through hole (13) which serves as an engagement portion of the outer leg (12).

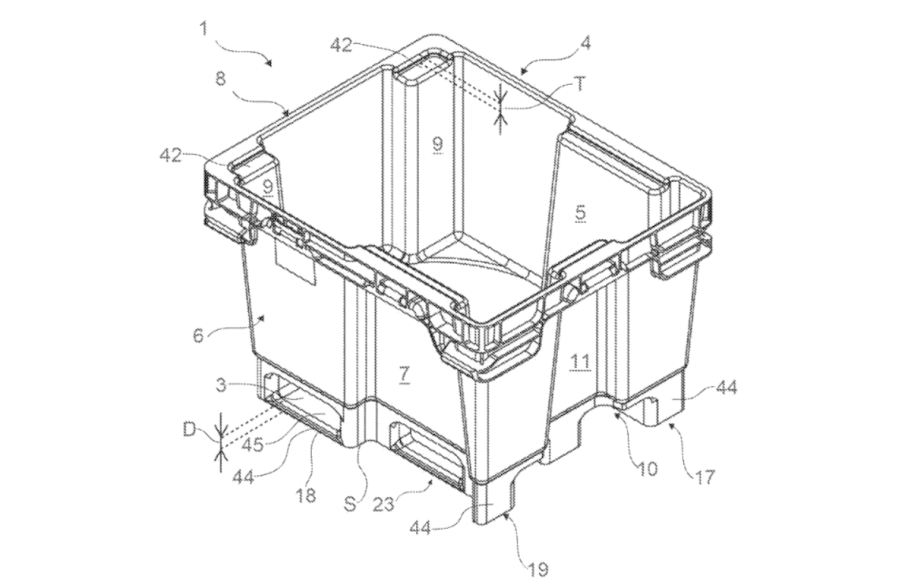

ROTATABLE, STACKABLE PALLET CONTAINER
A pallet container includes a bottom, side walls that extend from the bottom upwards, widening conically and/or in stages, towards a peripheral container edge, and skids that allow a fork of a forklift truck or other industrial truck to be inserted. The bottom and the side walls are shaped such that the pallet container can be nested in an identical pallet container oriented the same way and can be stacked on an identical pallet container that has been rotated relative to the pallet container by 180° only in relation to a vertical axis. The outer contour of the skids aligns with the outer contour of the side walls.

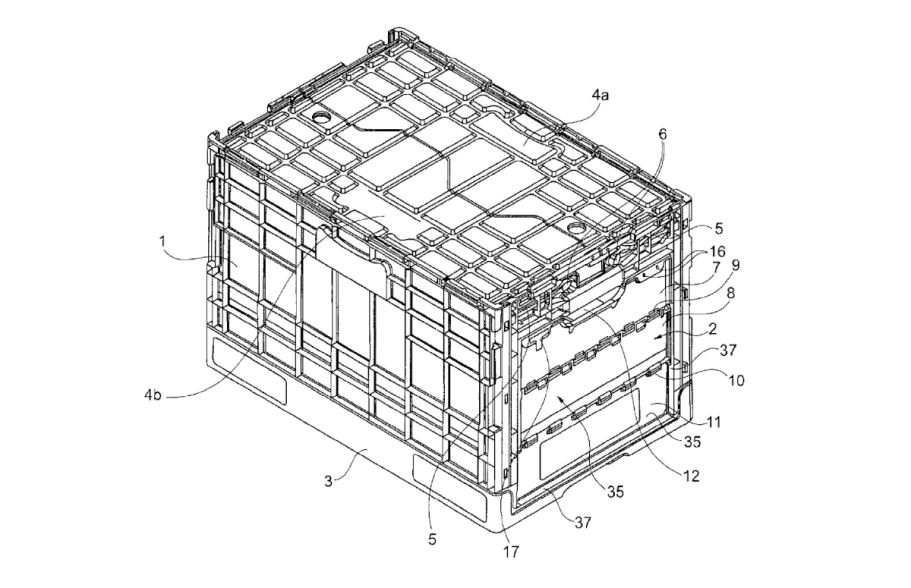

FOLDING CONTAINER
A foldable container includes a bottom, side walls that can be folded in, a lid, a closure element that can be moved relative to the lid, at least one first closure element mating piece, and at least one second closure element mating piece. The at least one second closure element mating piece is provided on a portion of the side walls that faces the bottom and/or on the bottom in such a way that, in a storage position of the lid, the at least one second closure element mating piece can interact in a form-fitting manner with the closure element in order to lock the lid in the storage position with the side walls folded in.

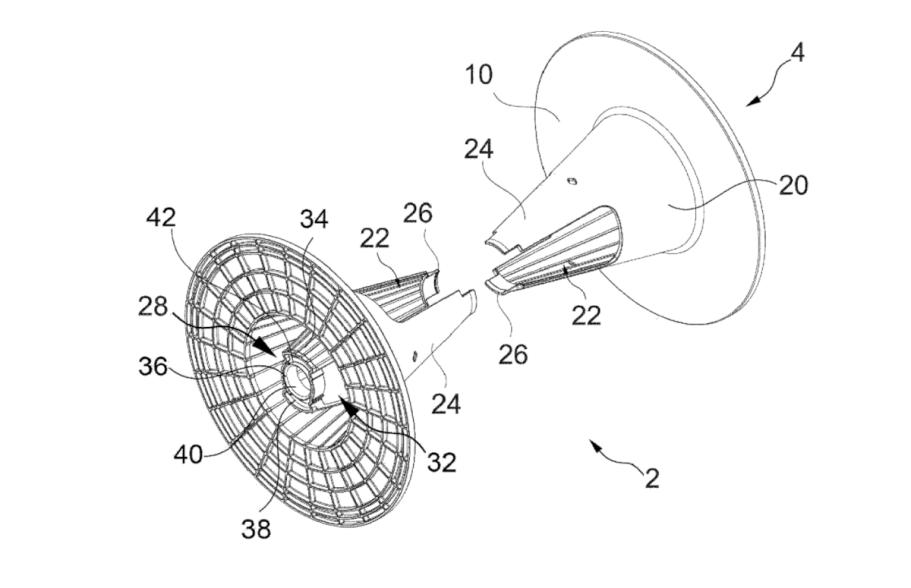

SPLITTABLE CABLE REEL WITH AUTOMATIC LATCHING
The present disclosure relates to a divisible cable reel (2) having two identical interconnectable halves (4), each half (4) having a hollow reel portion (6) extending to the middle of the cable reel for winding a cable (30); and a sidewall portion (8) which is laterally bounding the reel portion (6) on its diameter-sized side for lateral support of the coiled cable (30). The reel sections (6) are each transversely slotted at their diameter-sized side pointing towards the middle of the cable drum or have, preferably U-shaped, recesses (10), so that the remaining material tongues (12) of the reel portion (6) of one half (4) and the remaining material tongues of the reel portion (6) of the other half (4).
