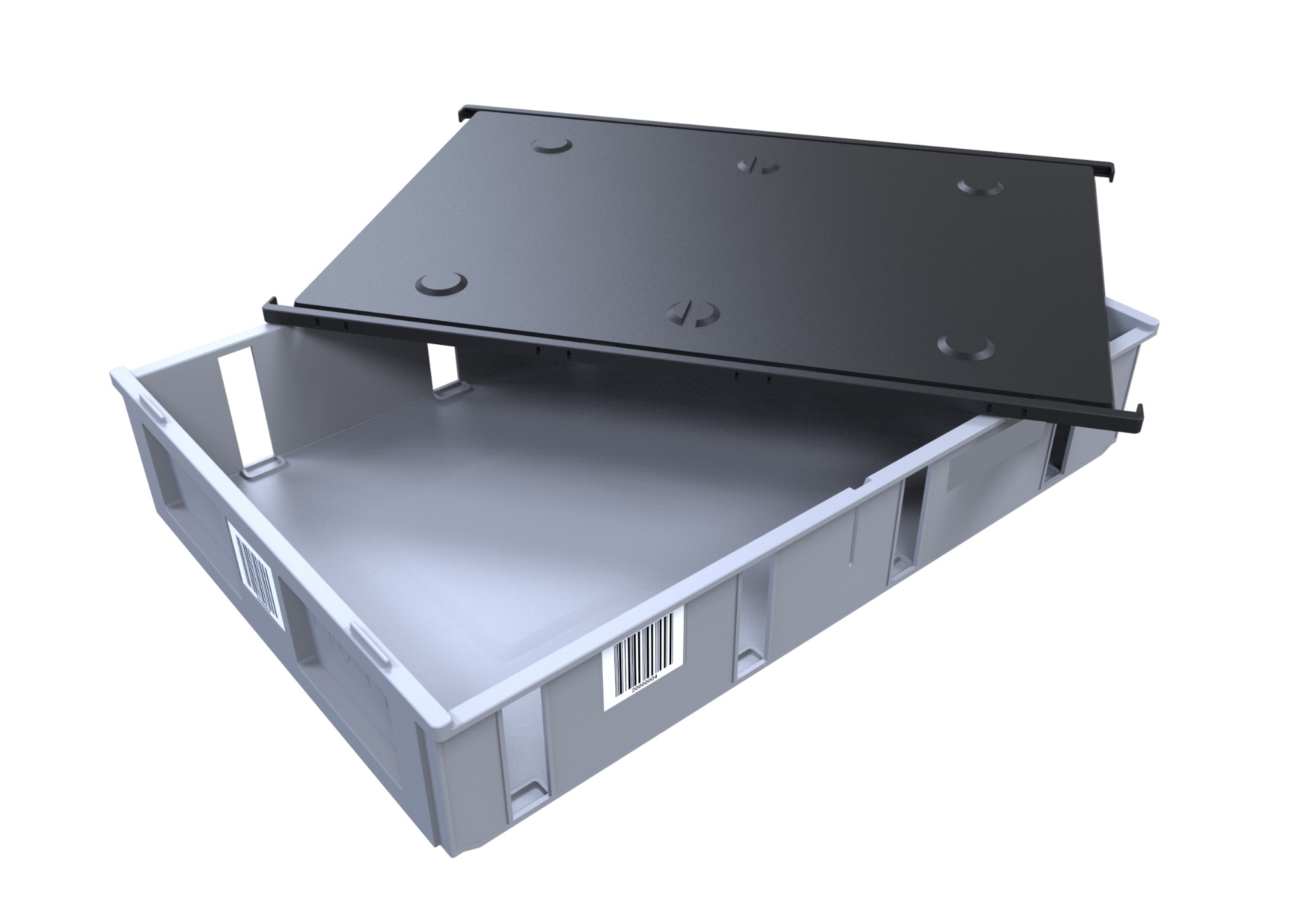

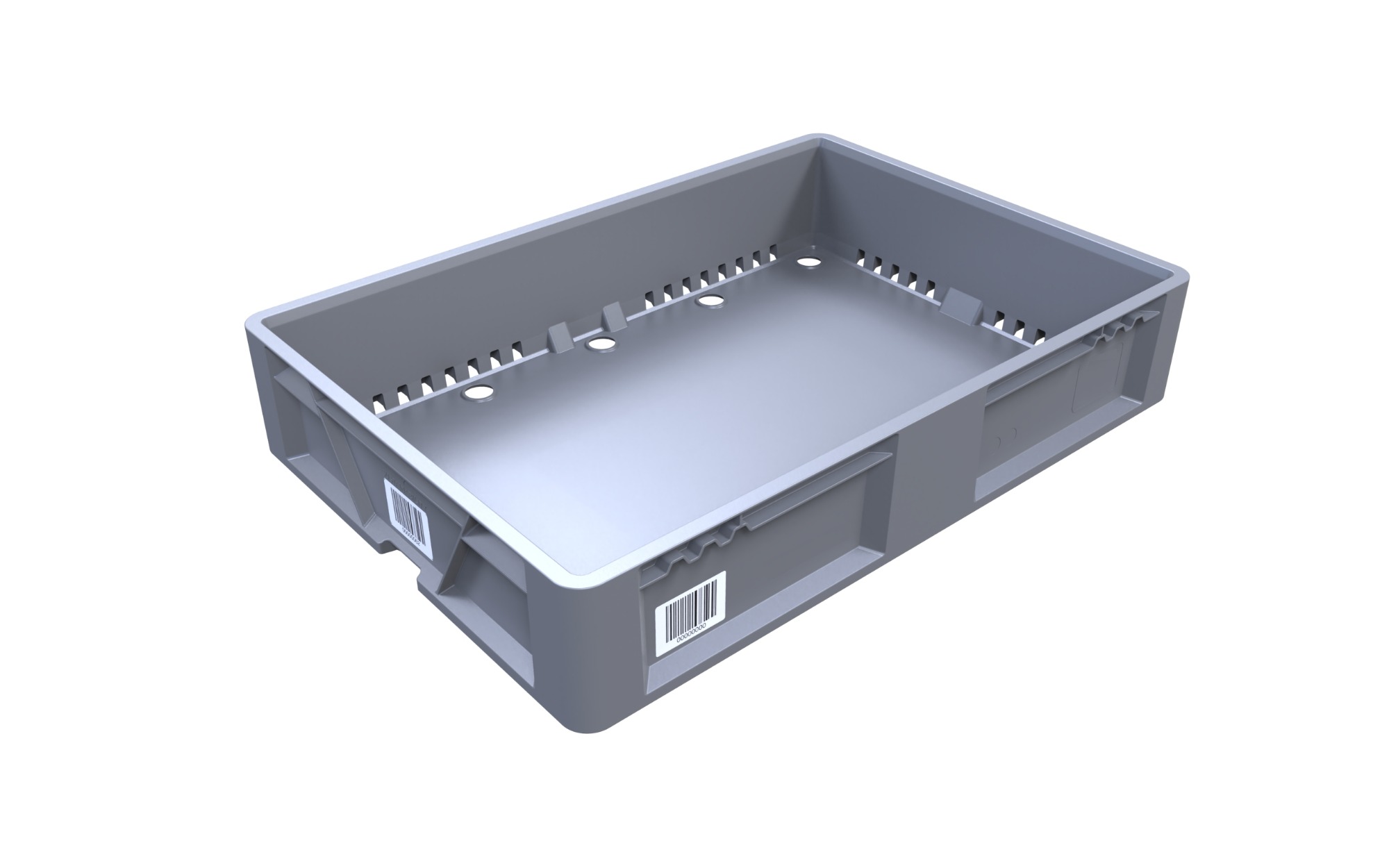

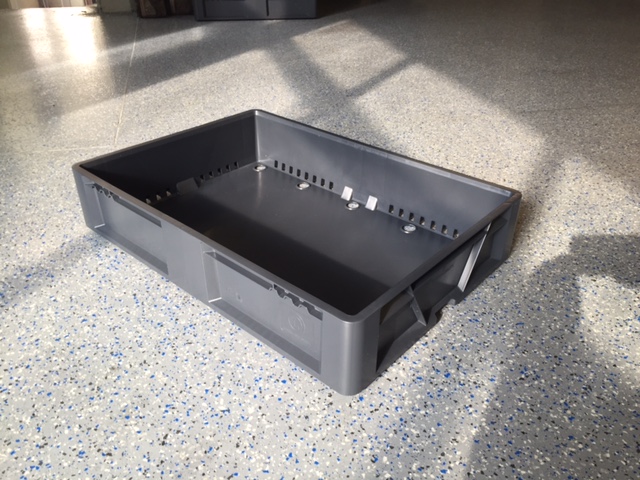

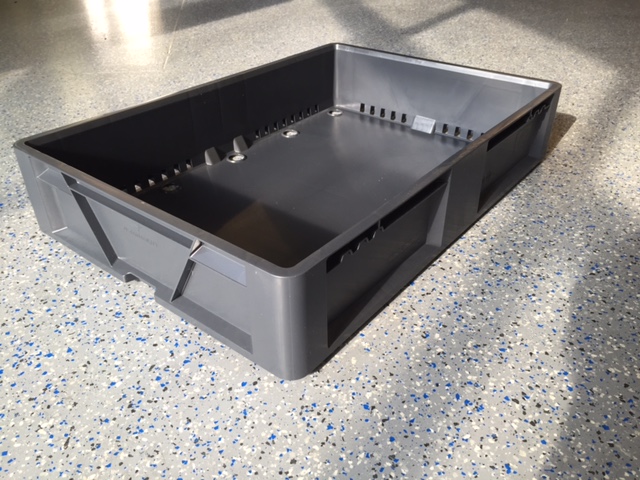

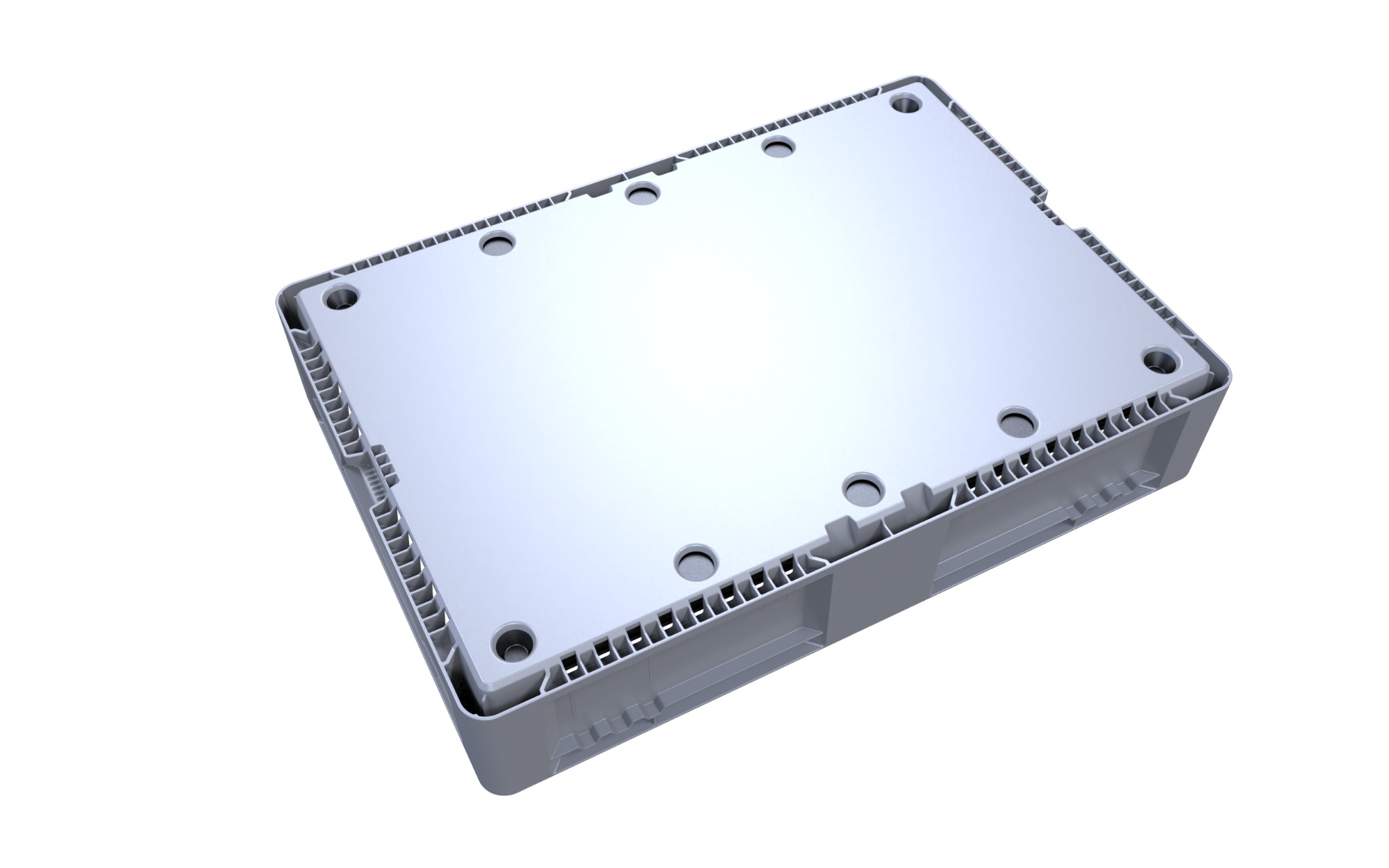

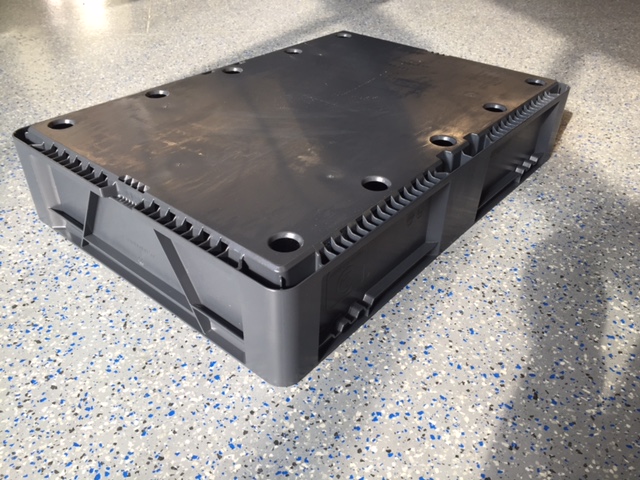

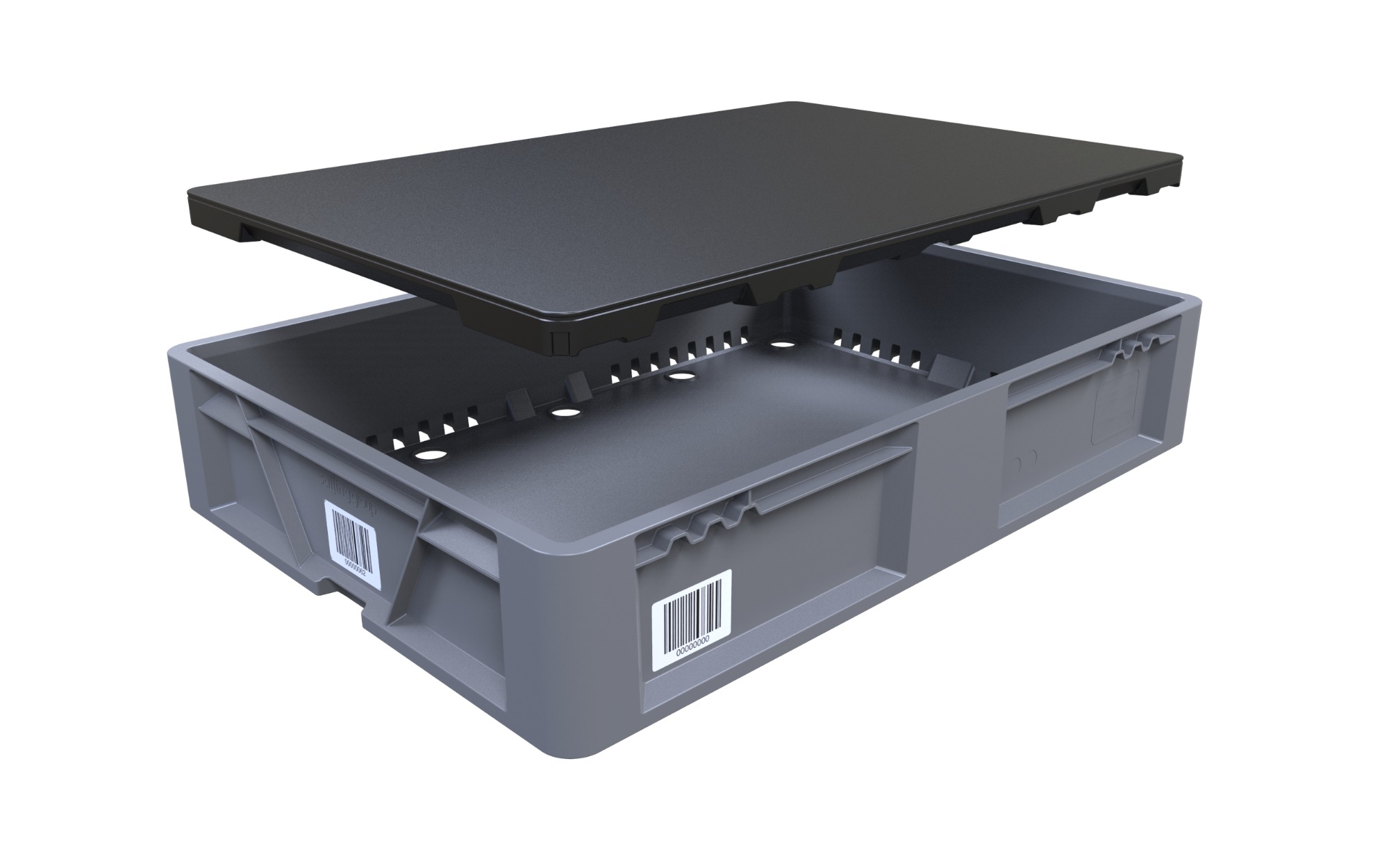

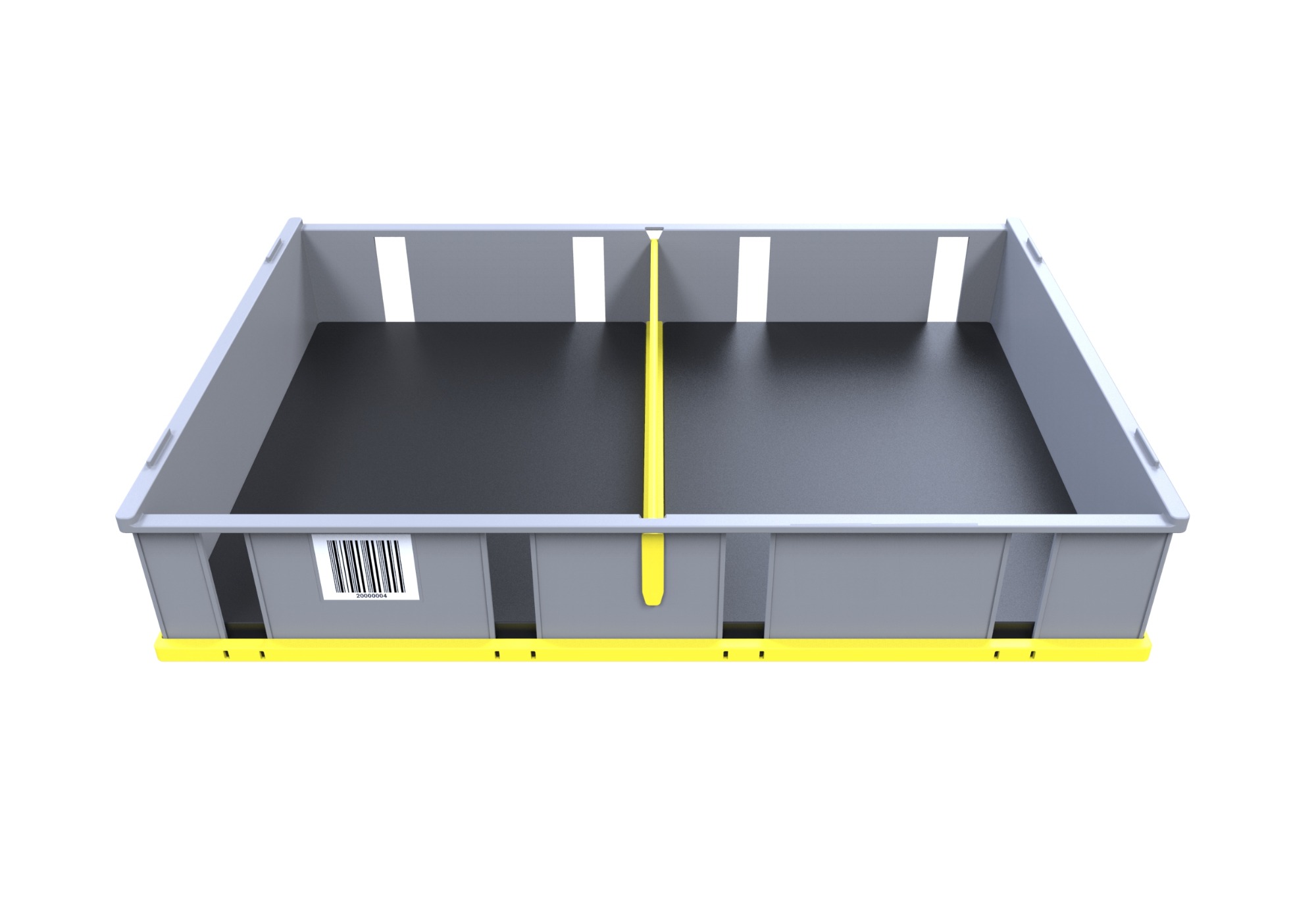

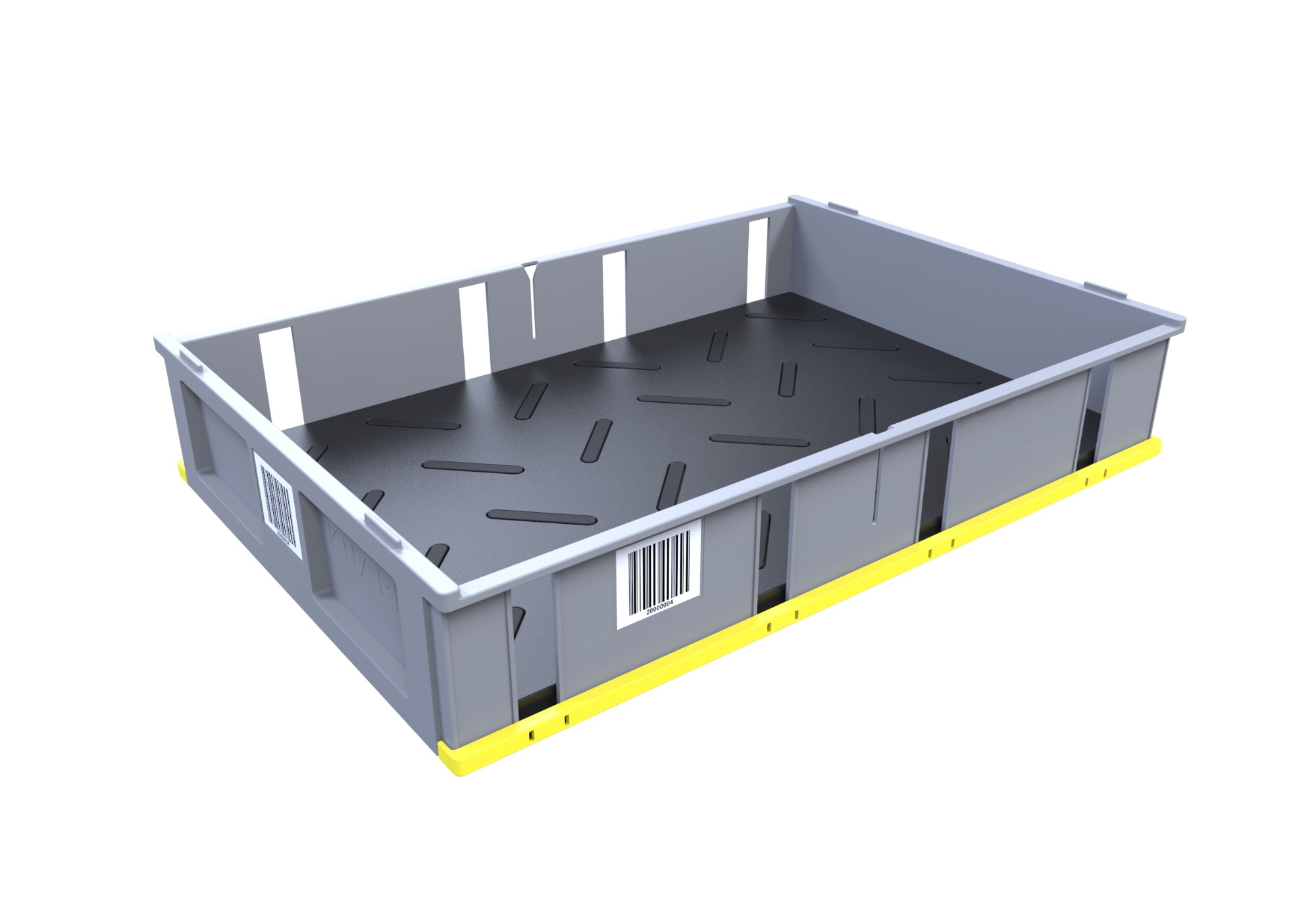

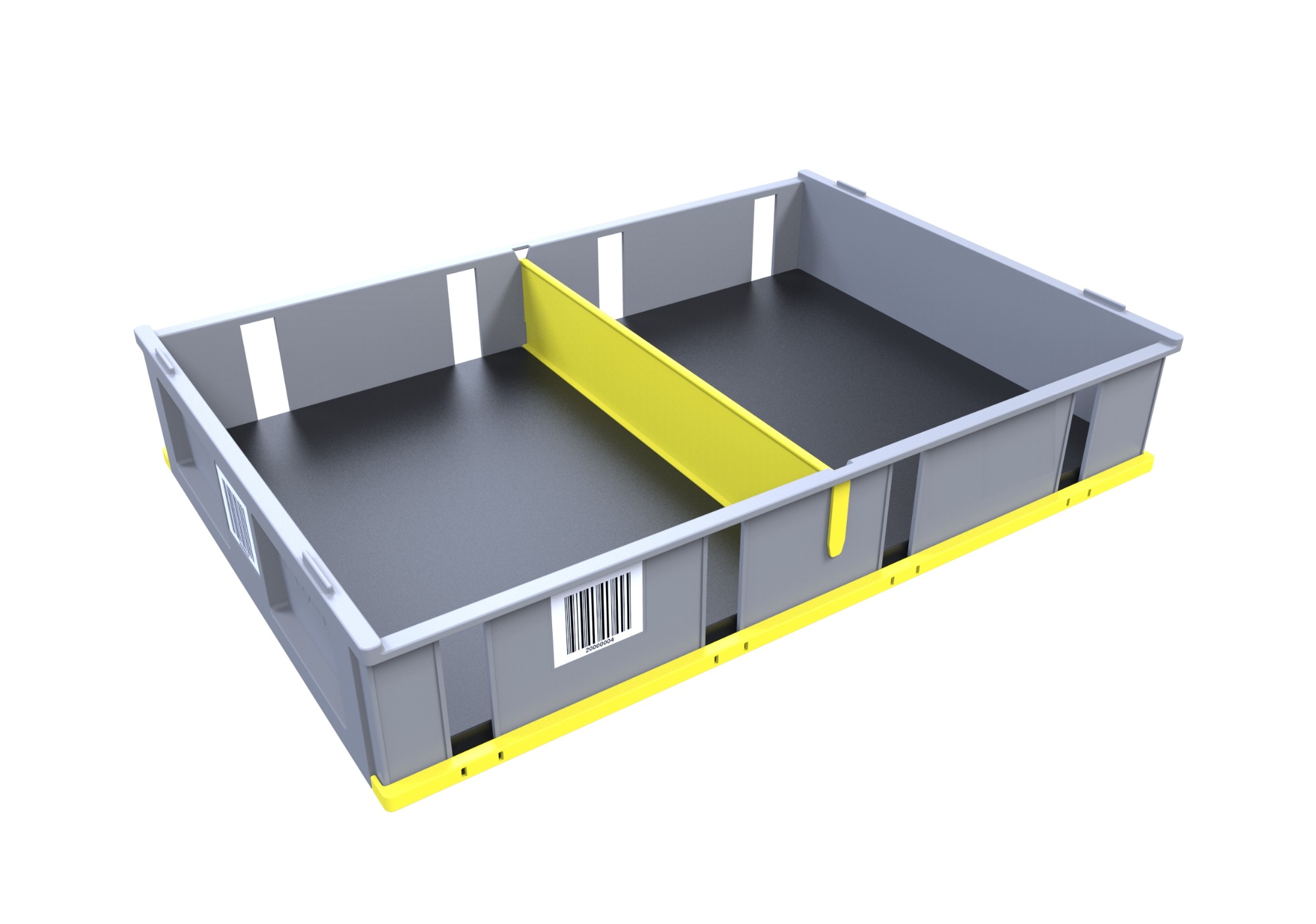

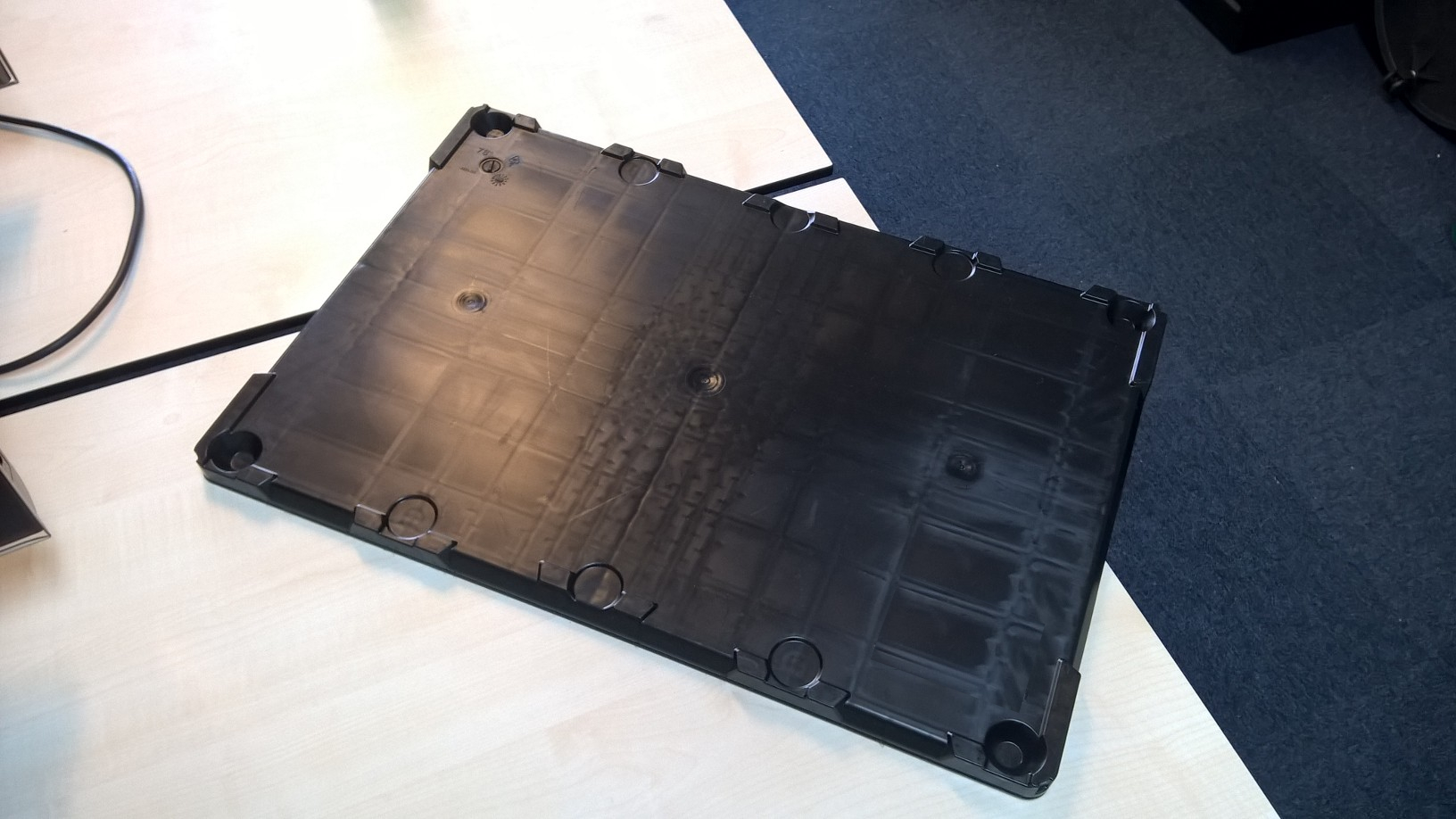

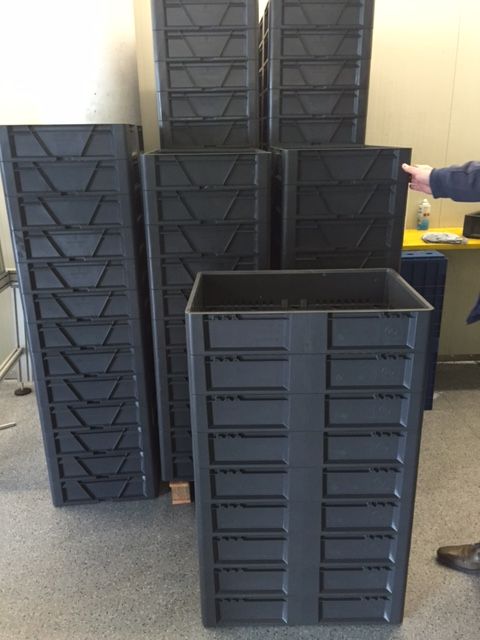

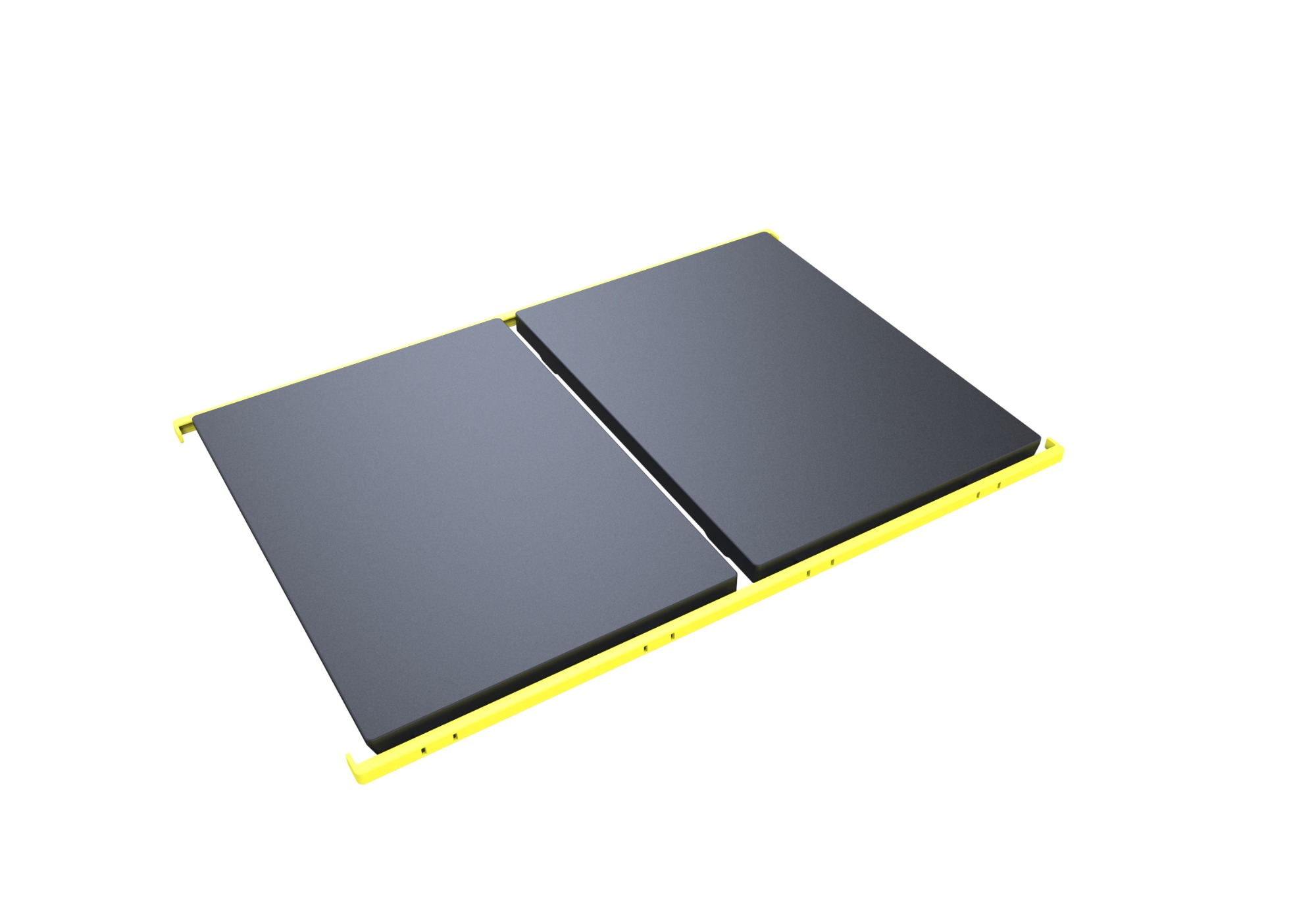

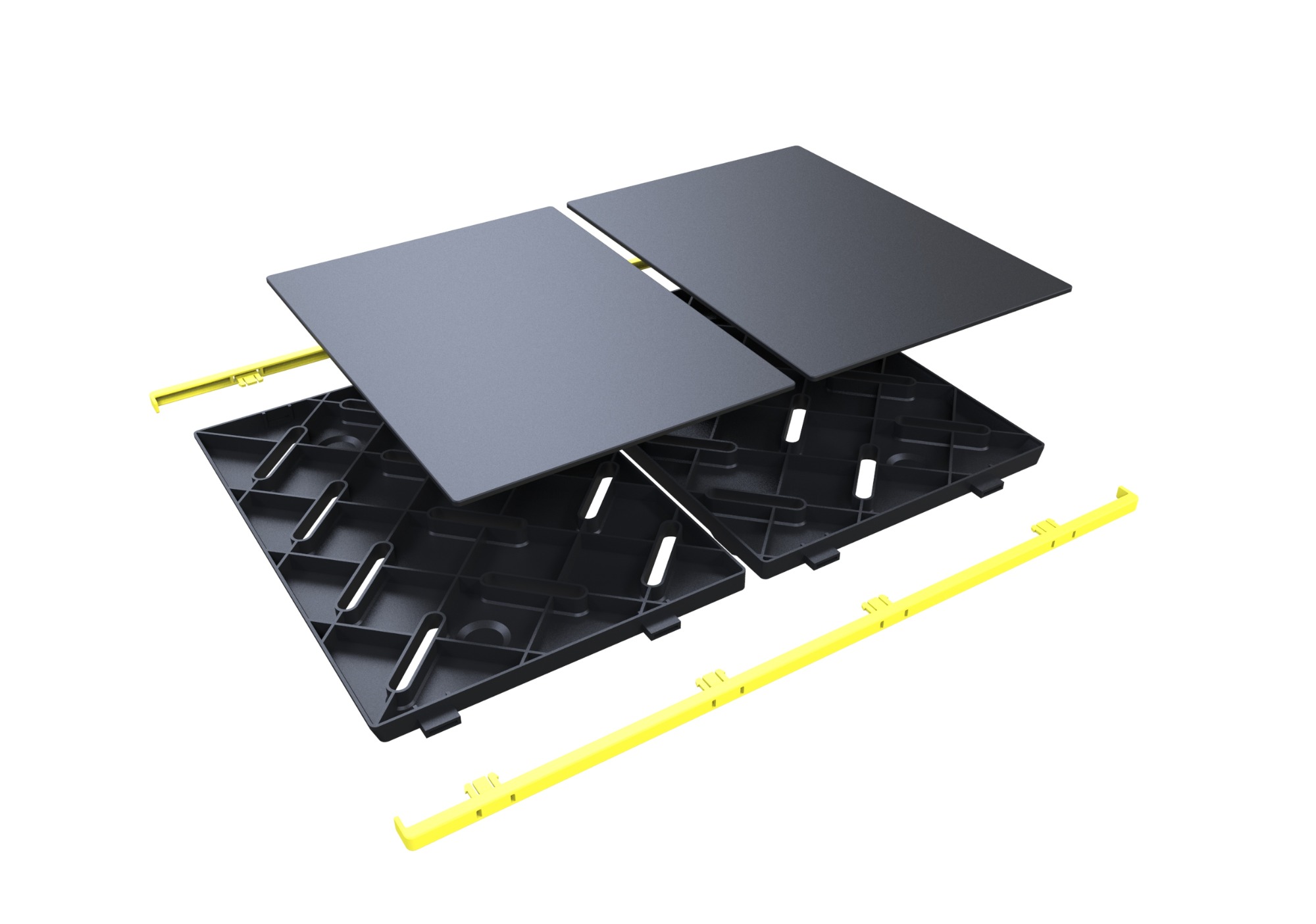

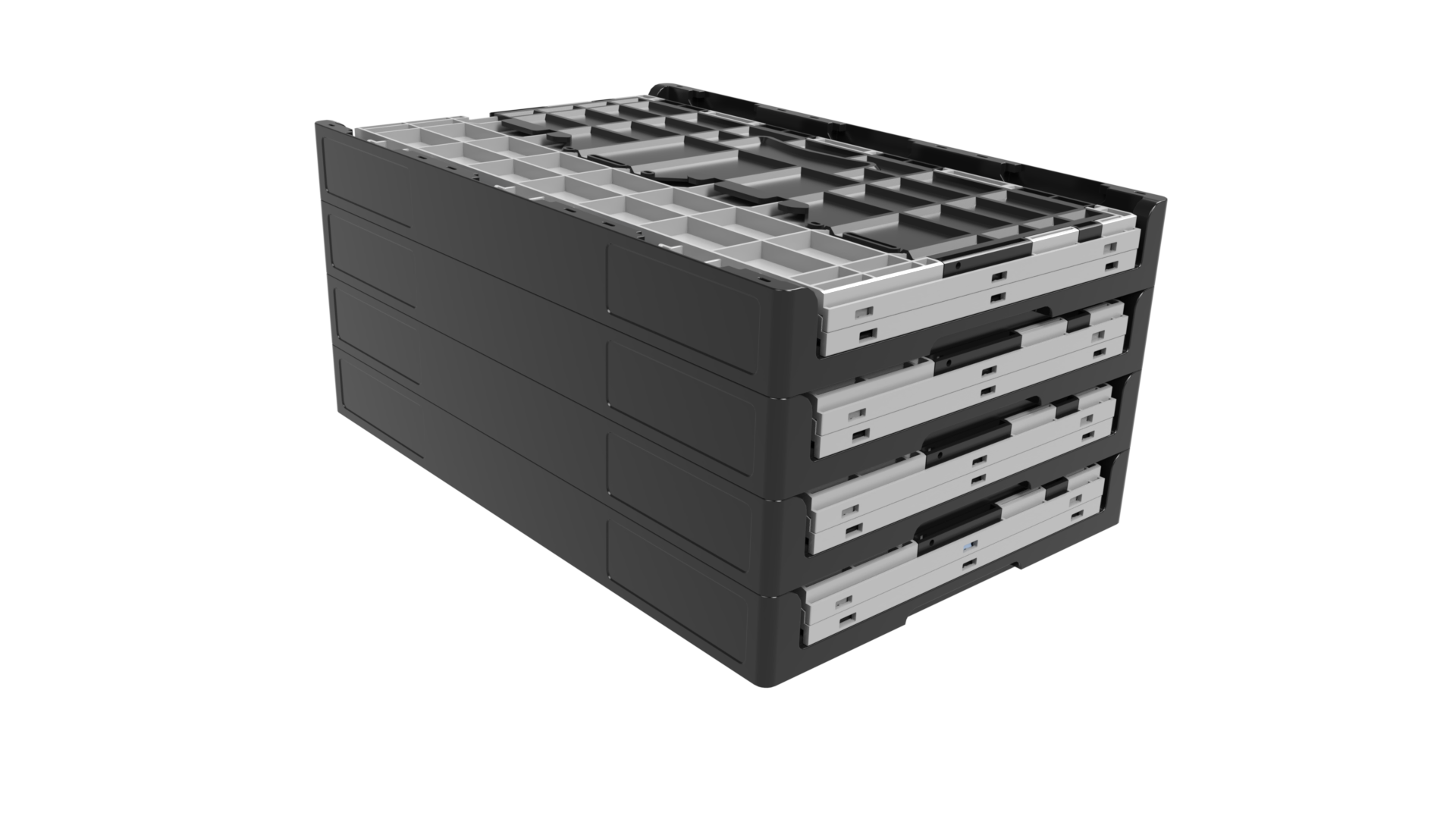

Lifting Base Tote (1)
Below a design of a crate with a lifting base. These type of products are being used by System Integration companies in for example automated DC´s for wharehouses. By adding a lifiting base the content can be loaded an unloaded in a fast and simple way (pushing off to the sides). This product is being developed from the Concept phase to the mould making phase and is currently being mass produced and is the standard solution for every automation project to come for this customer.
- Click on thumbnails for larger images -

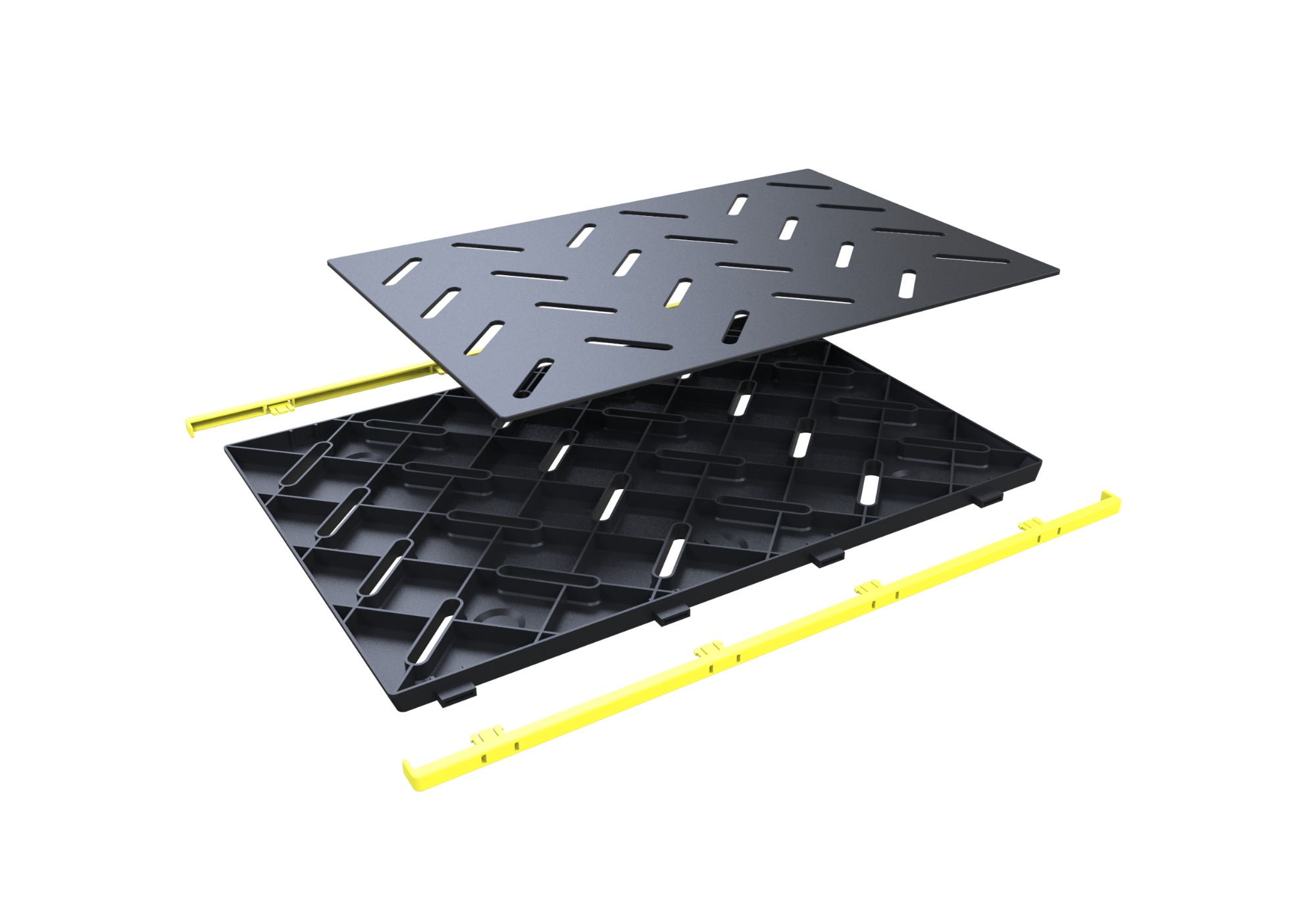

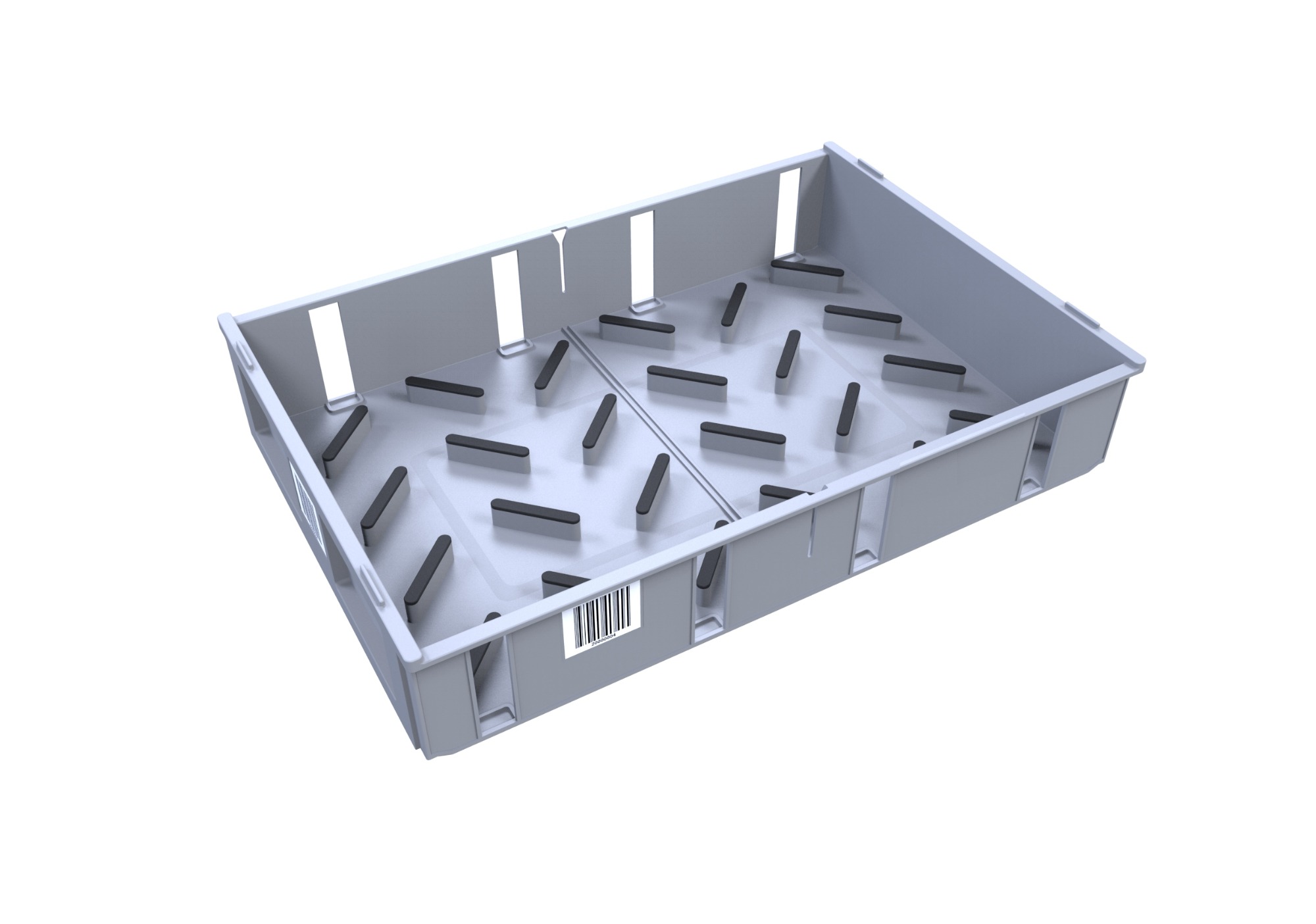

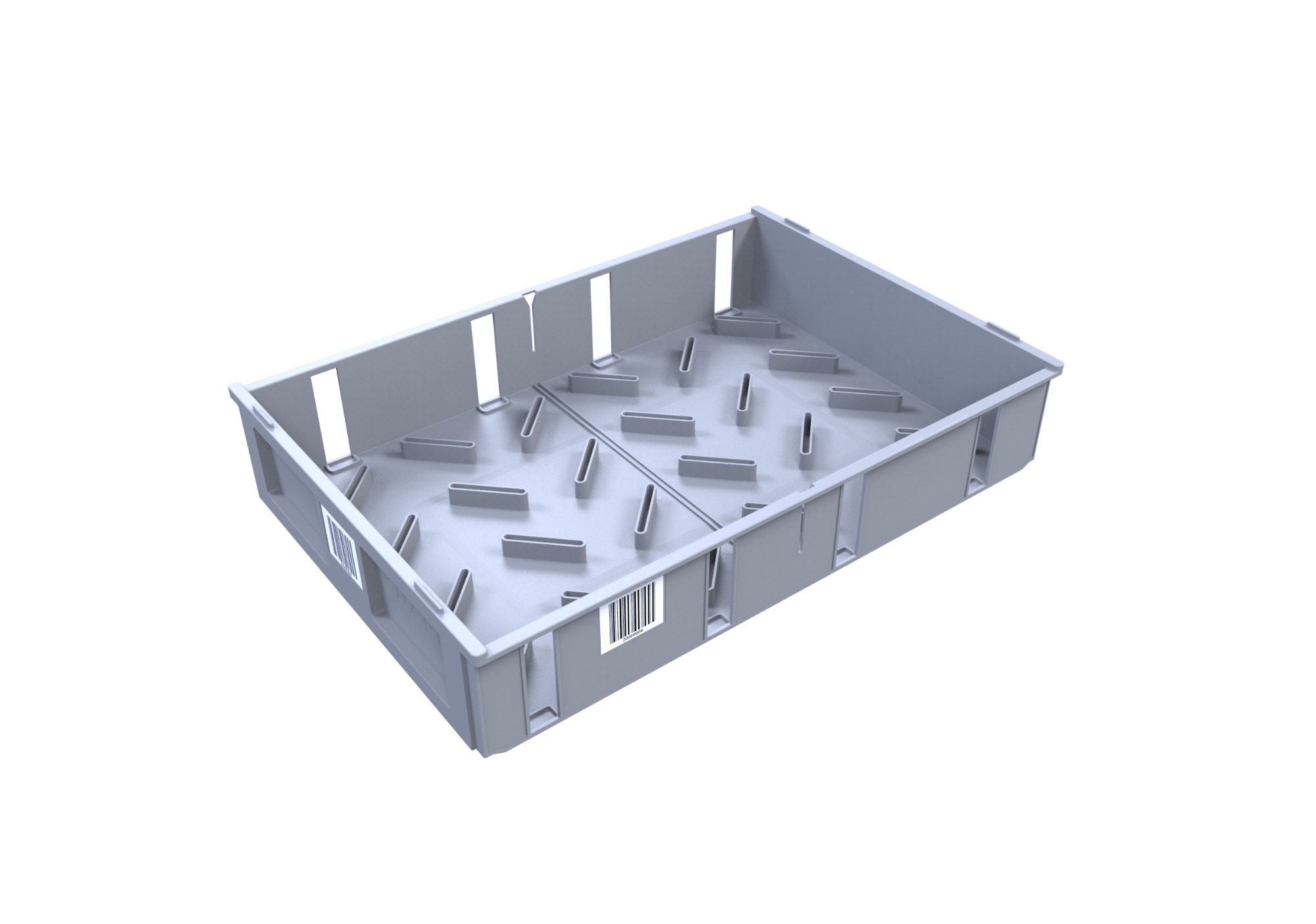

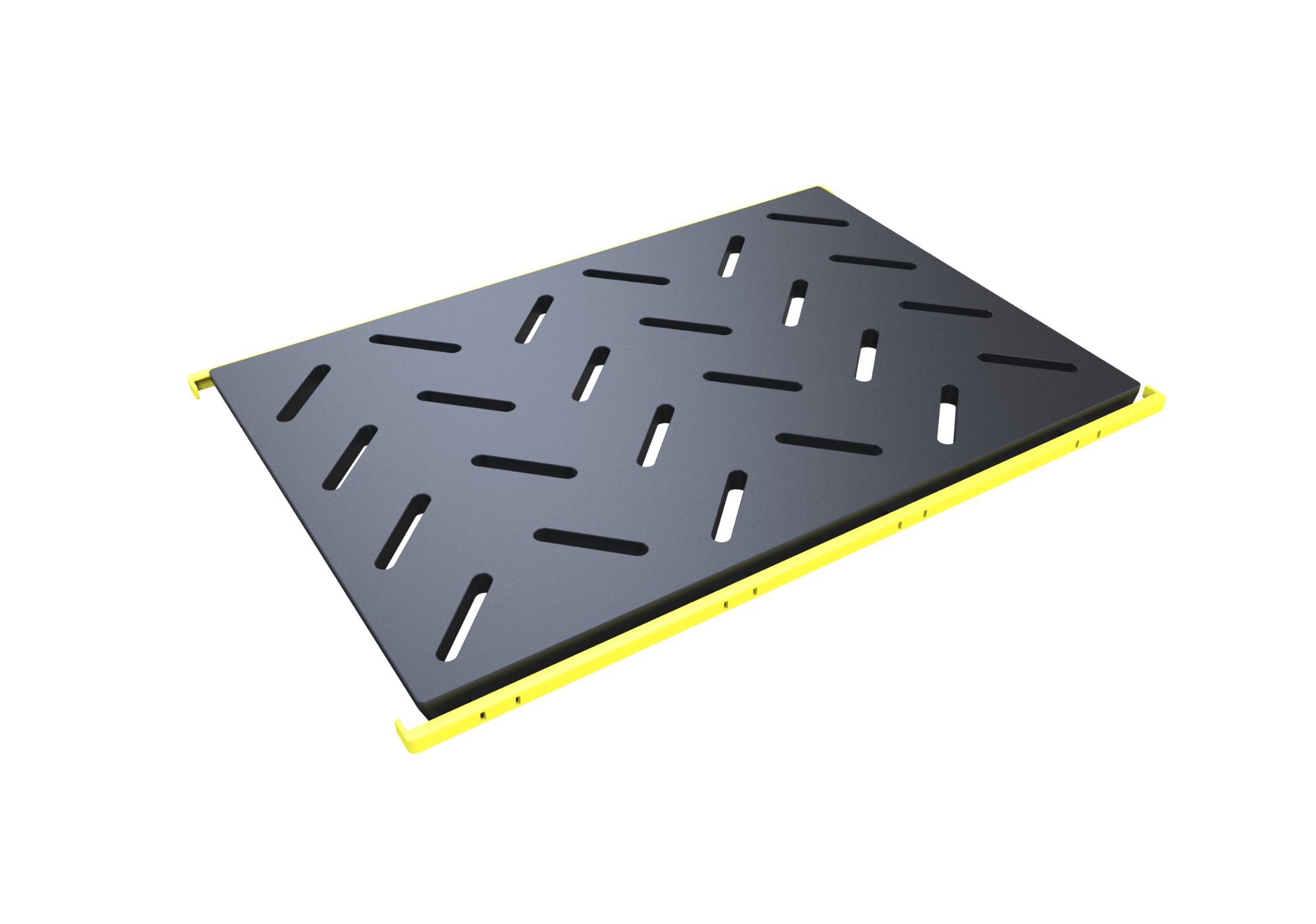

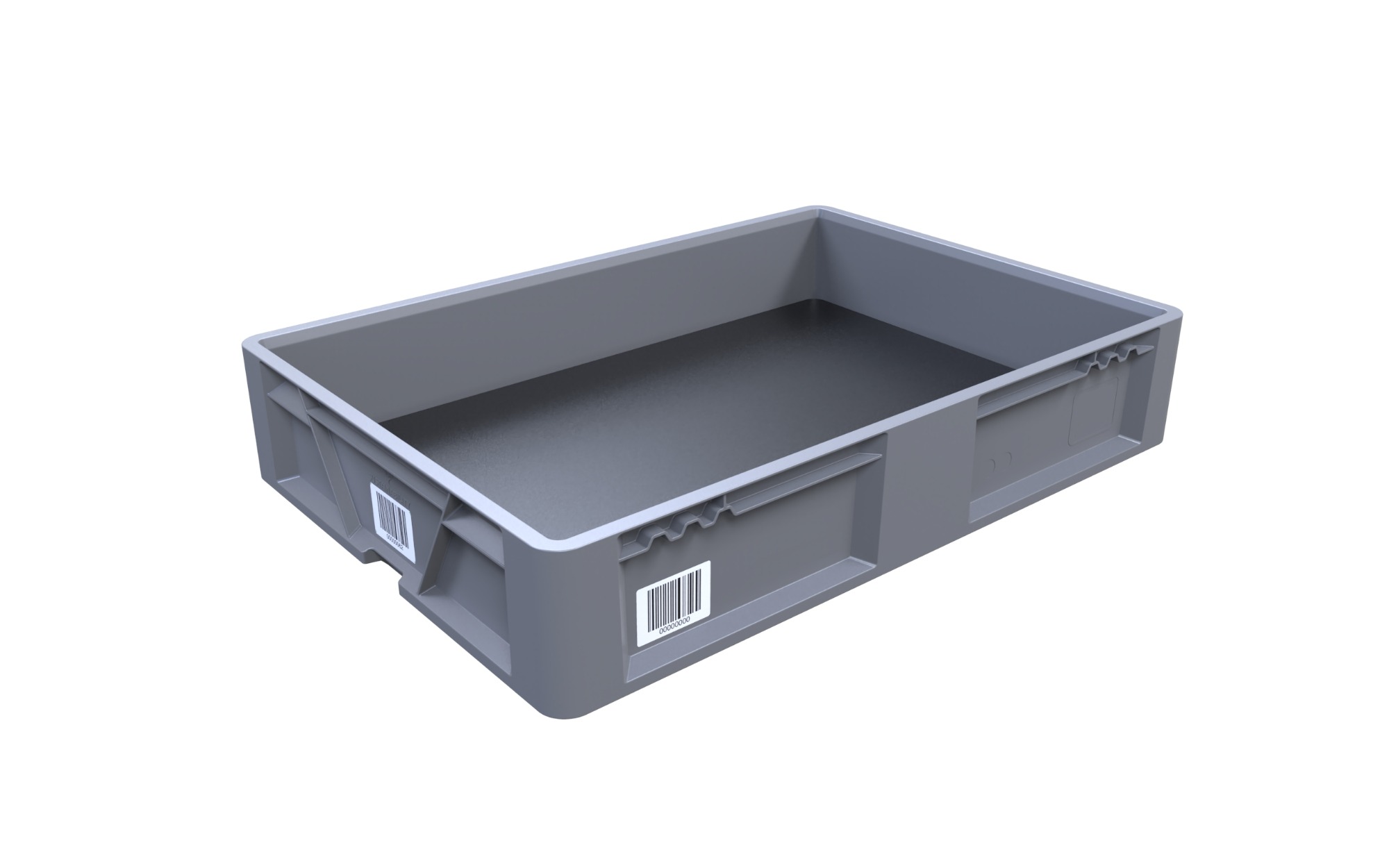

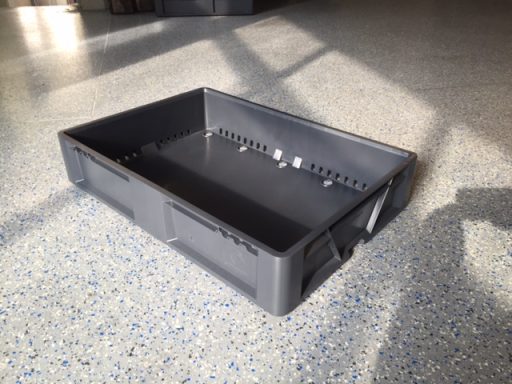

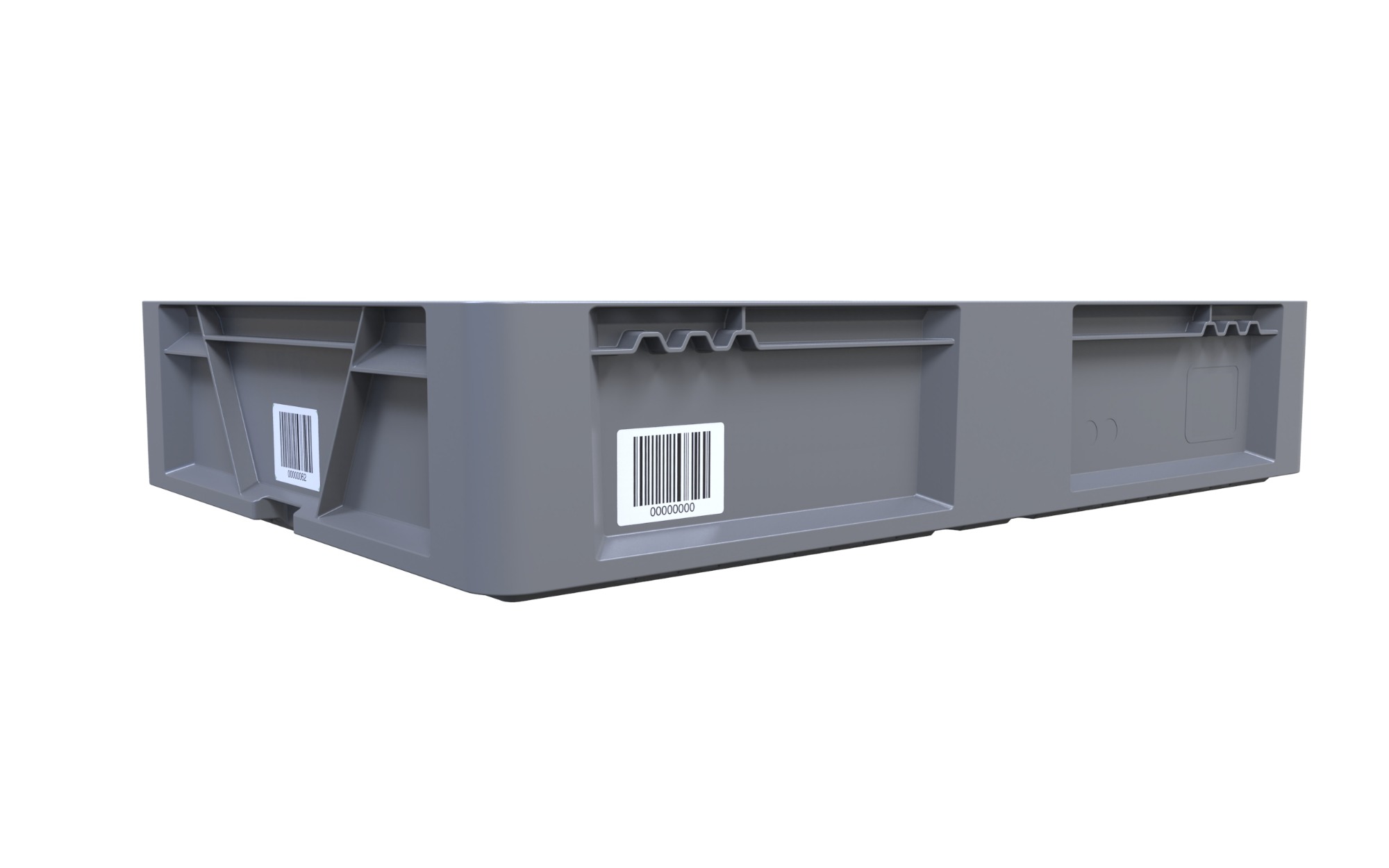

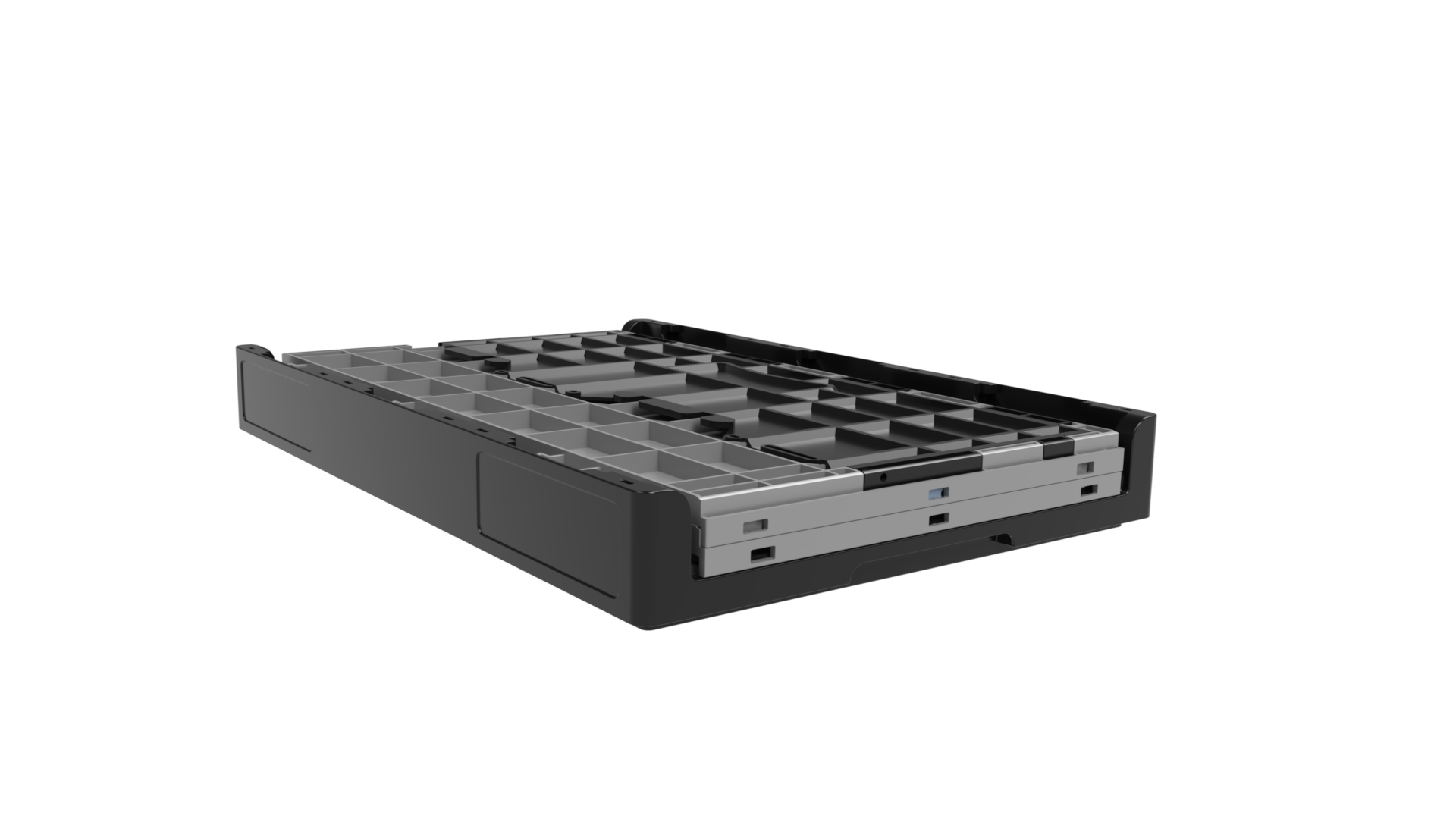

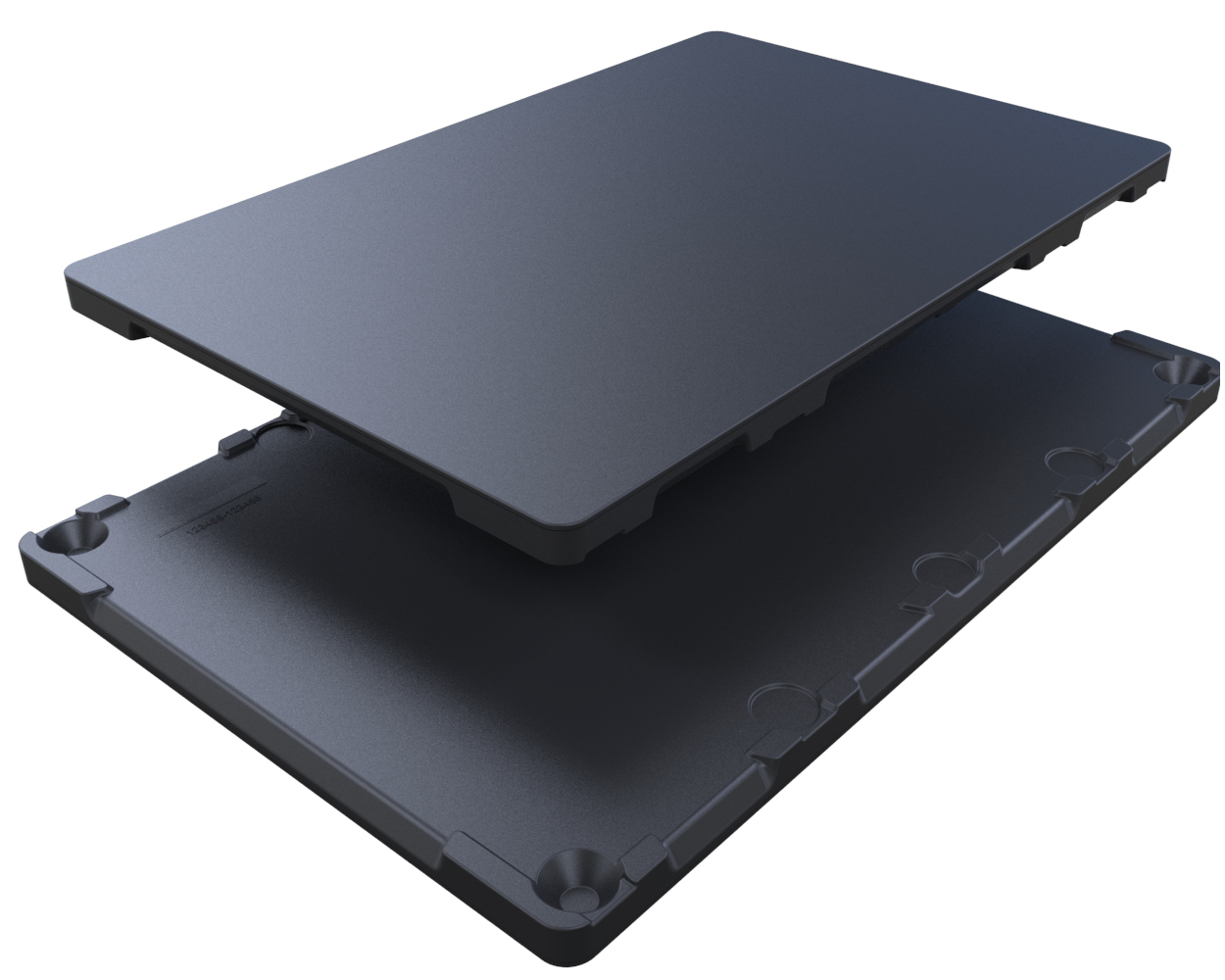

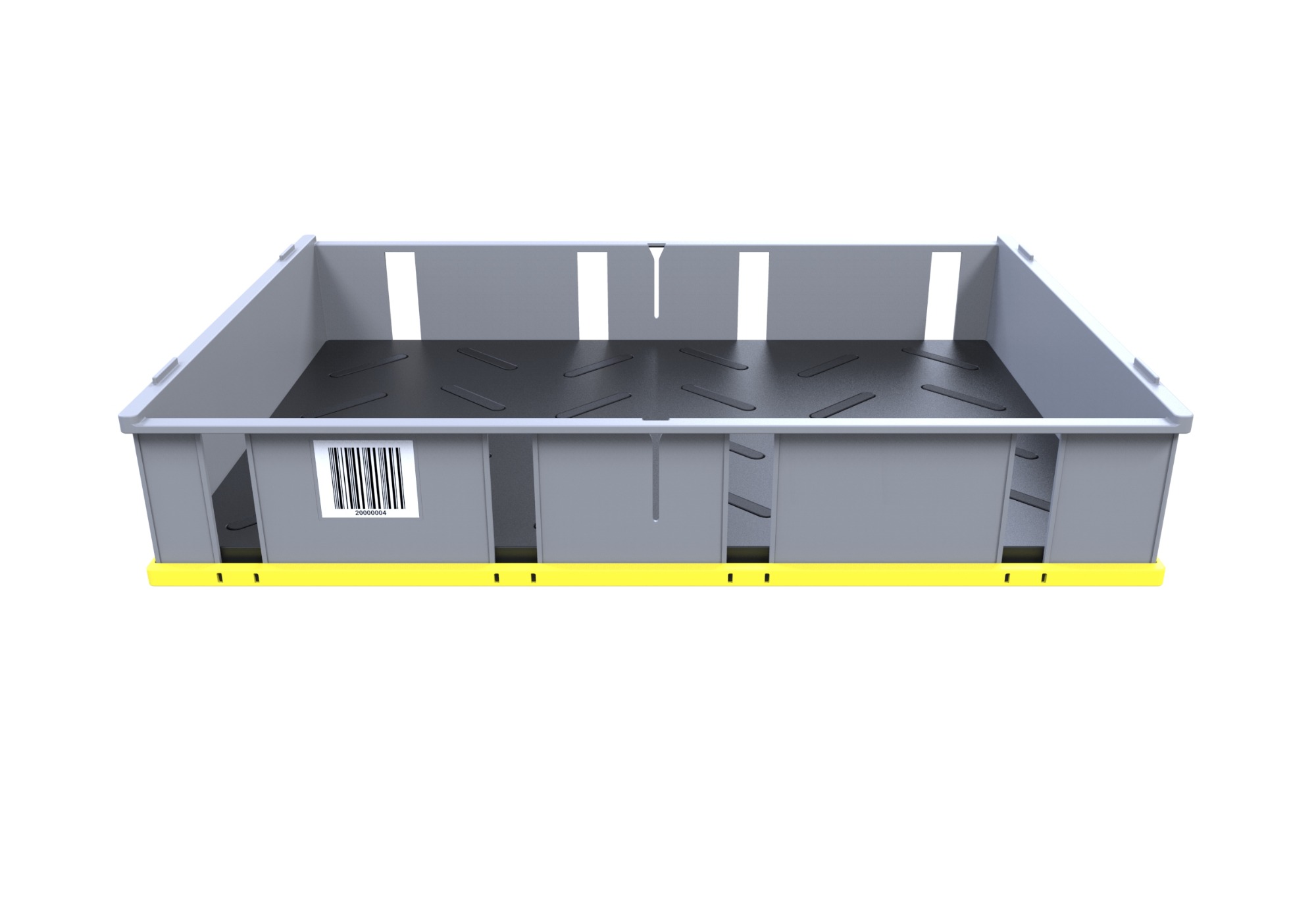

Lifting Base Tote (2)
This is also a Lifting Base Tote but the difference is that in this case the lifting of the base is possible in the flow which means the movement does not need to be stopped as is needed with the product above (lifting done stationary by 6 pins). This product is being developed from the Concept phase to the mould making phase and is currently being mass produced and is the standard solution for every automation project to come for this customer.
- Click on thumbnails for larger images -

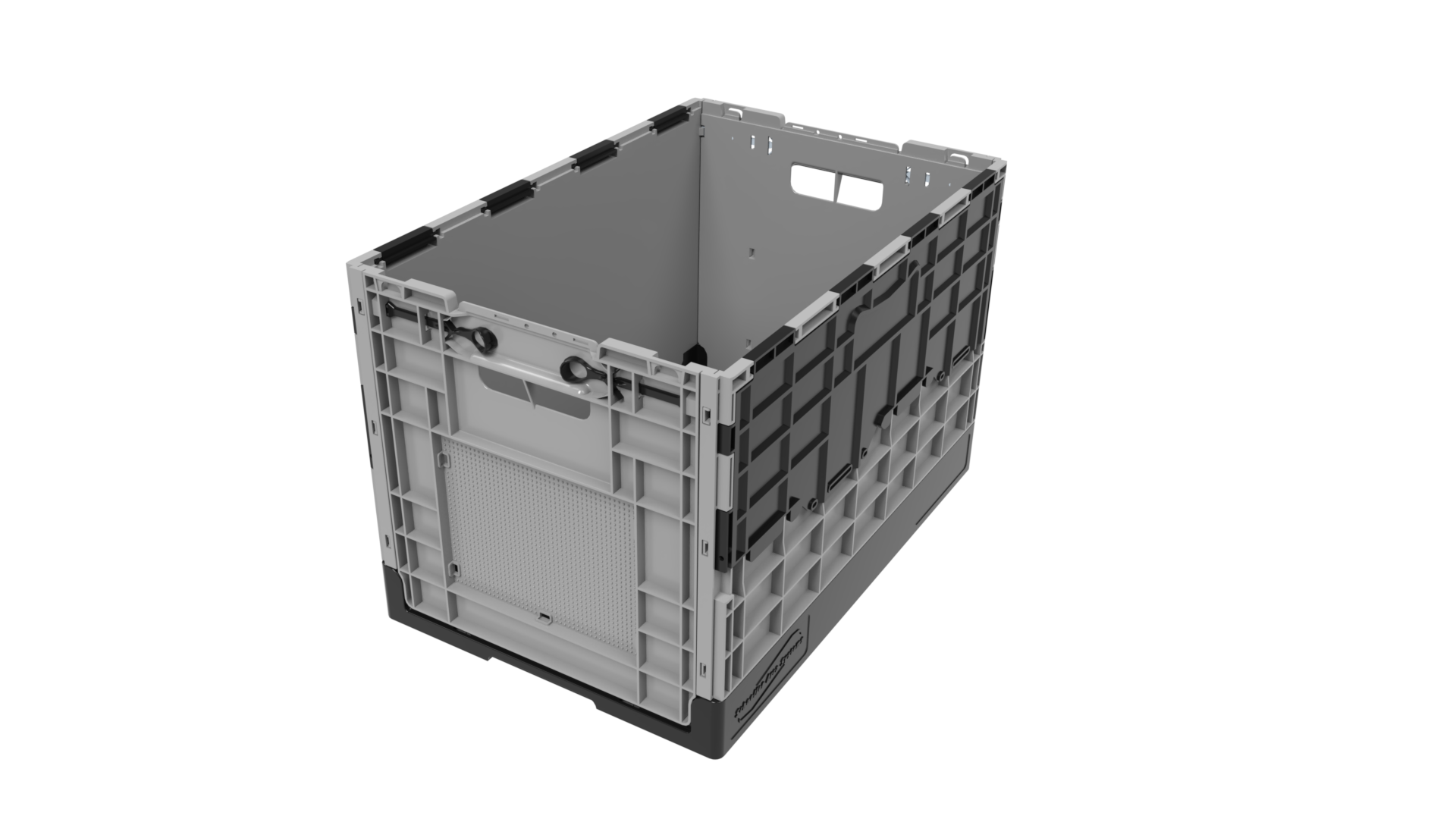

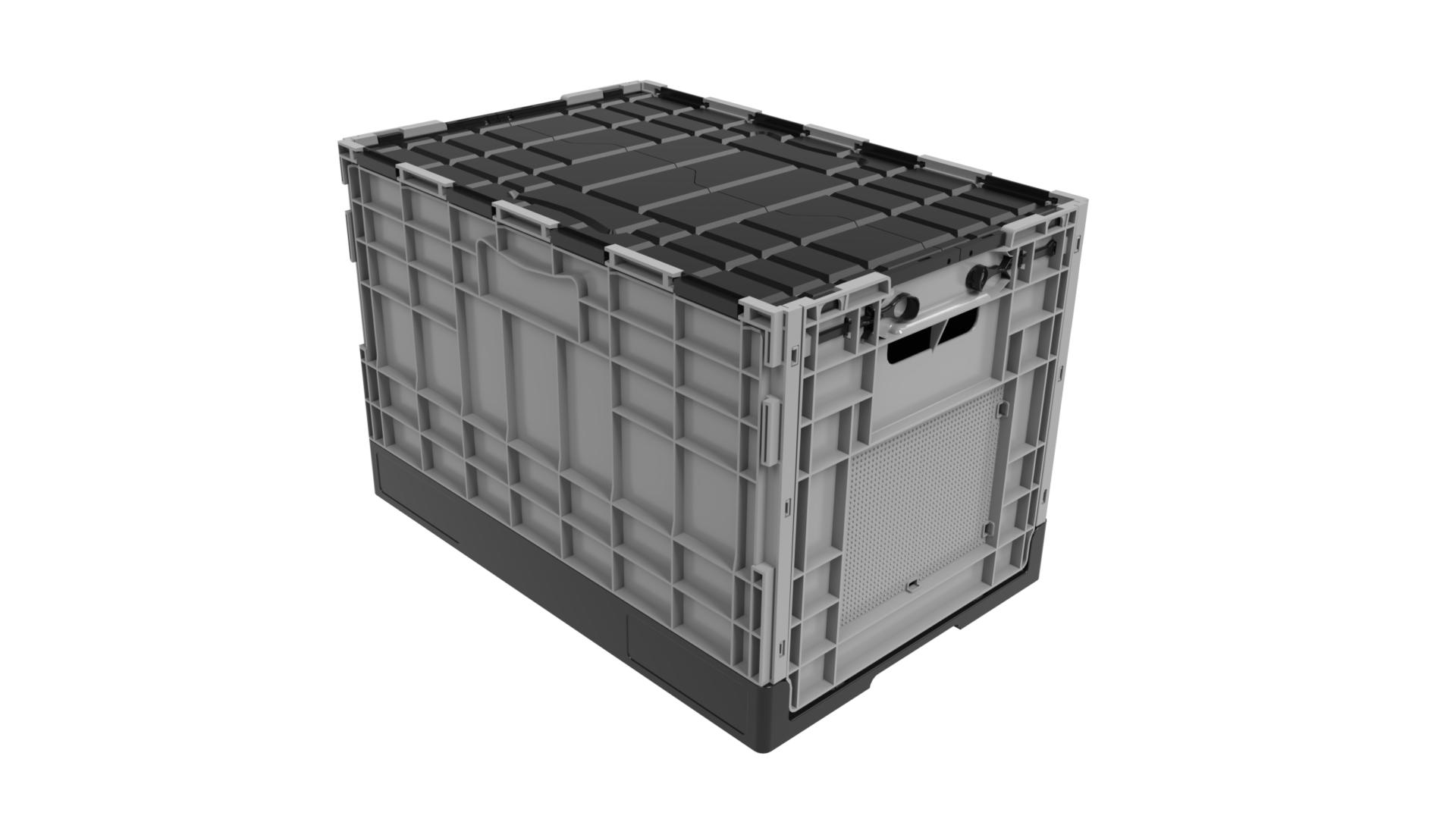

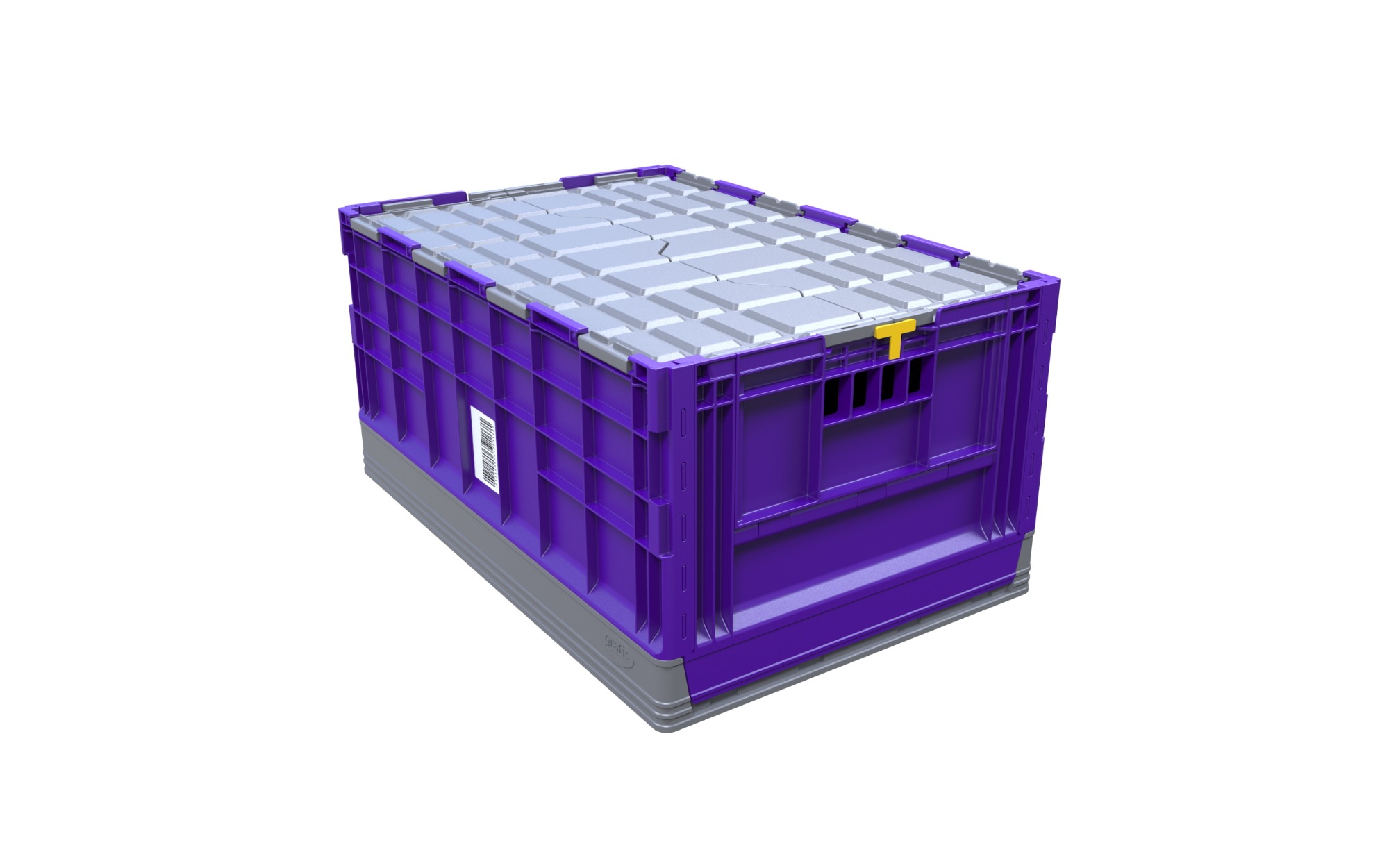

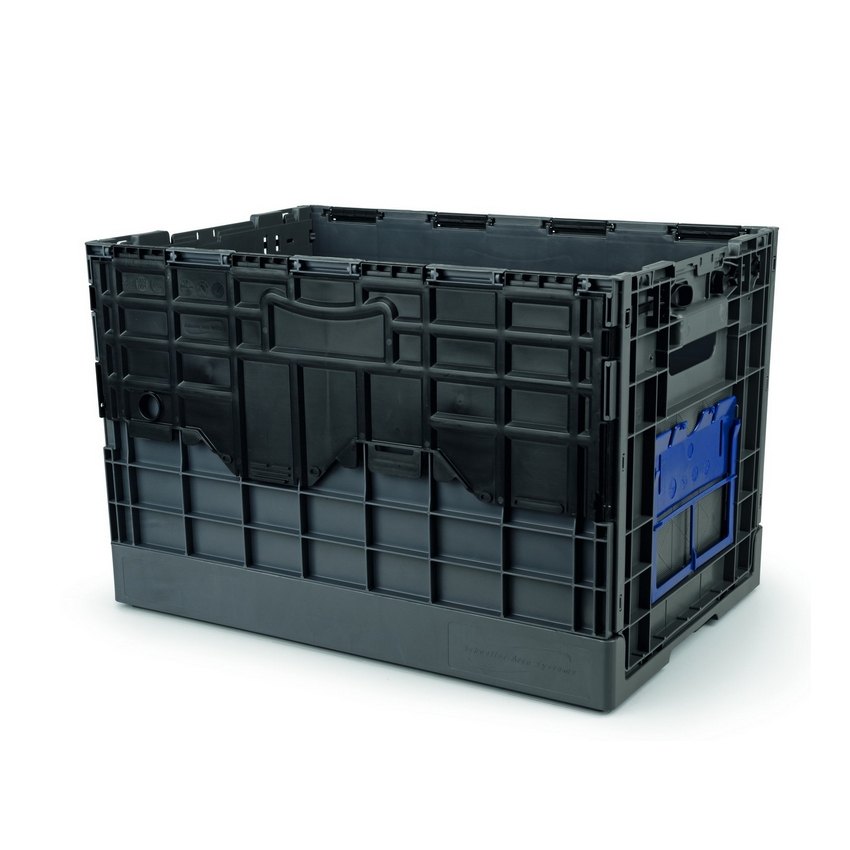

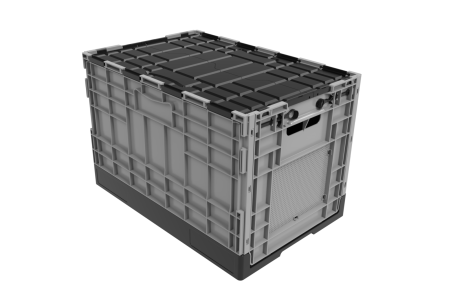

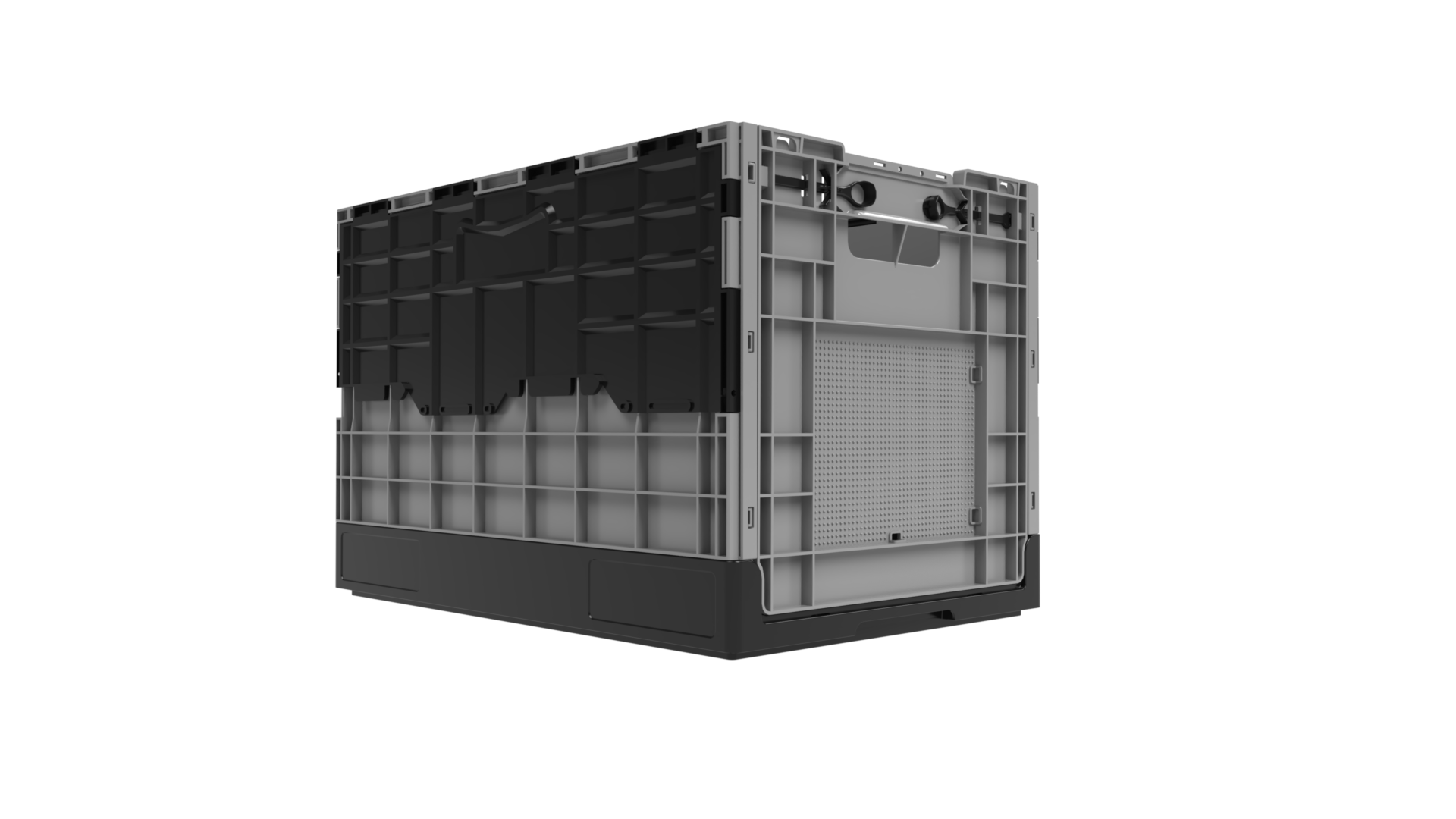

FSC 600 x 400 x400
Because the height of this foldable crate is the same as the width the folding walls will overlap. To overcome a folding/erecting sequence innovative sliding hinges were developed which makes possible that there is no folding sequence anymore. Other special feature of this design is that the lid parts do not stick out when they are in the open position. The lid parts will merge into the side walls.
- Click on thumbnails for larger images -

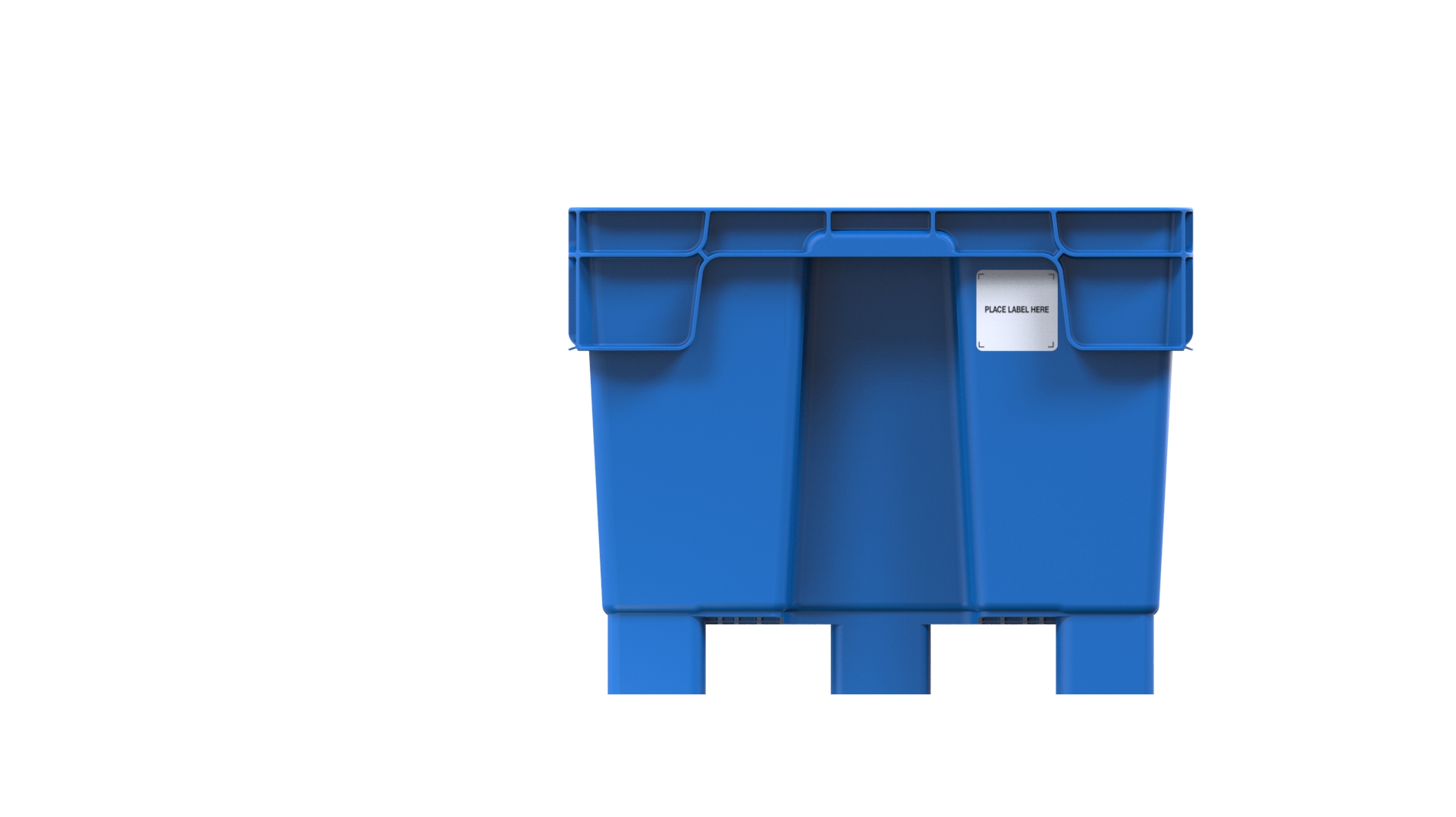

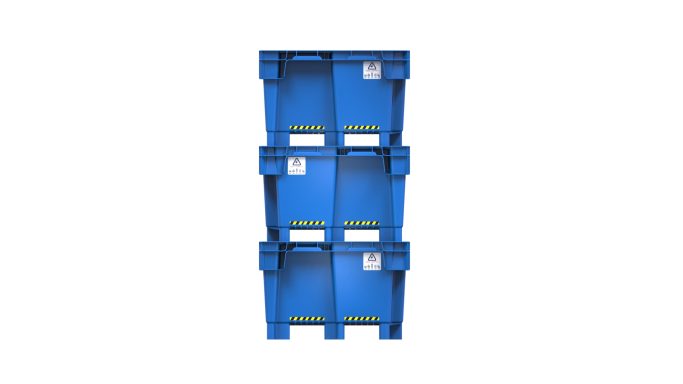

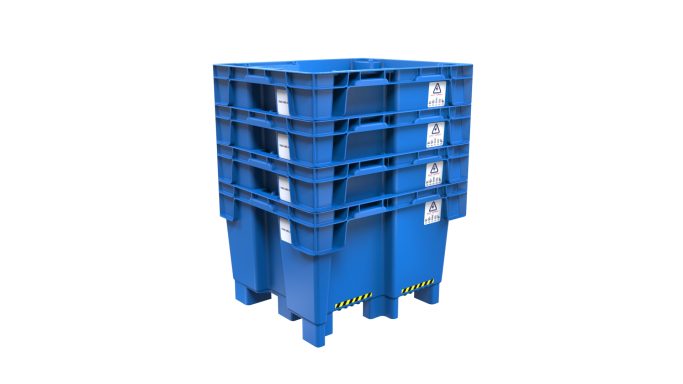

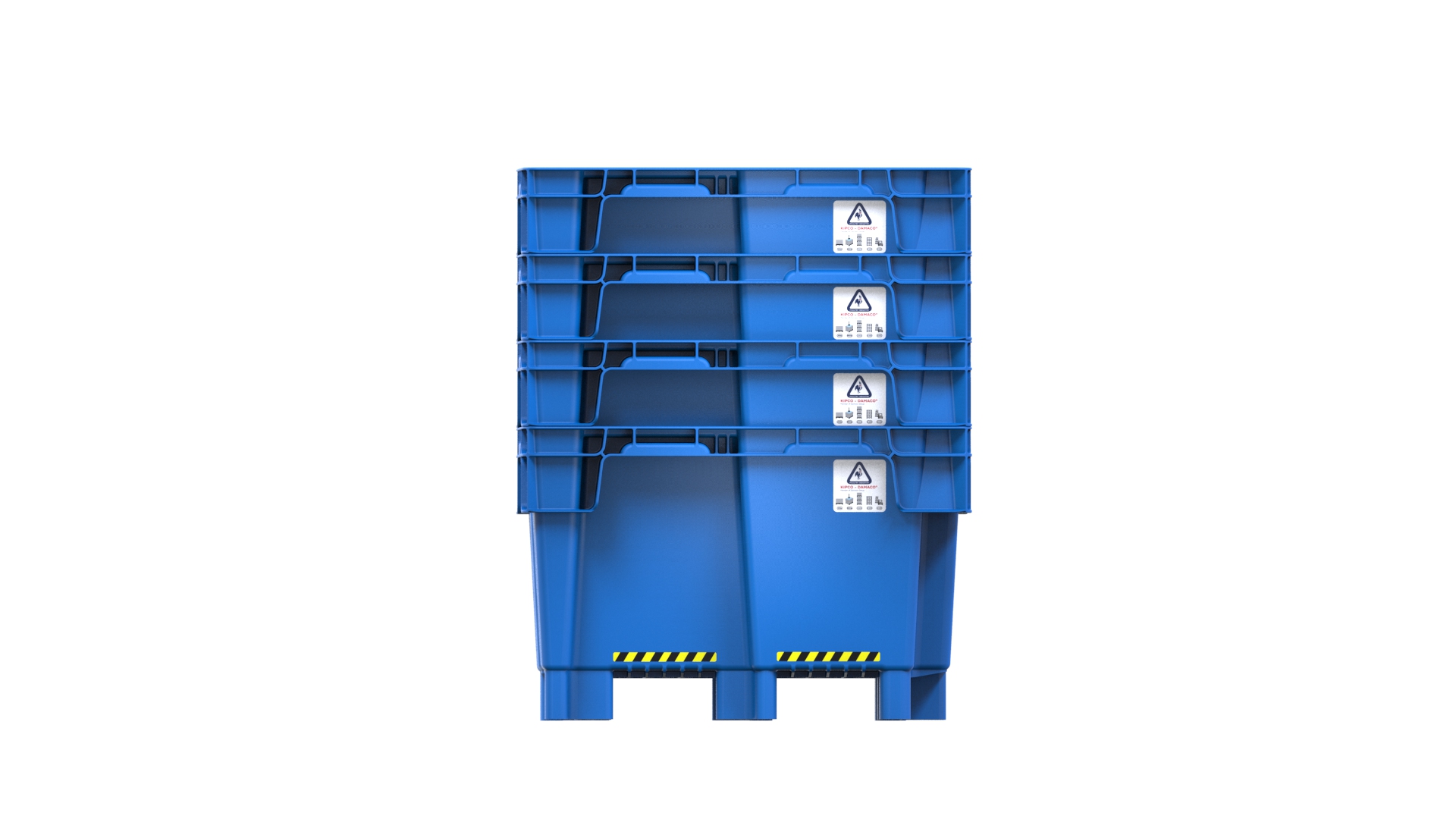

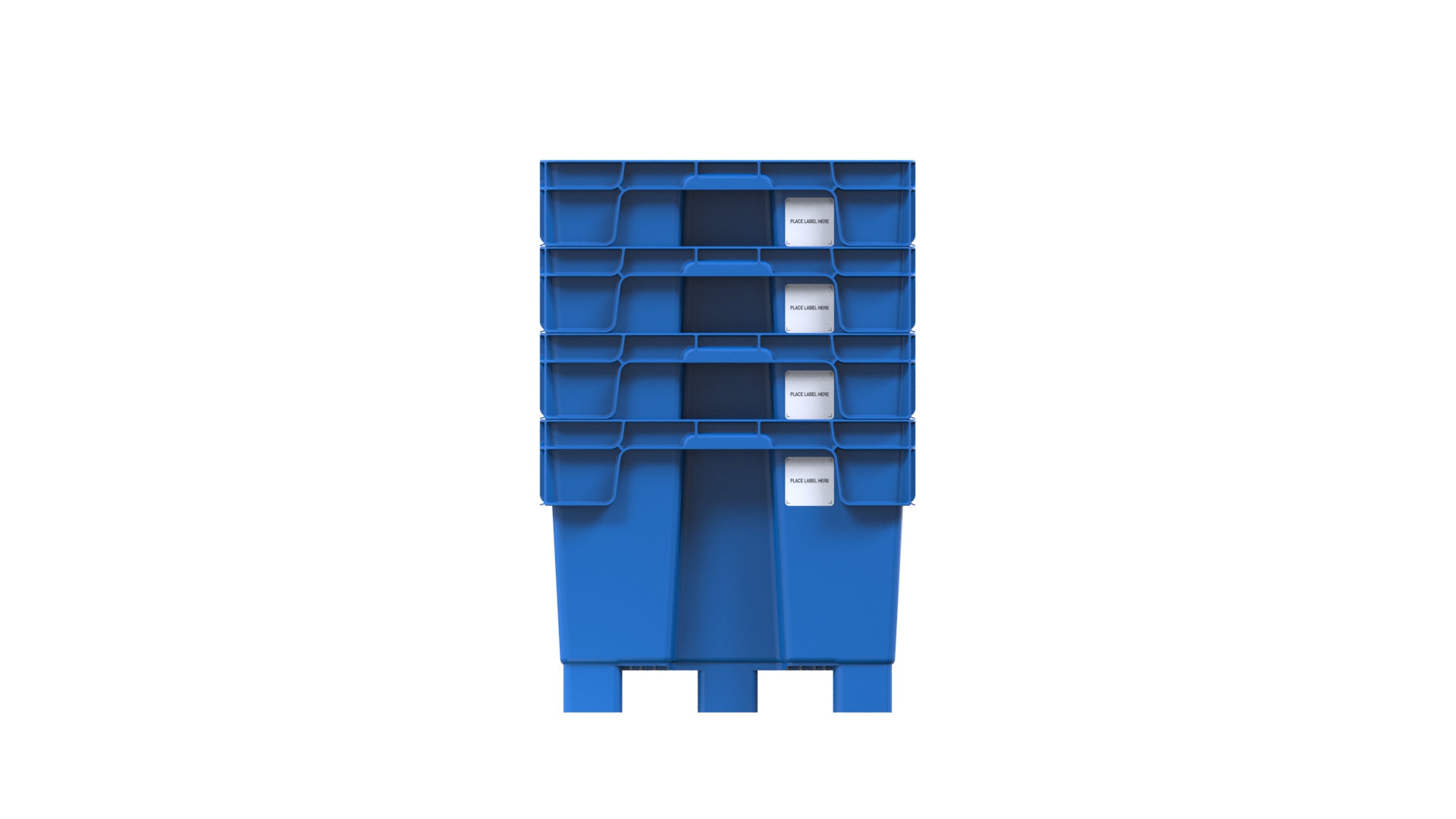

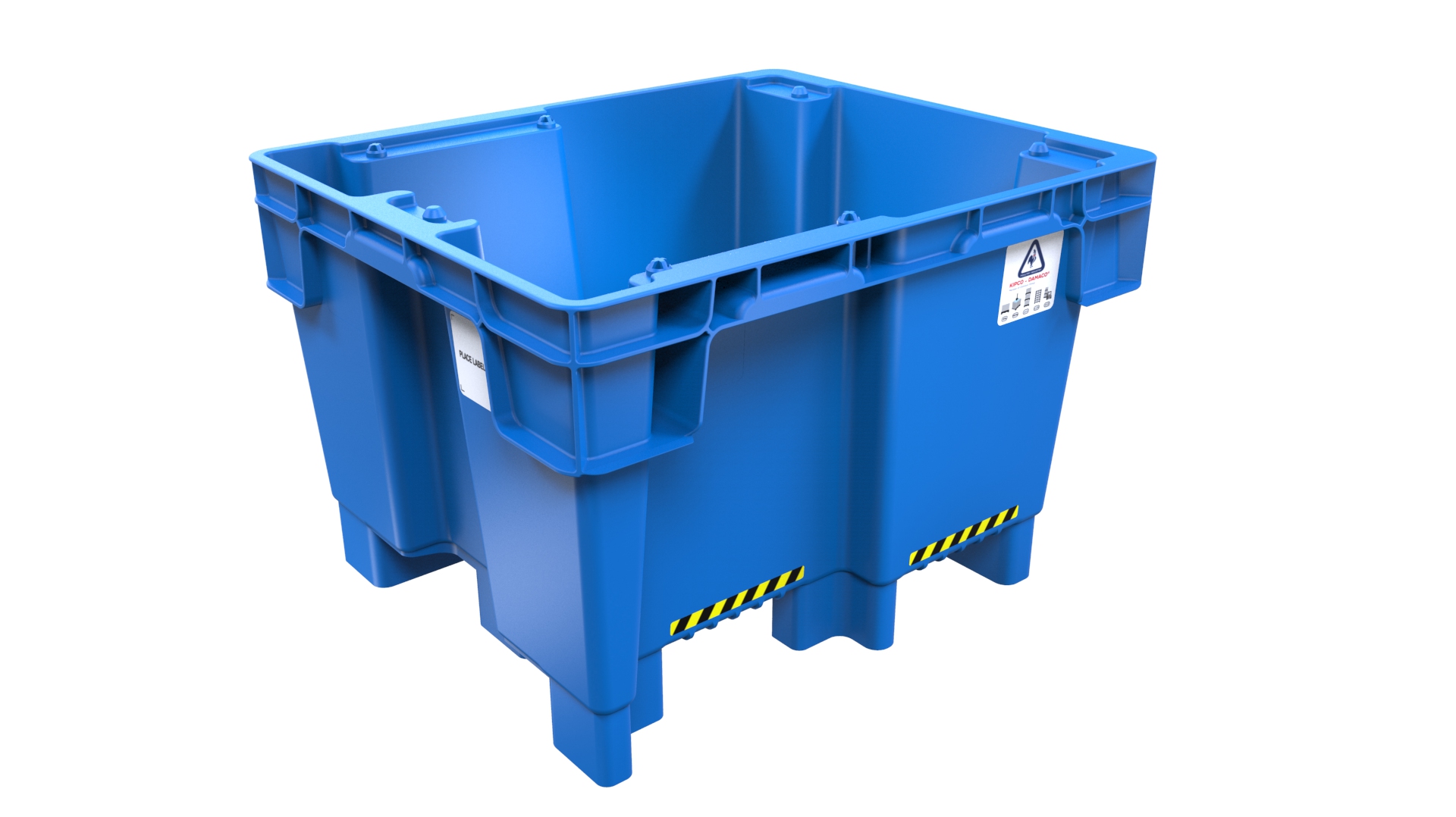

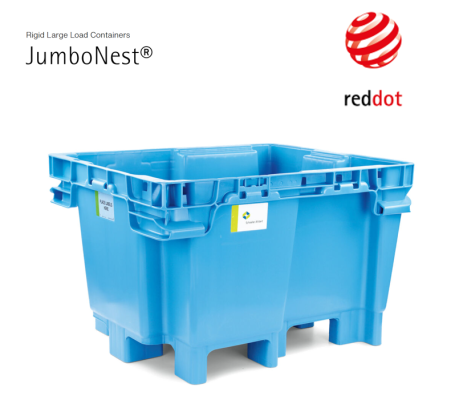

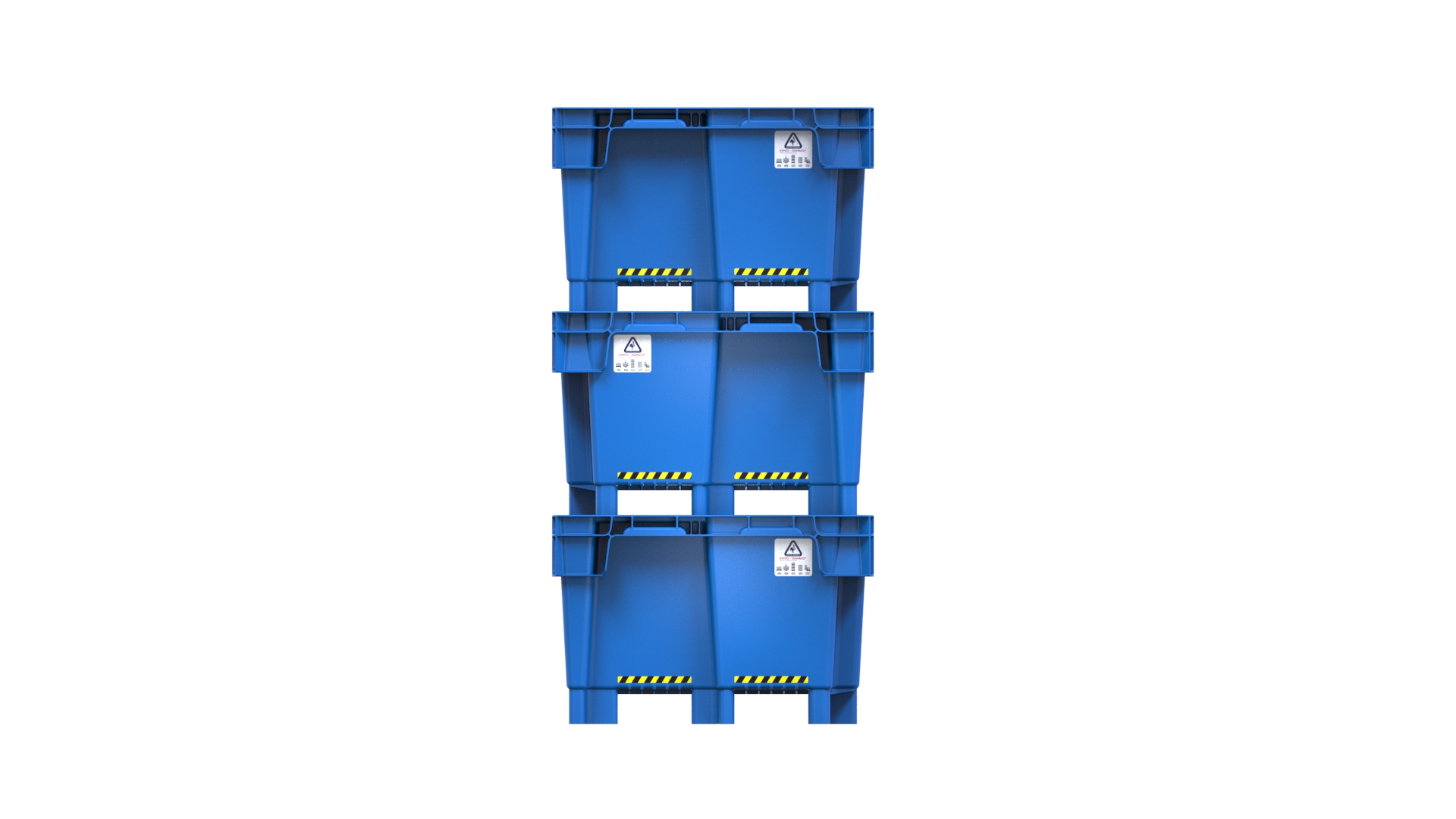

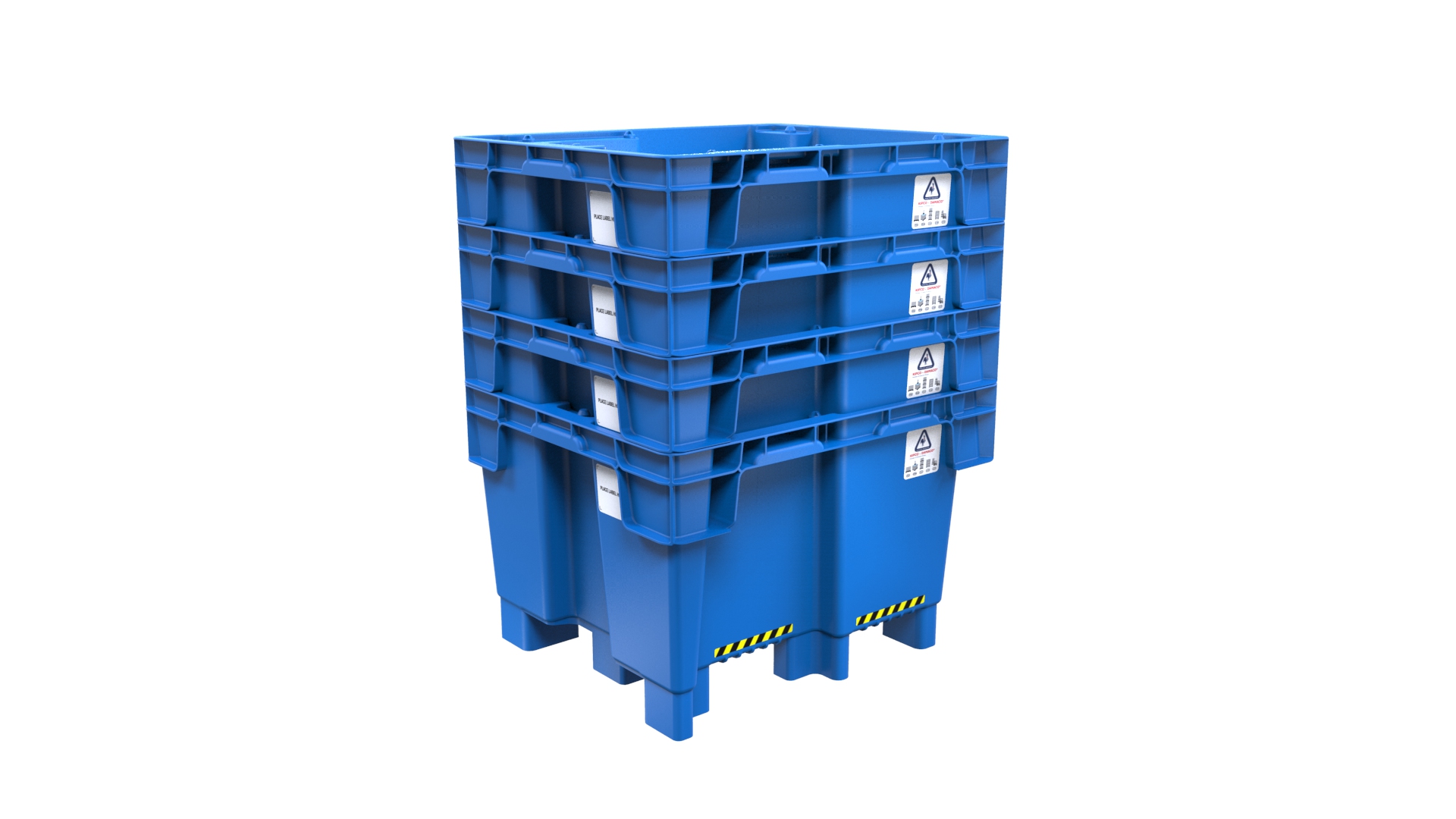

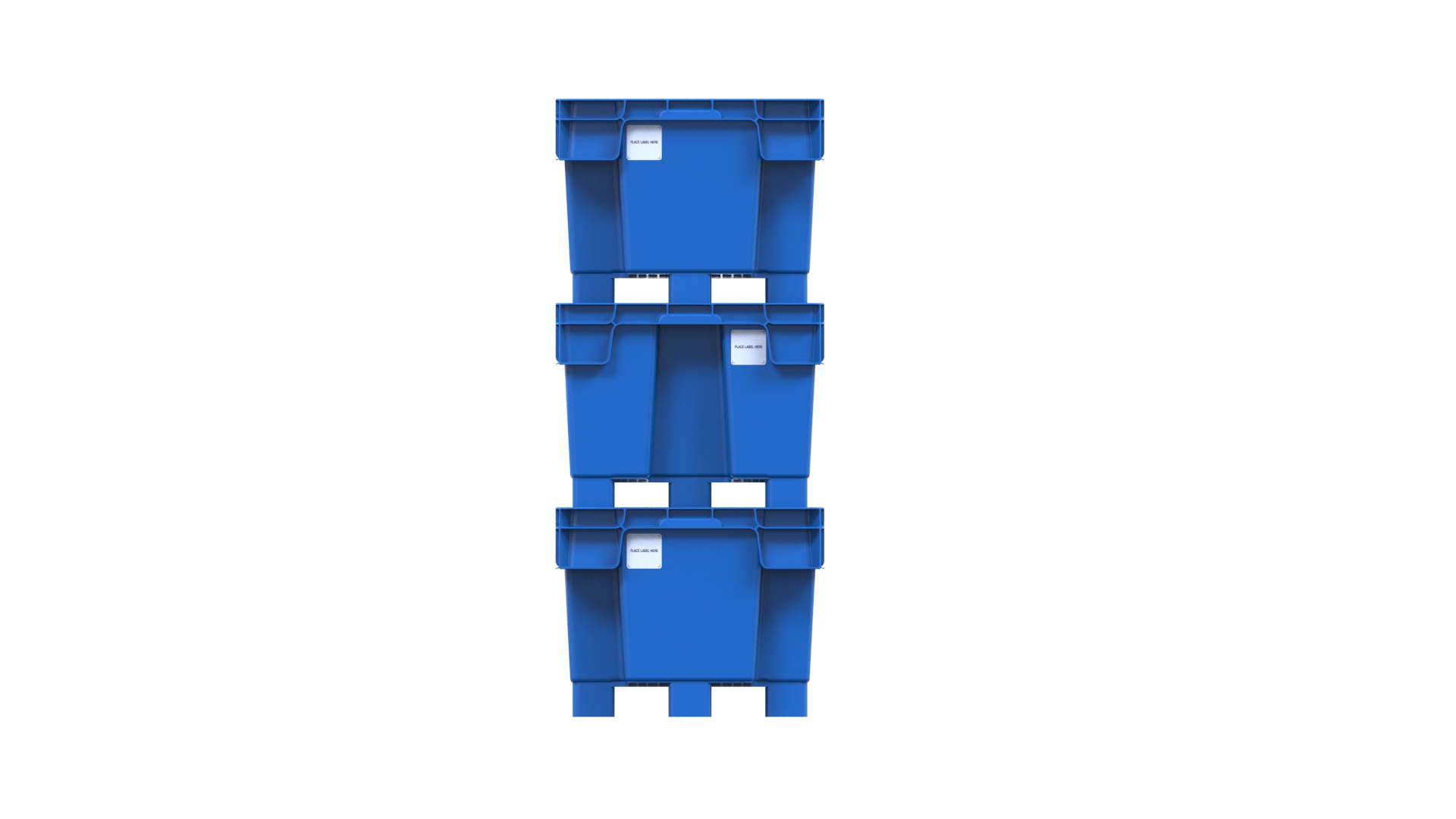

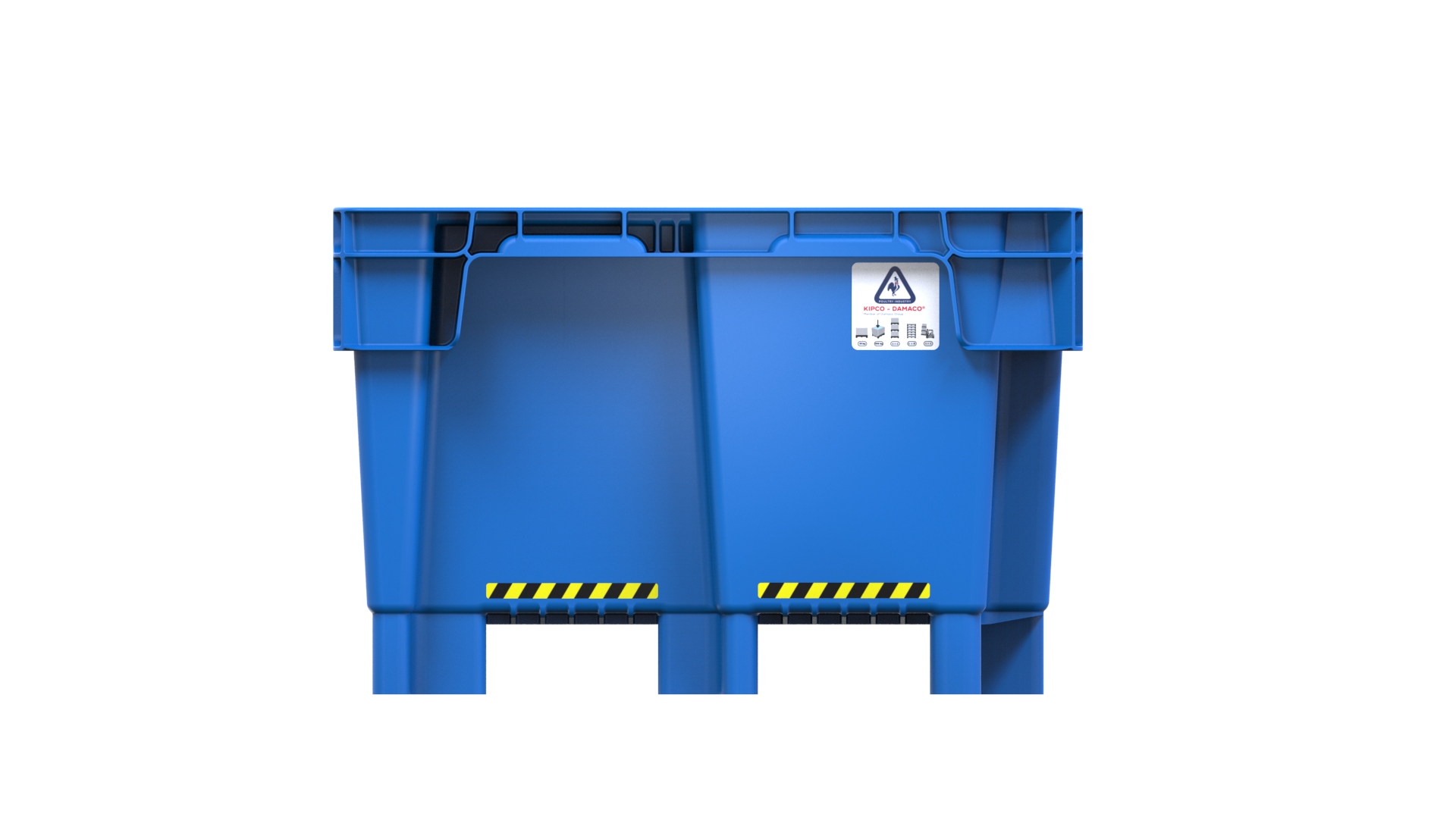

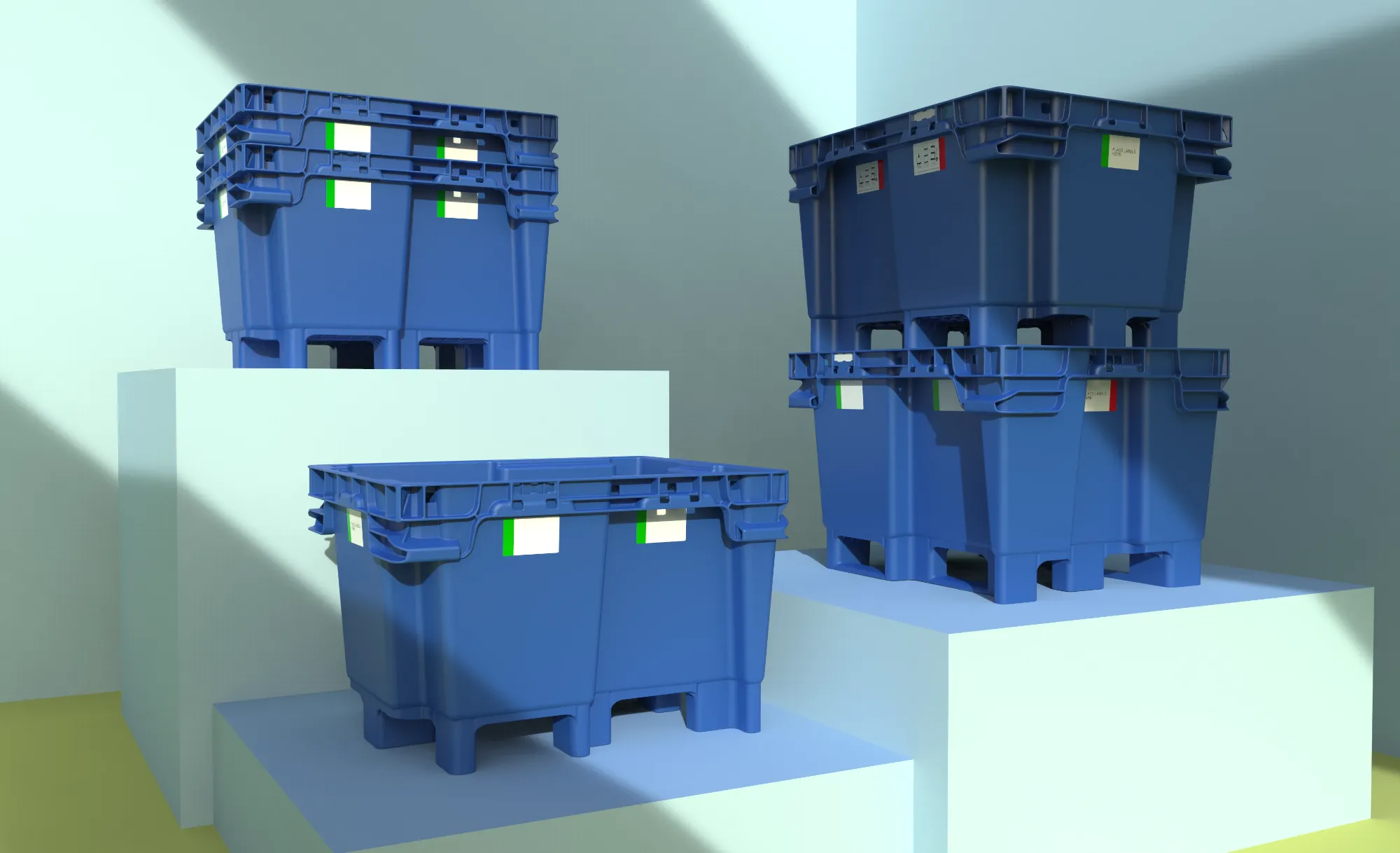

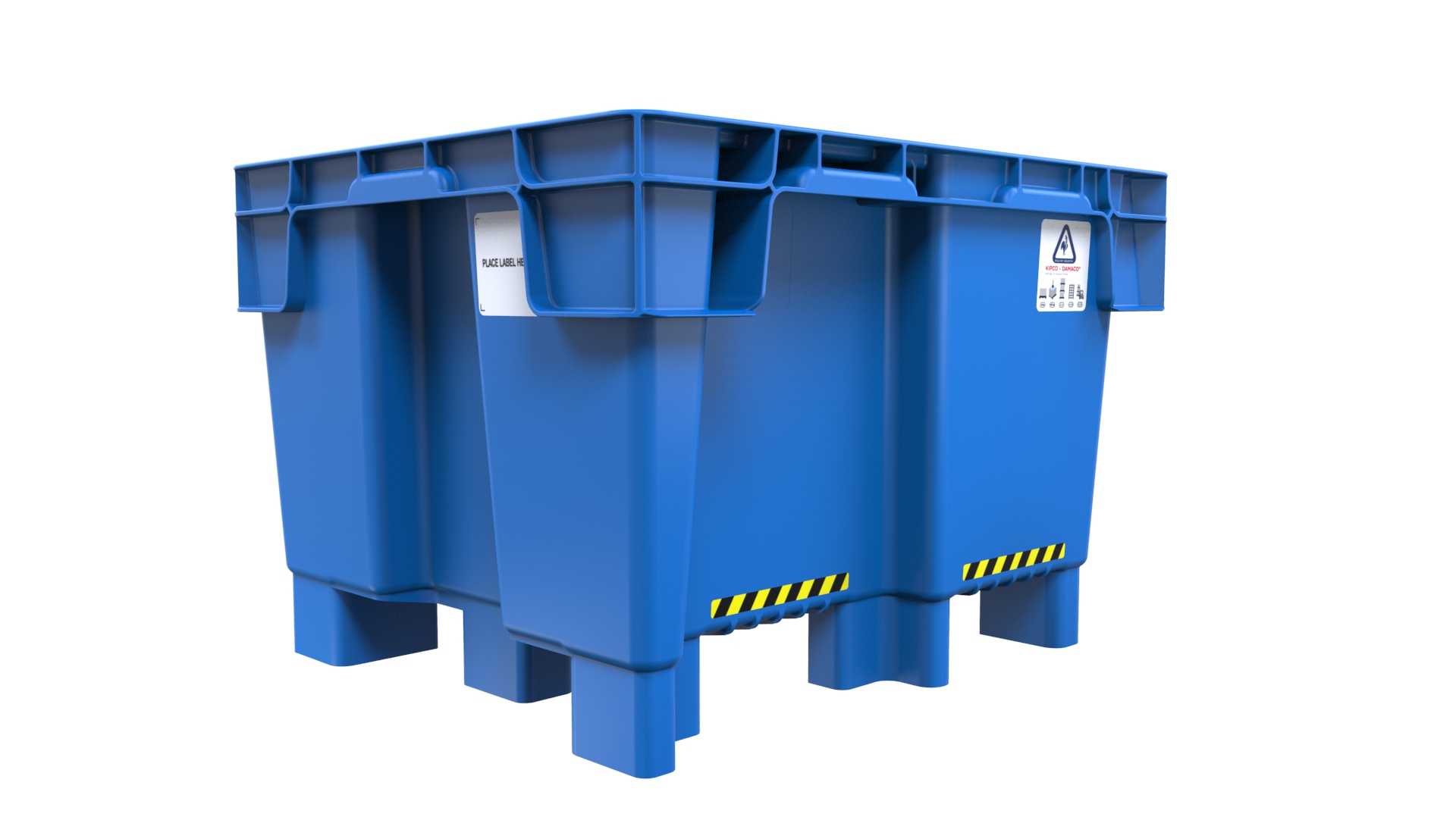

Jumbo Nest
Juryrapport Reddot Design Award:
About JumboNest®
JumboNest is the manufacturer’s new generation of rigid large load containers for the food market. The spacious containers have a 1,200 × 1,000 mm footprint and a capacity of 525 litres. Constructed from a single piece of high-density plastic they are extremely robust and, with their smooth surfaces, also very hygienic. Thanks to the special shape, the containers may also be stacked so efficiently that they improve vehicle loading by 250 per cent when transported empty. The conical shape also improves the flow of cold air between stacks. No lids are required when the containers are stacked.
Statement by the Jury.
With their optimised form, the JumboNest large load containers save a lot of space when stacked, which makes them very efficient.
- Click on thumbnails for larger images -

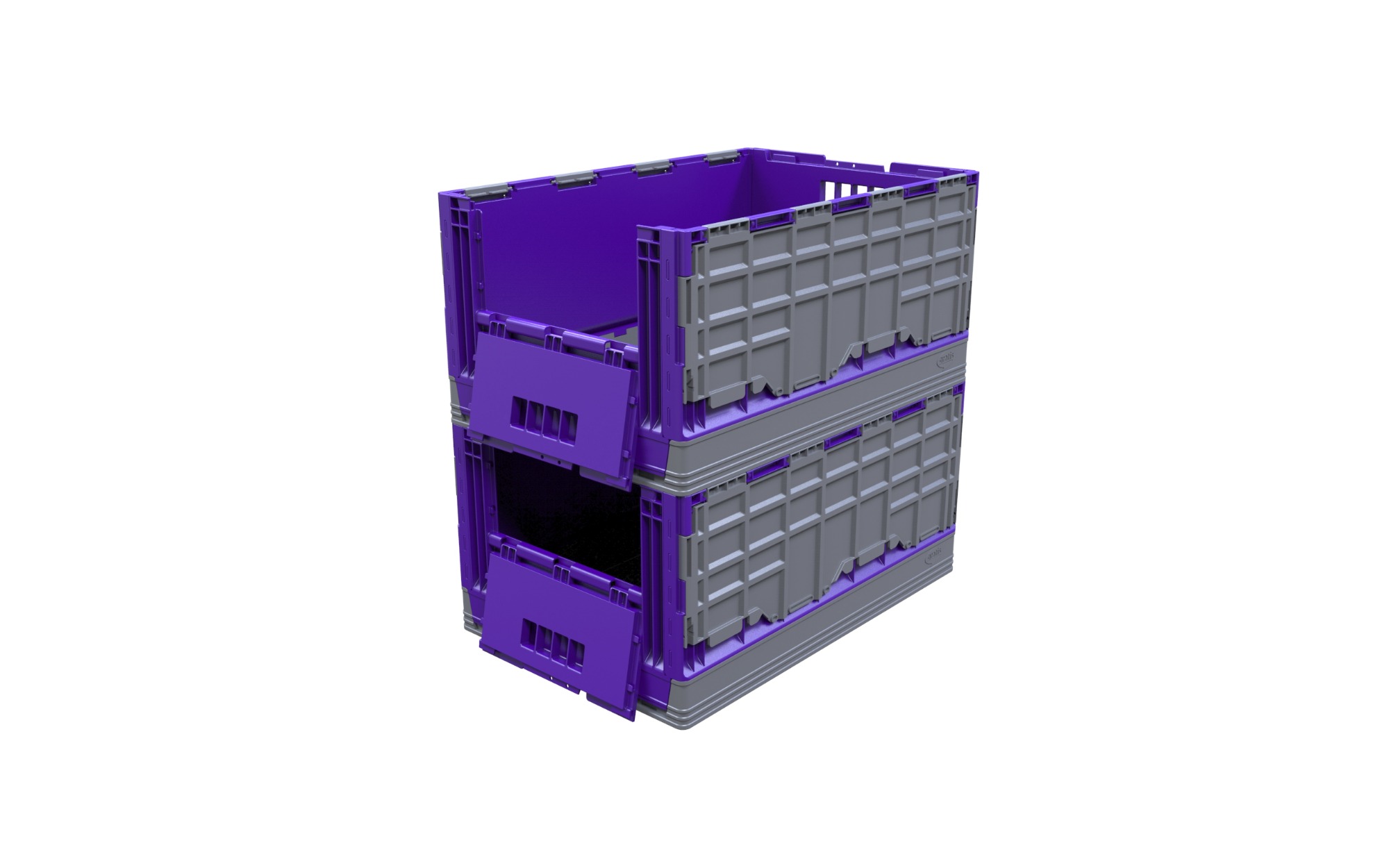

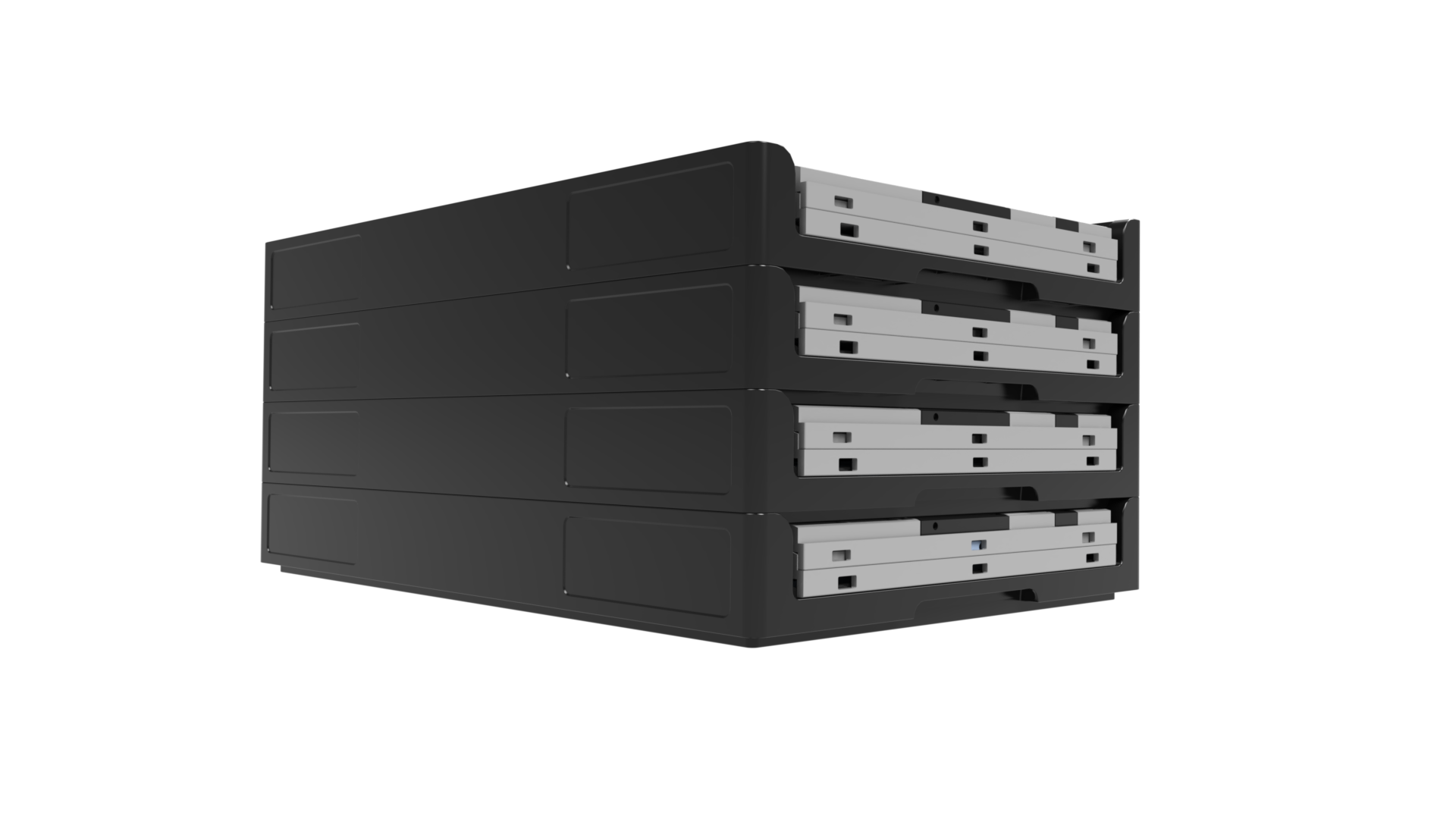

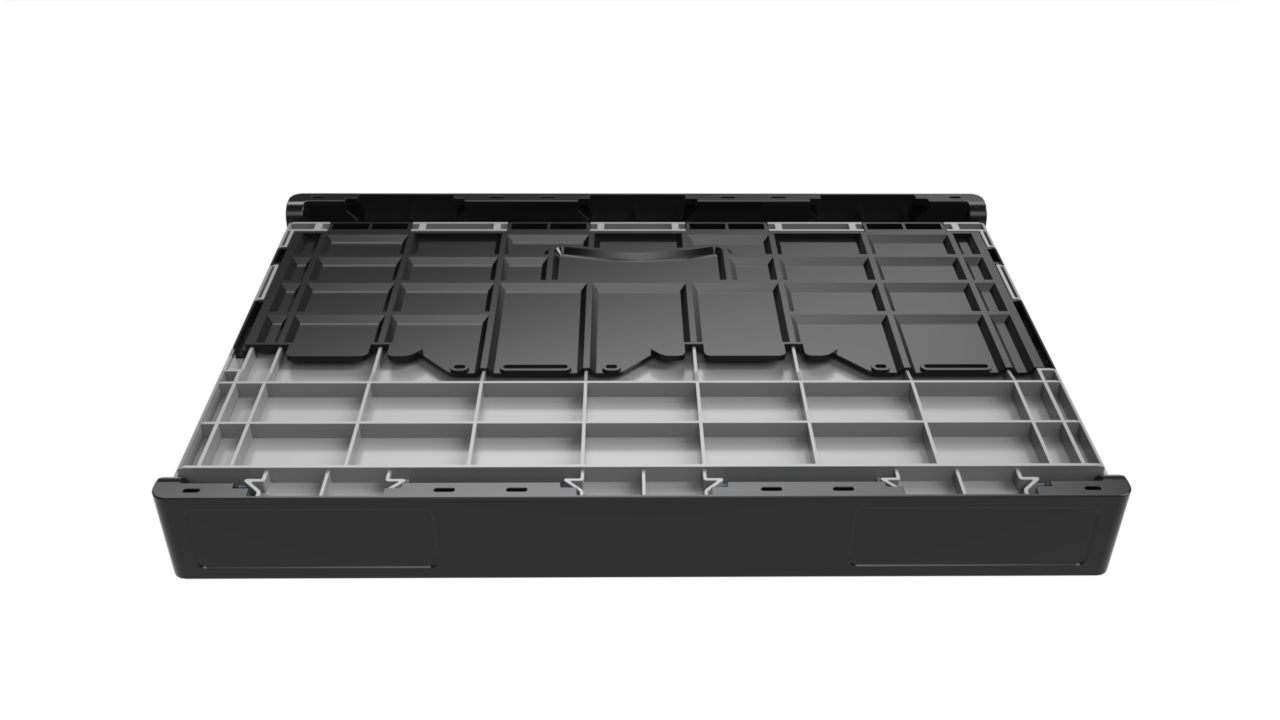

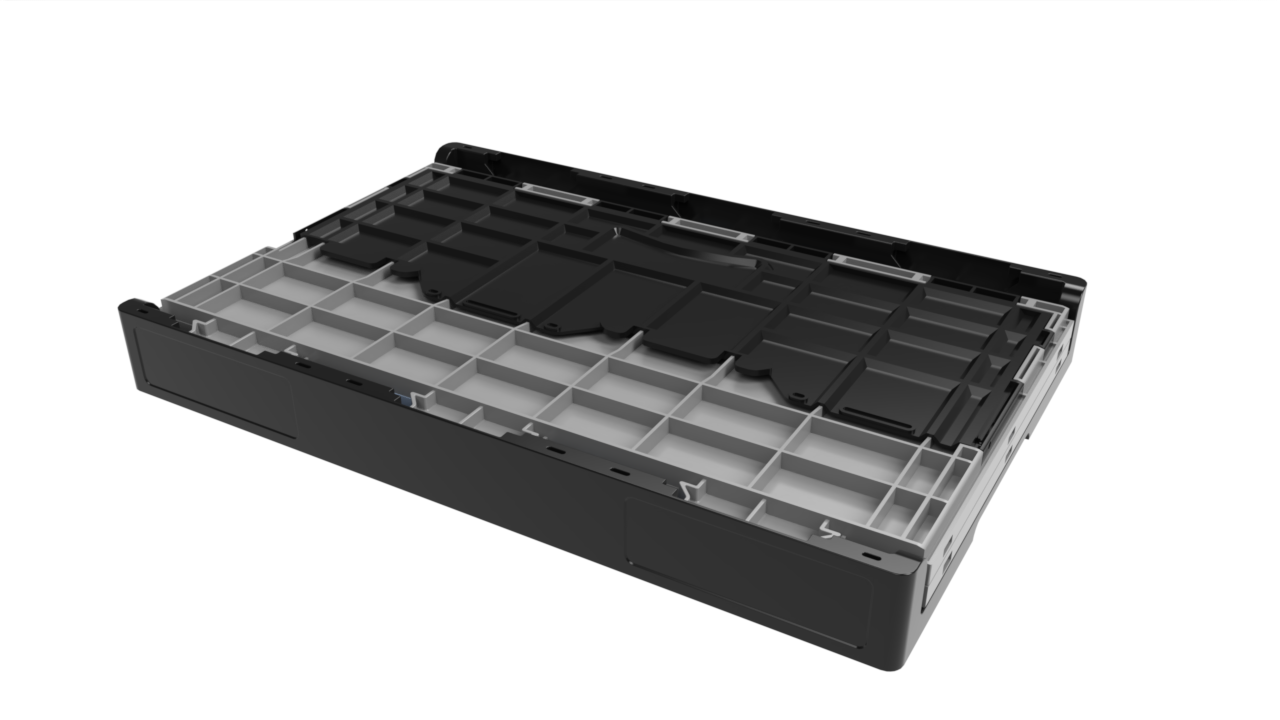

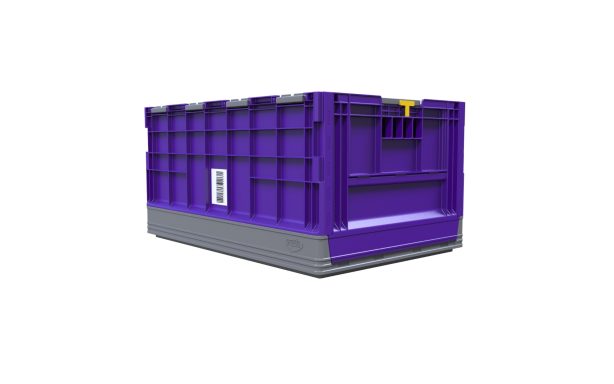

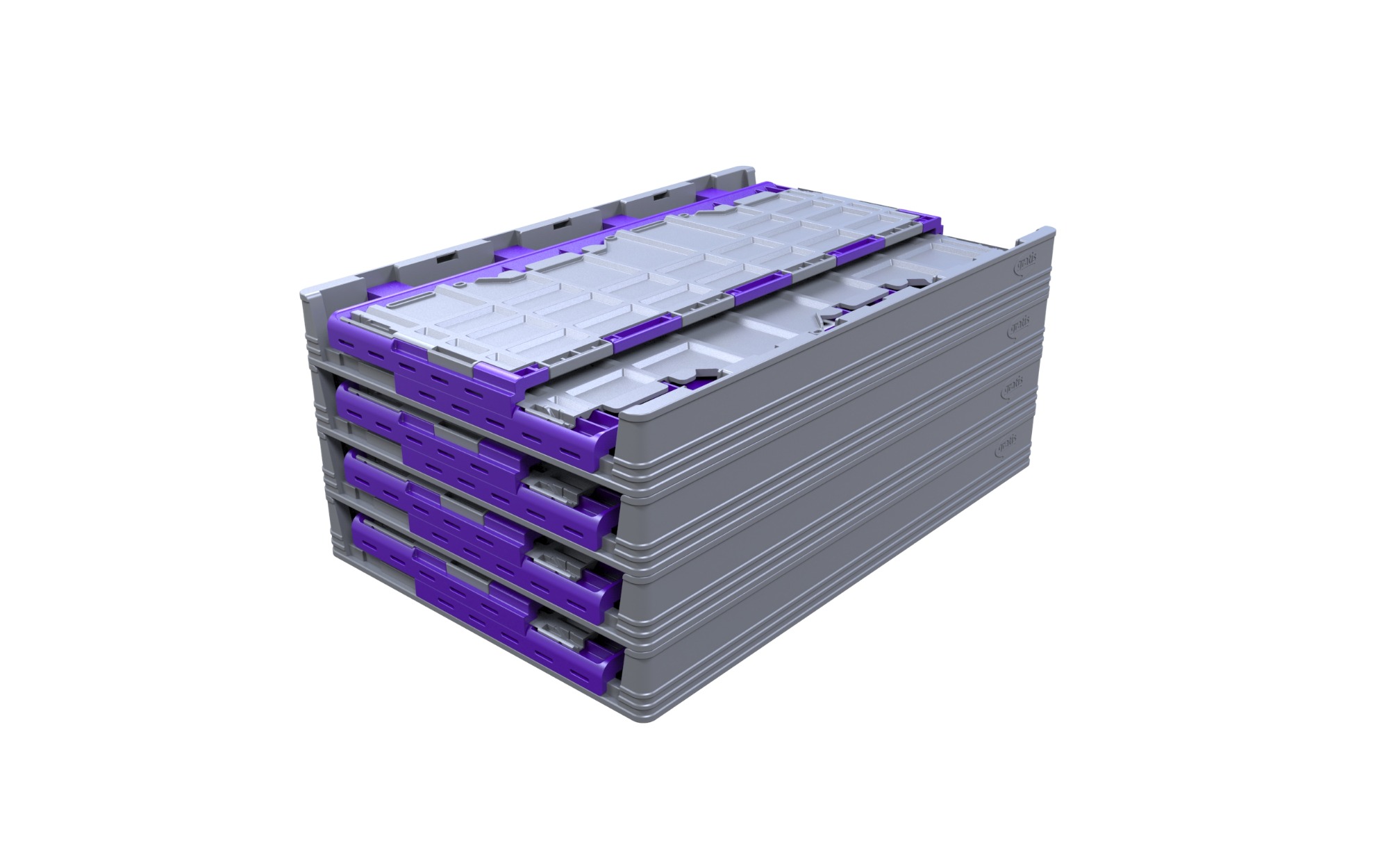

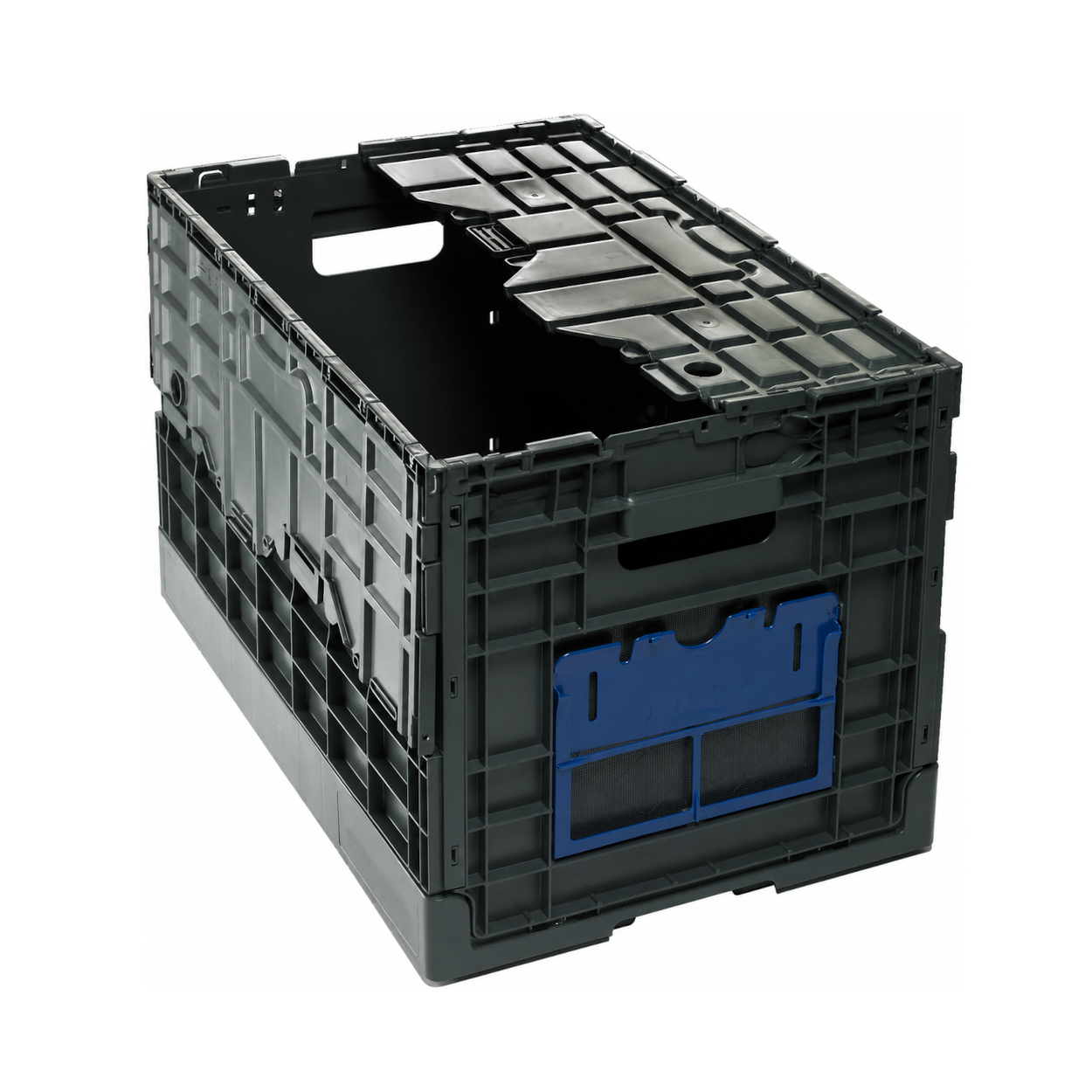

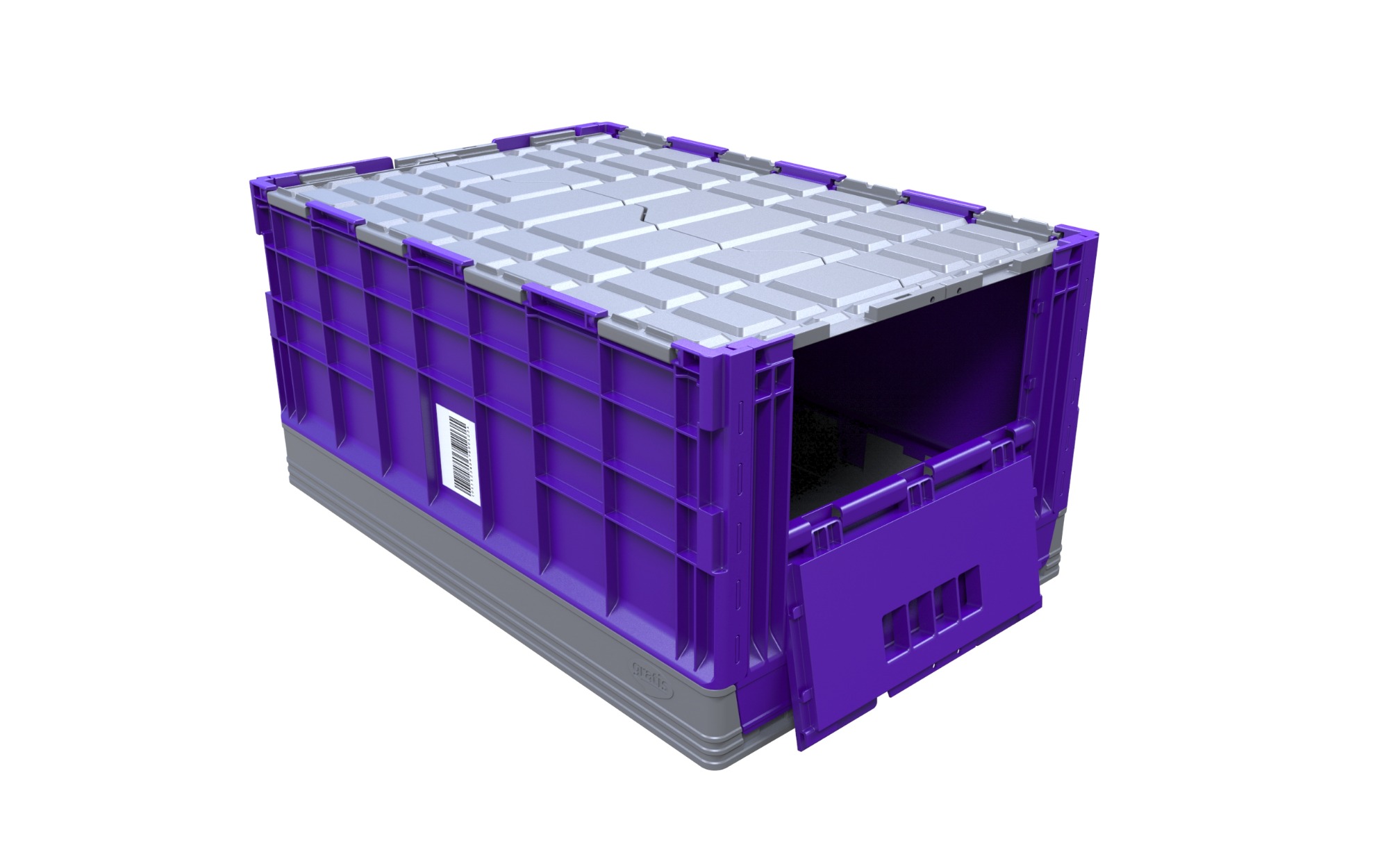

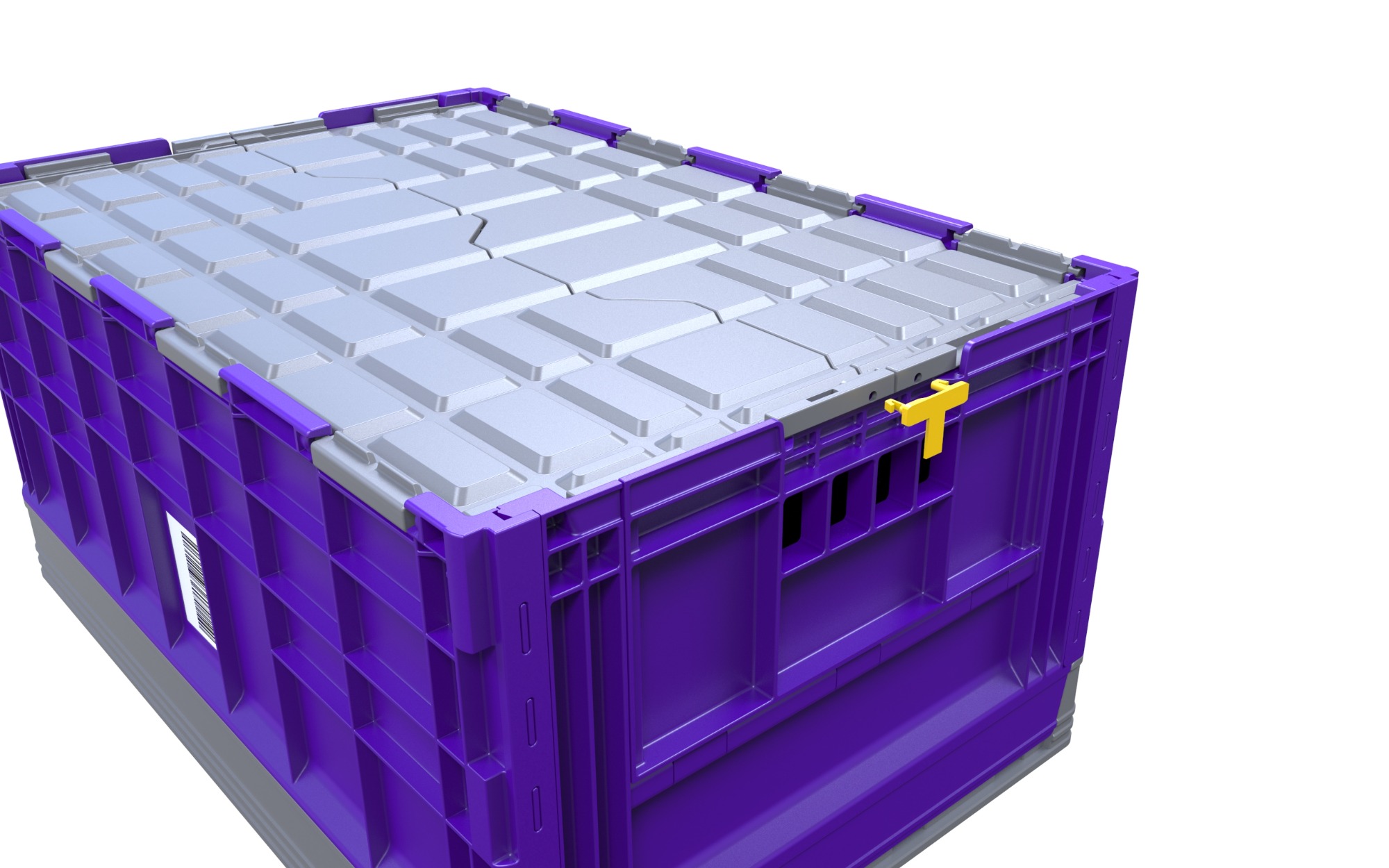

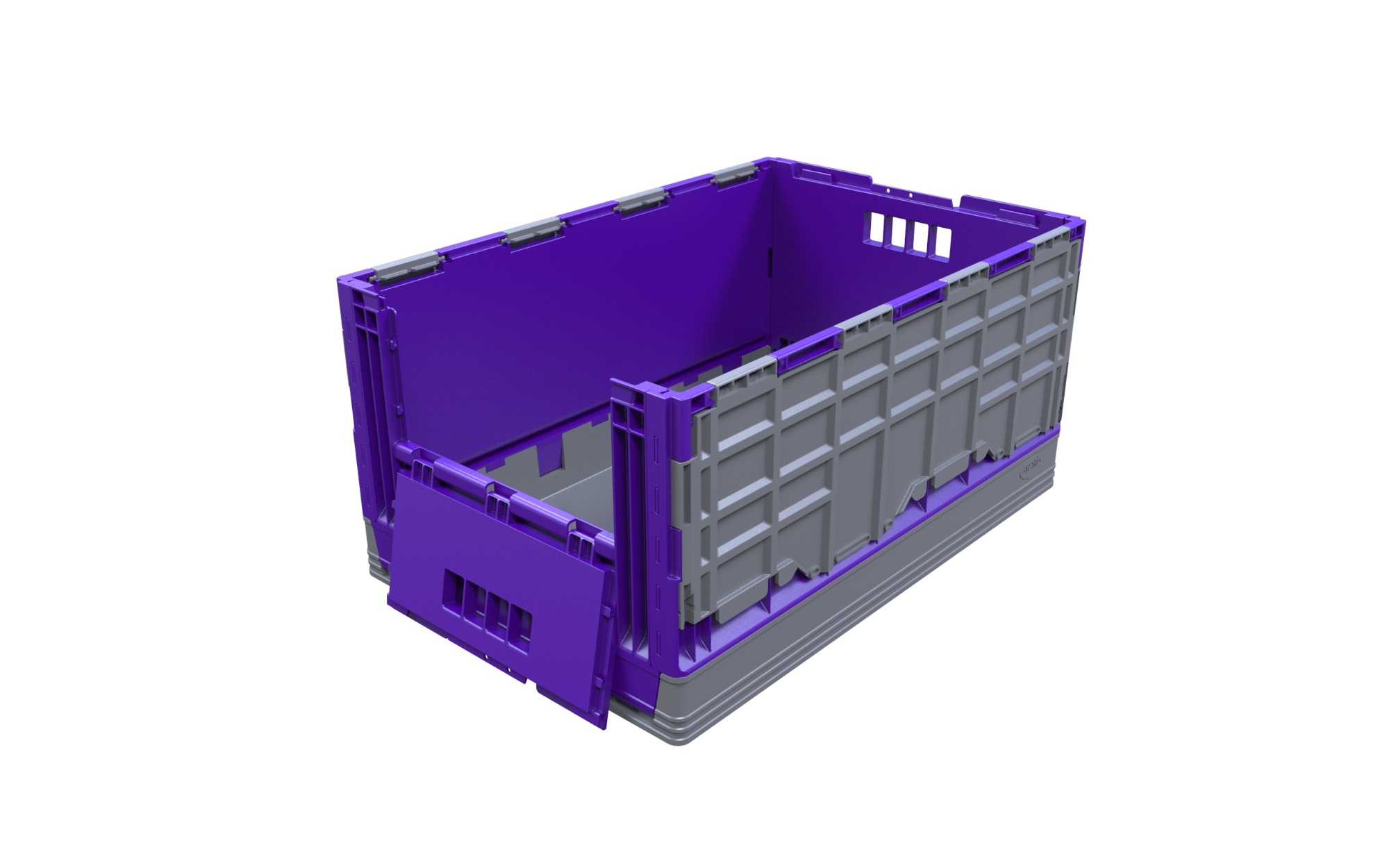

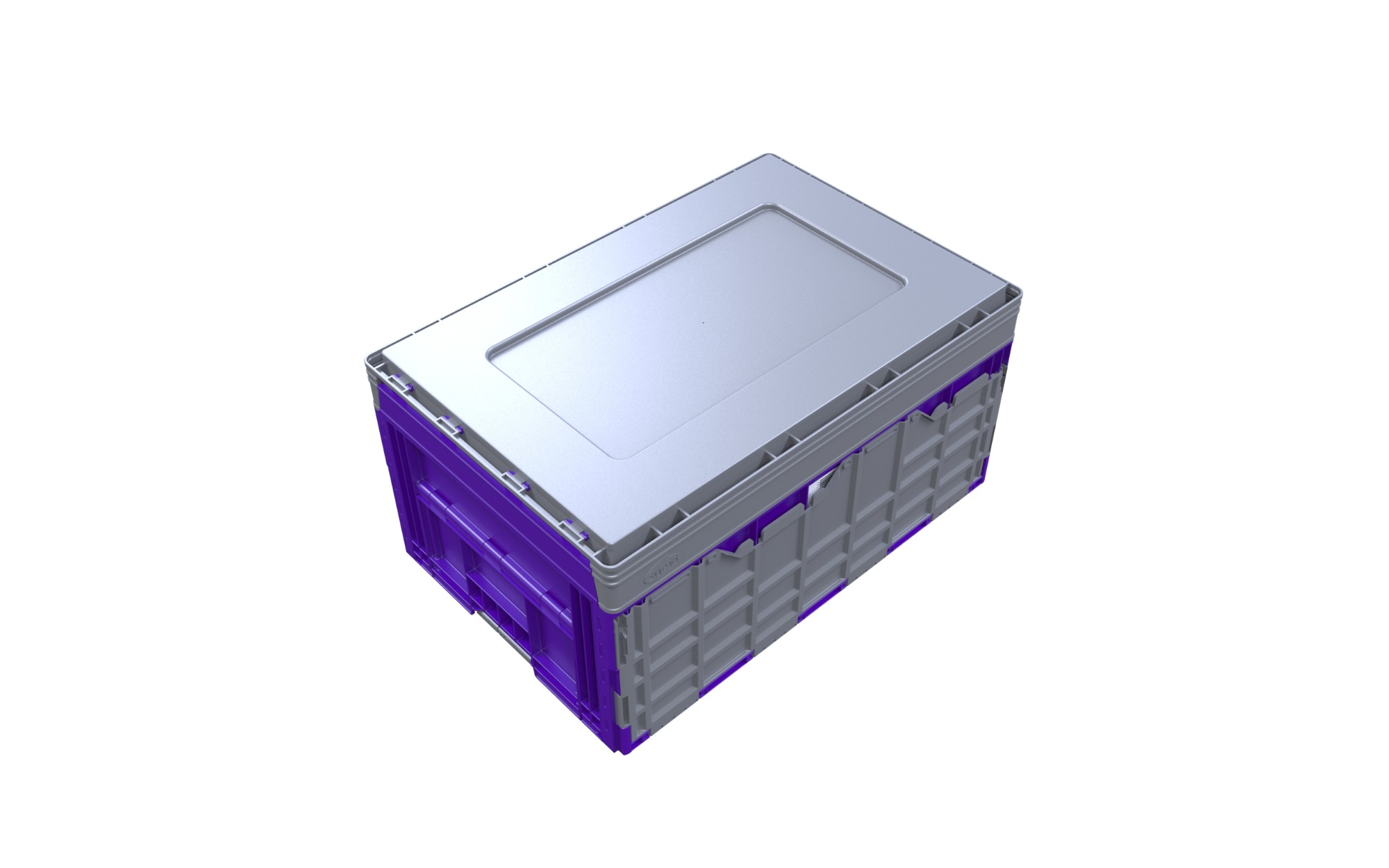

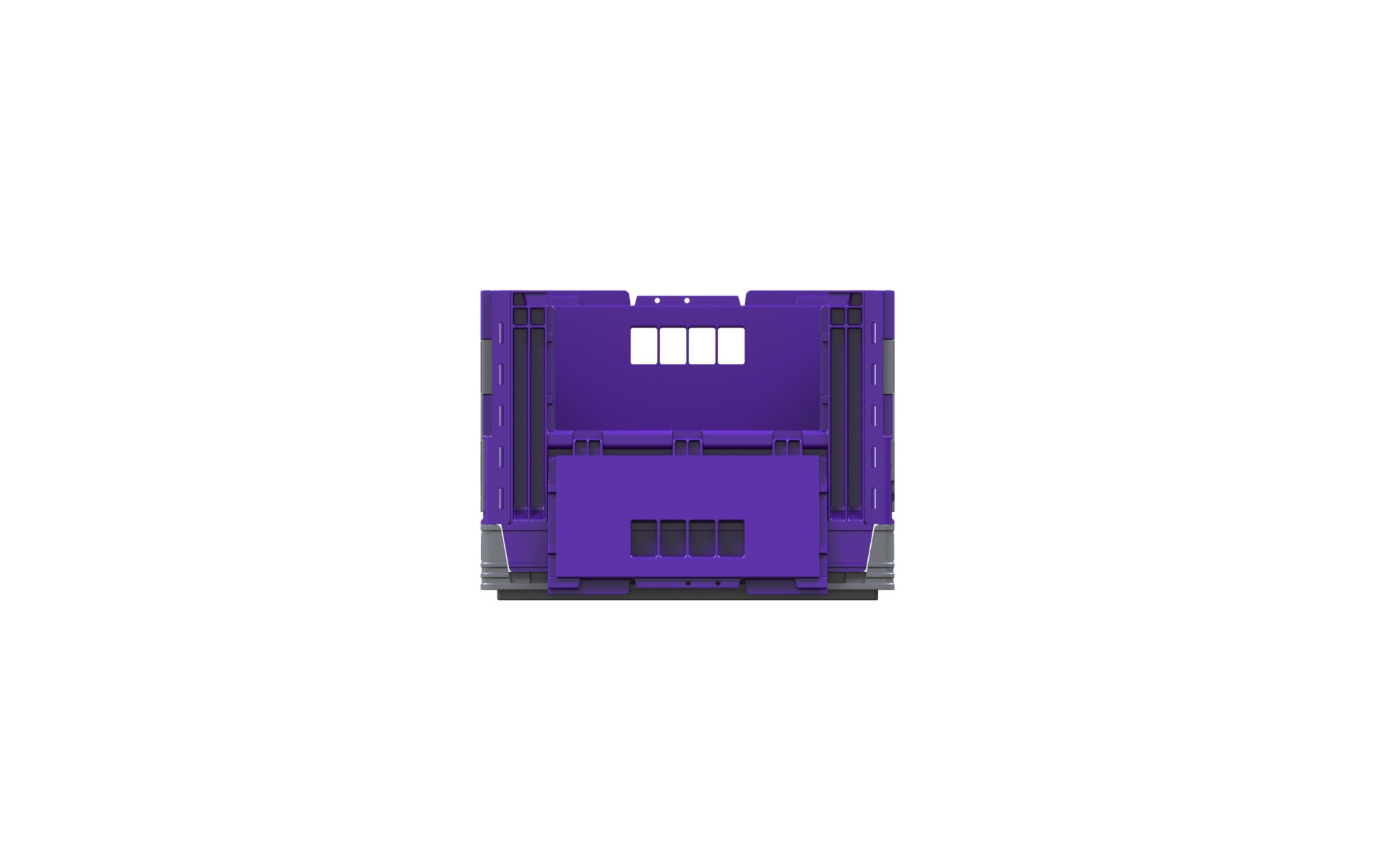

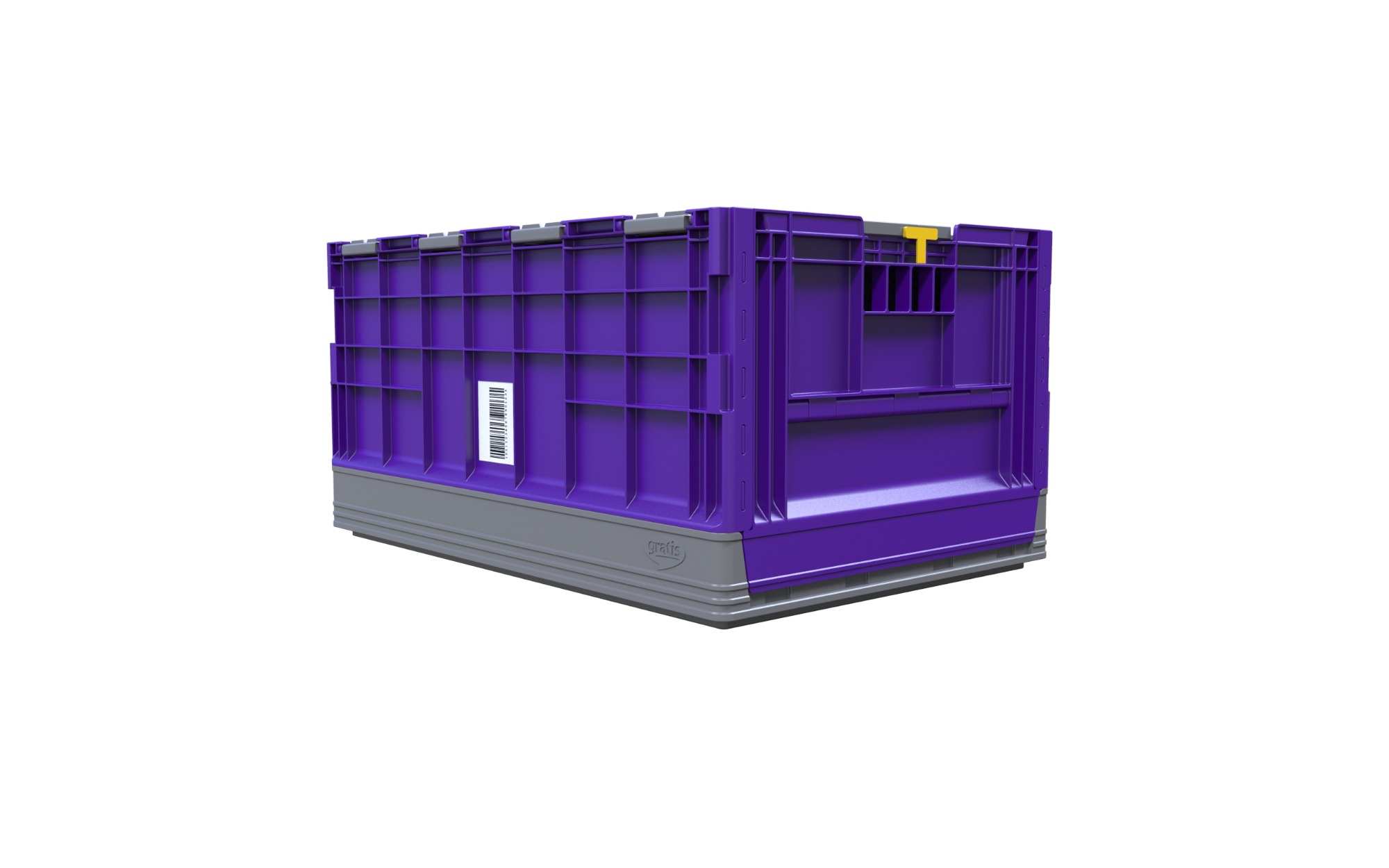

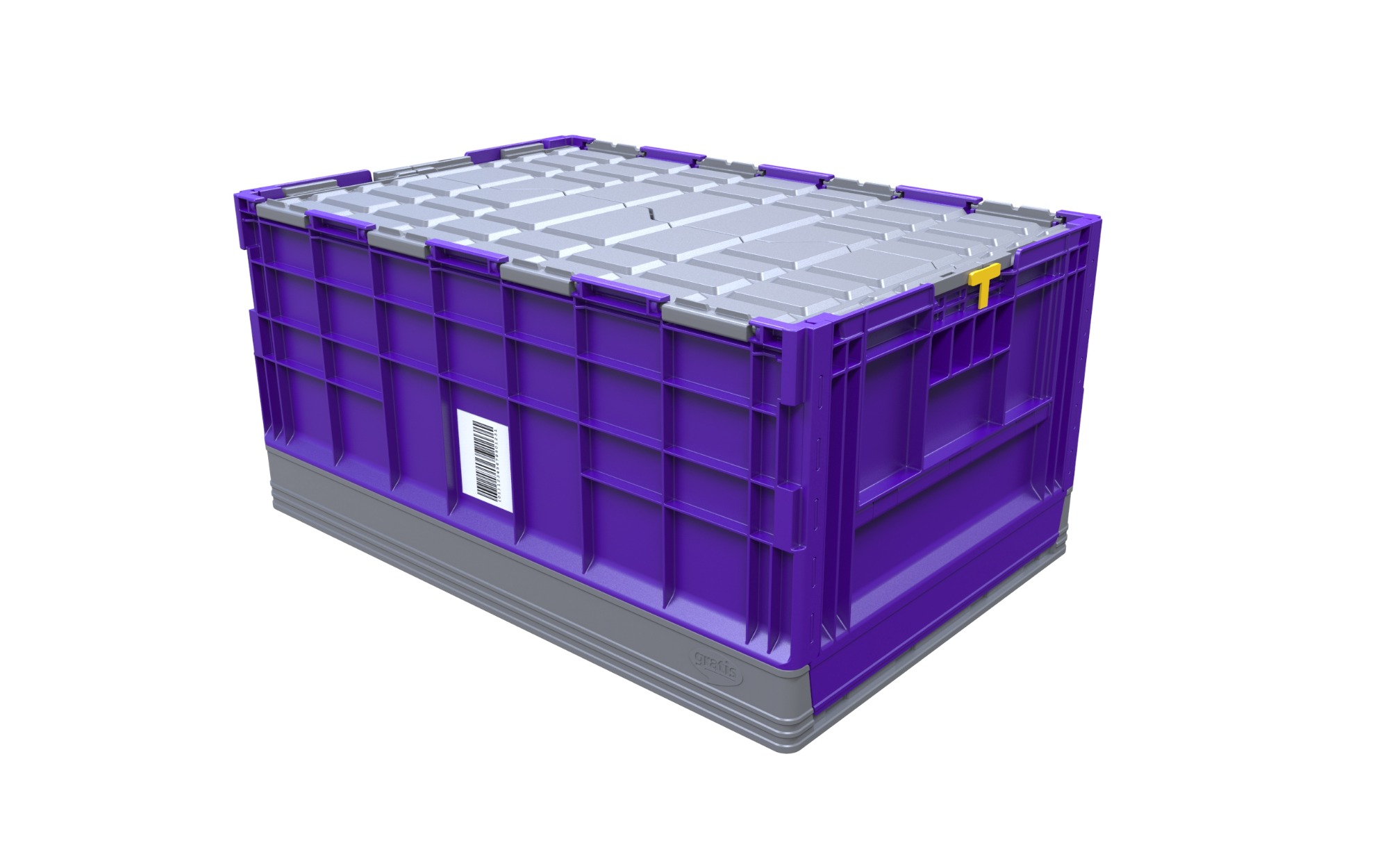

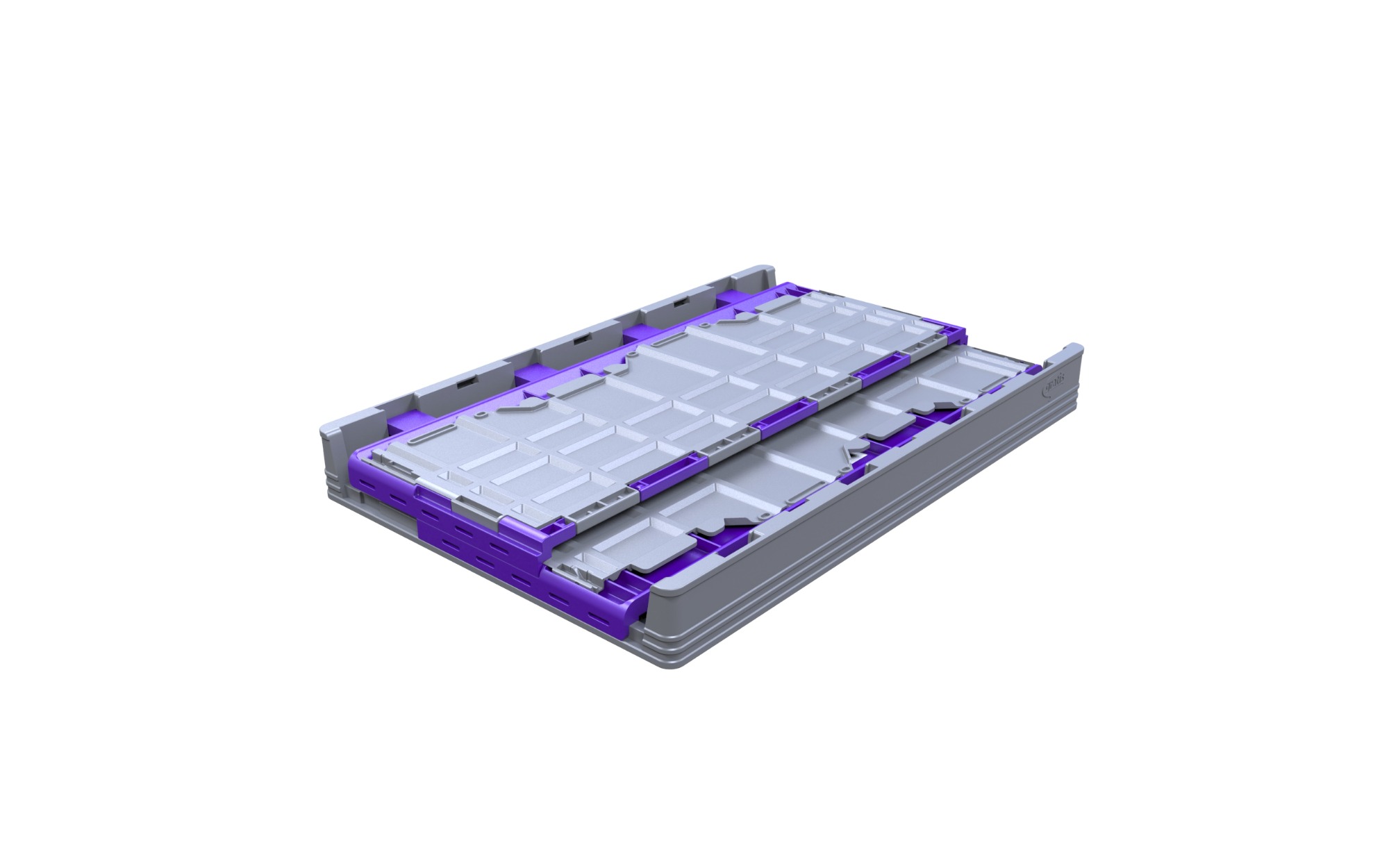

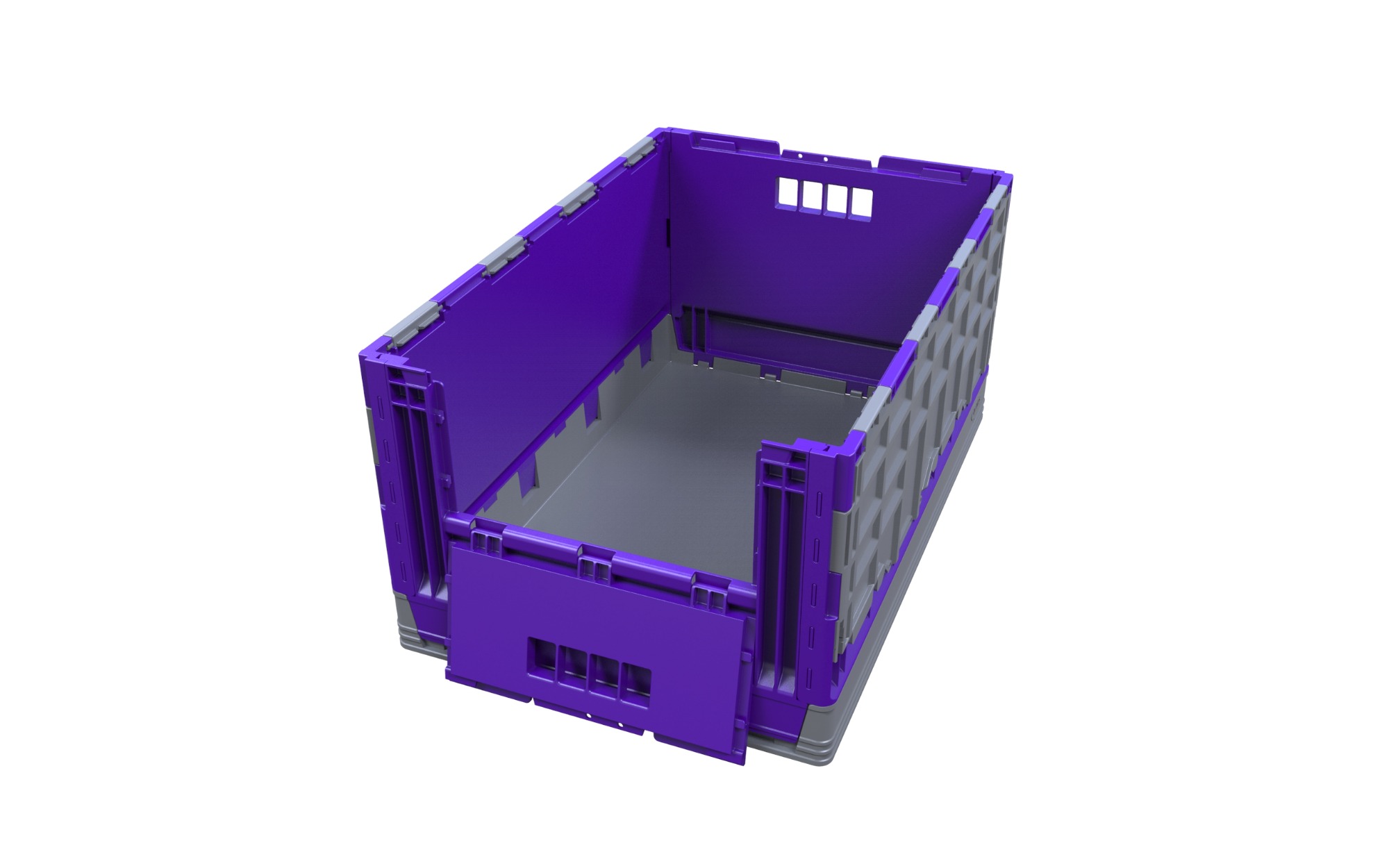

Foldable crate
This crate was developed as a replacement for a rigid box with a loose lid and a loose door at the shortside. The design has a integrated attached lid and door. The lid does not stick out when it is opened. This means that the footprint of 600 x 400 mm is the same when the lid parts are opened.
- Click on thumbnails for larger images -

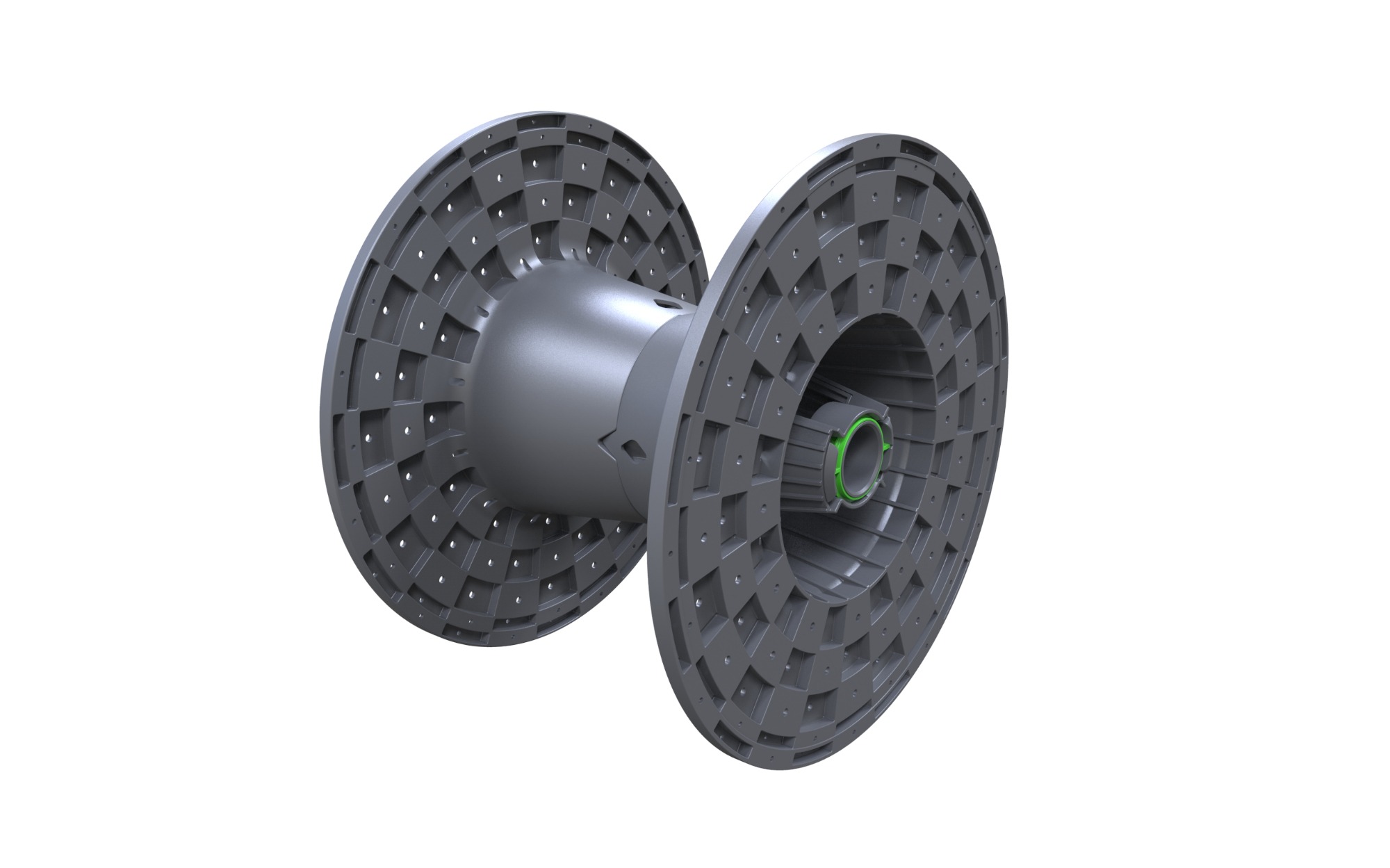

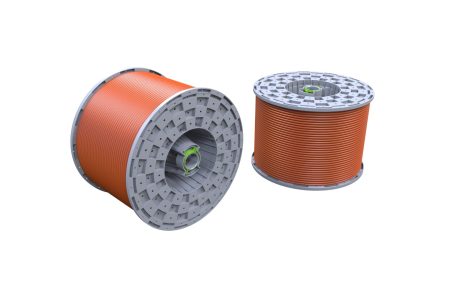

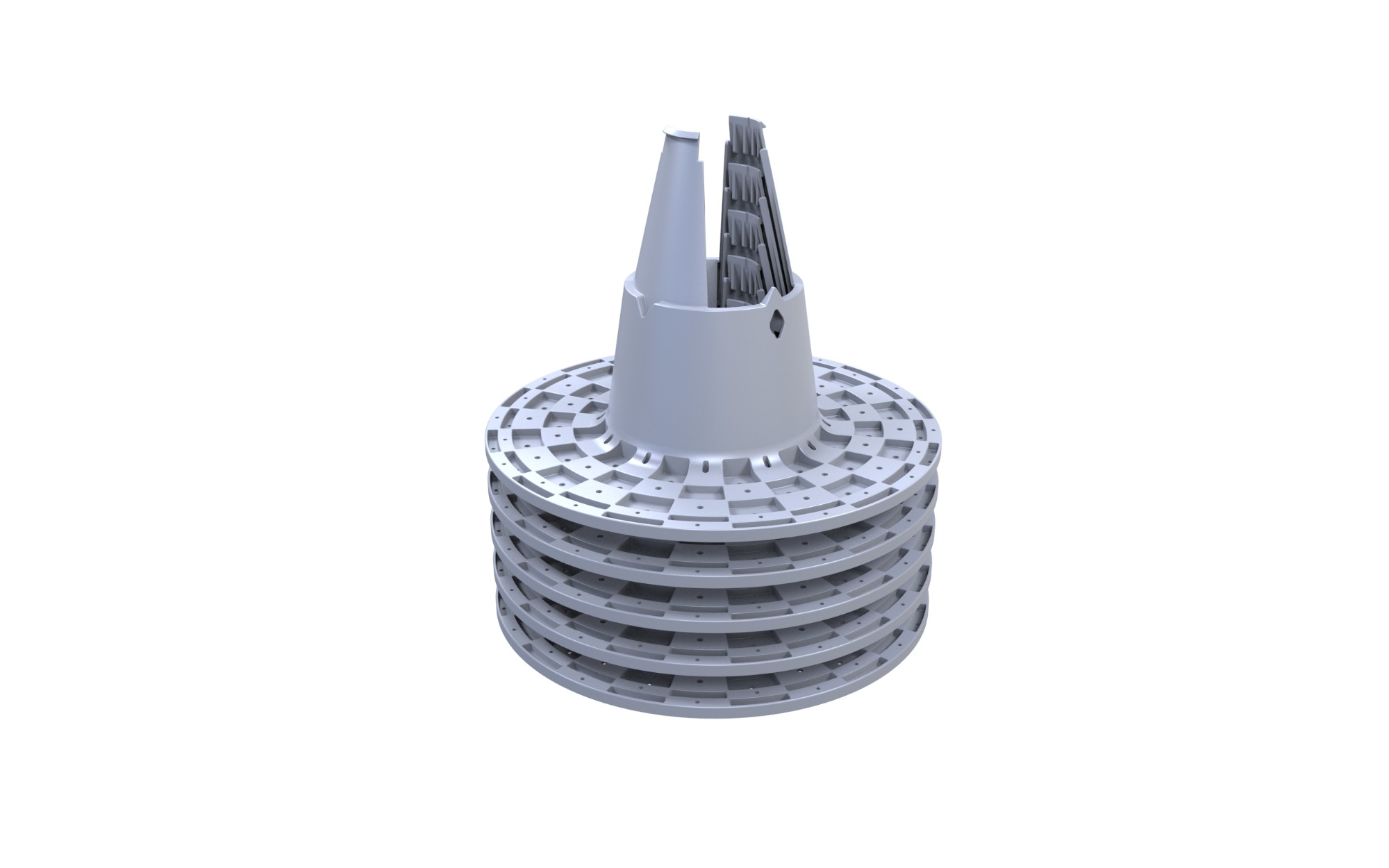

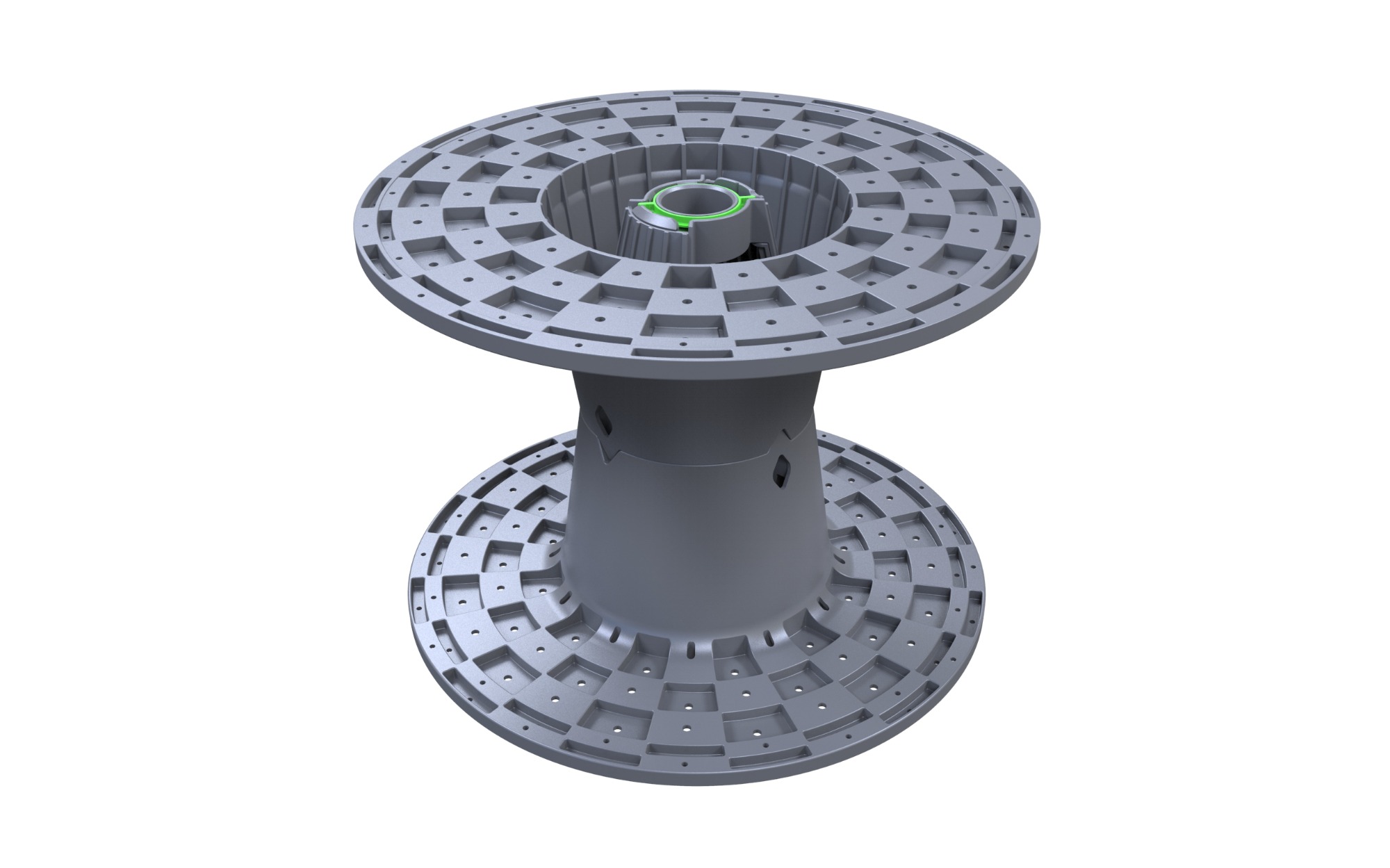

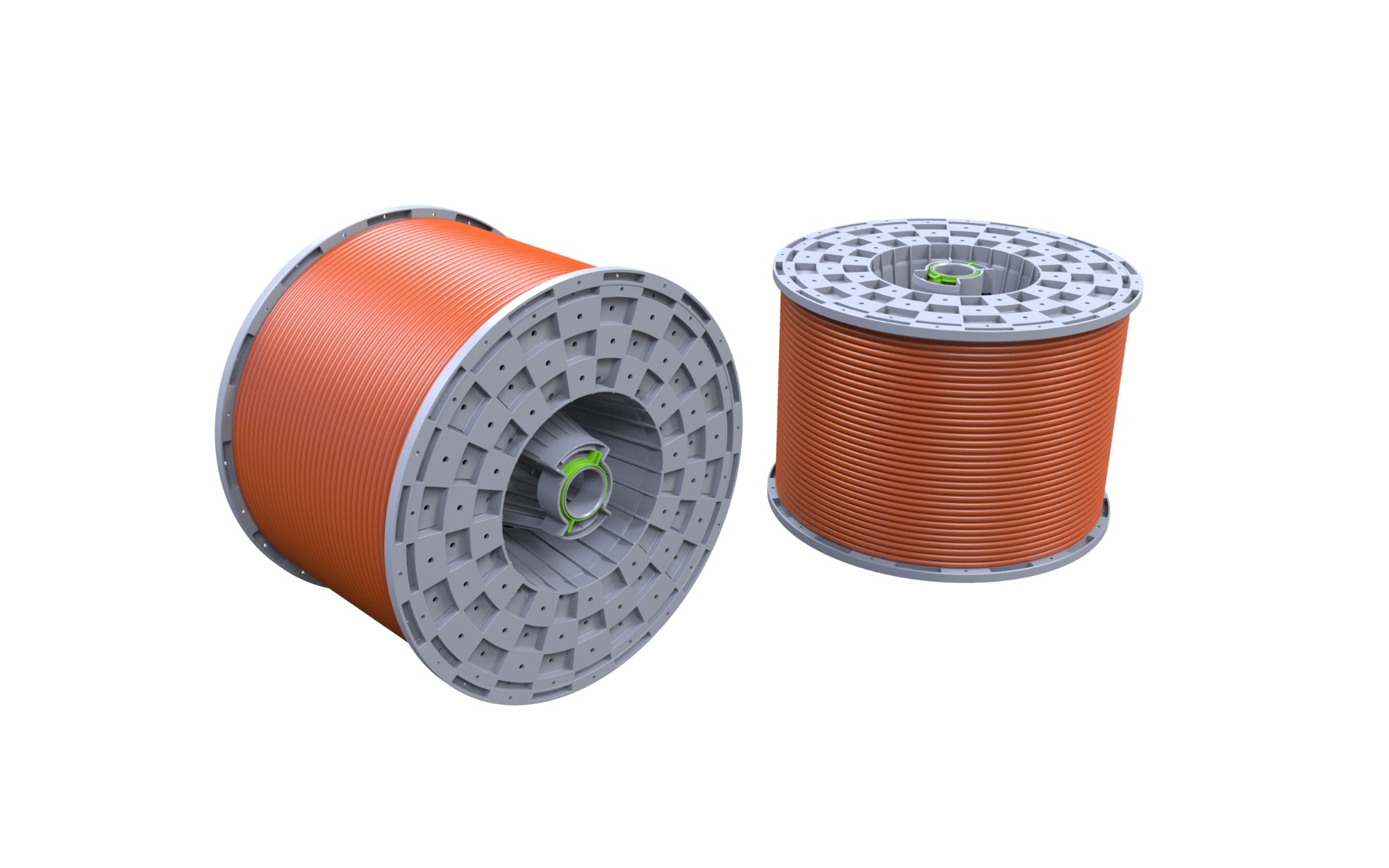

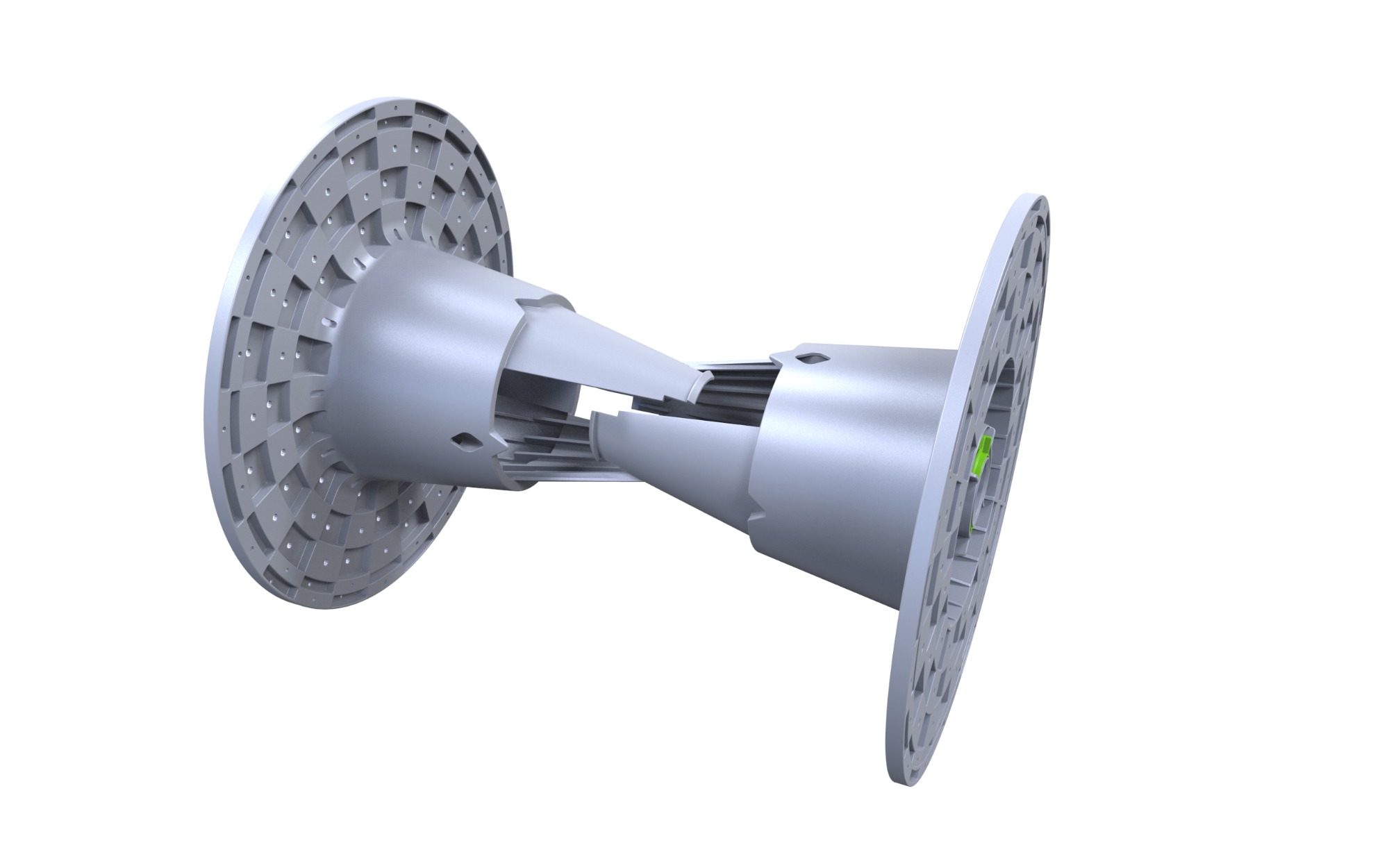

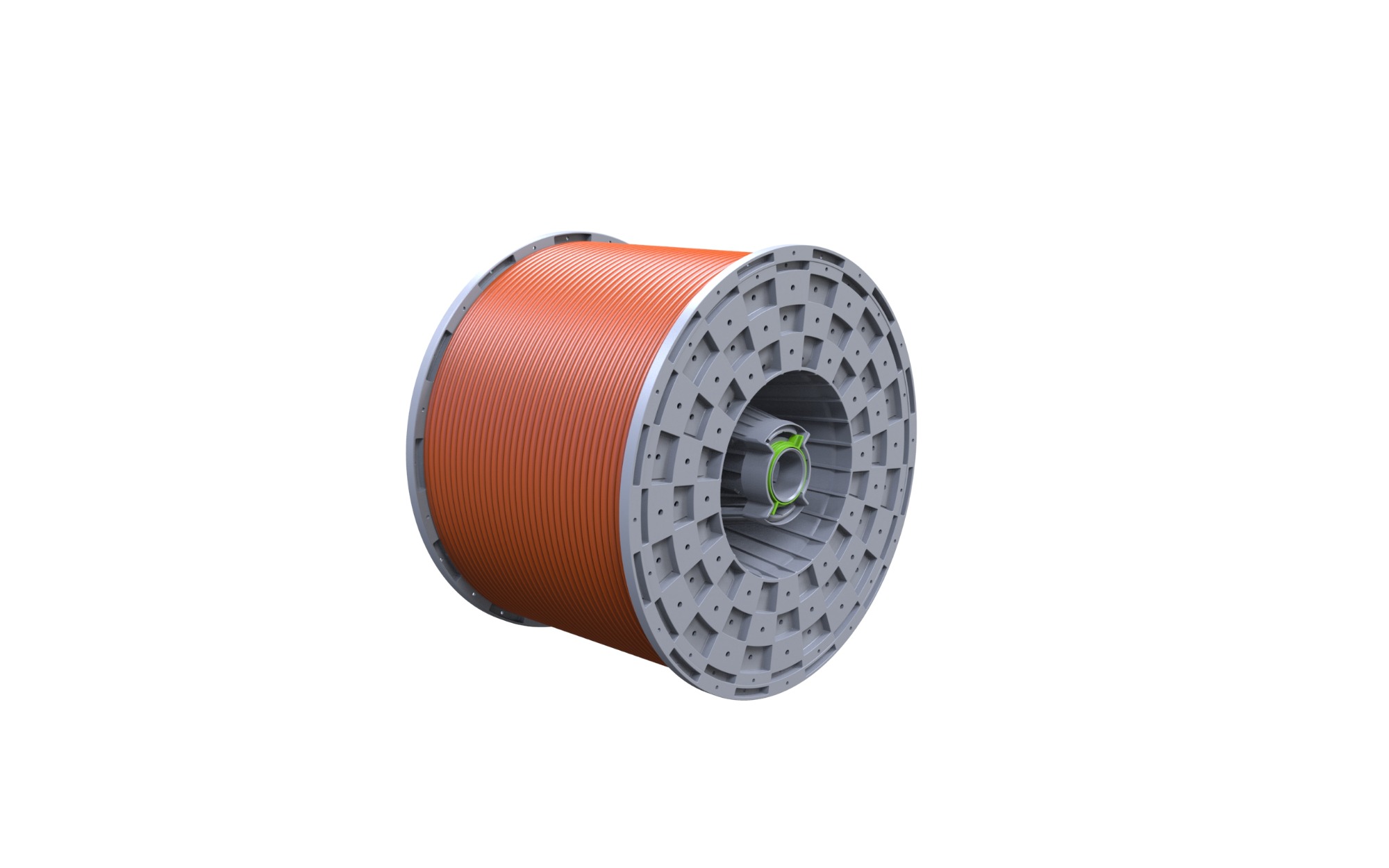

Nestable Cable Reel
This design of a nestable cable reel uses two equal parts. Assembly is possible by rotating the parts so that there is a angle of 90 degrees between the parts and then slide the parts together. The assembled part replaces the existing wooden non-nesting cable reels.
- Click on thumbnails for larger images -
