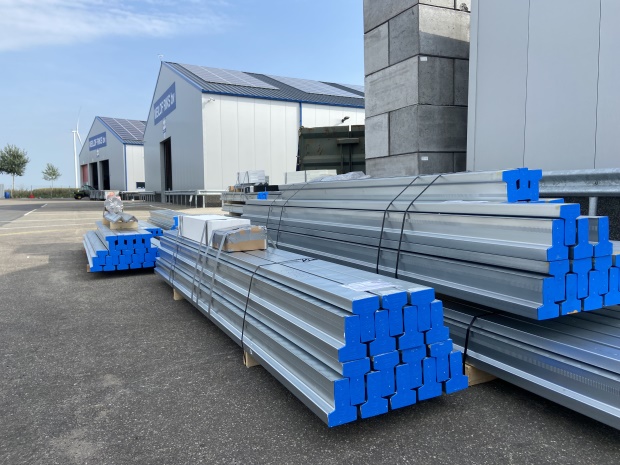

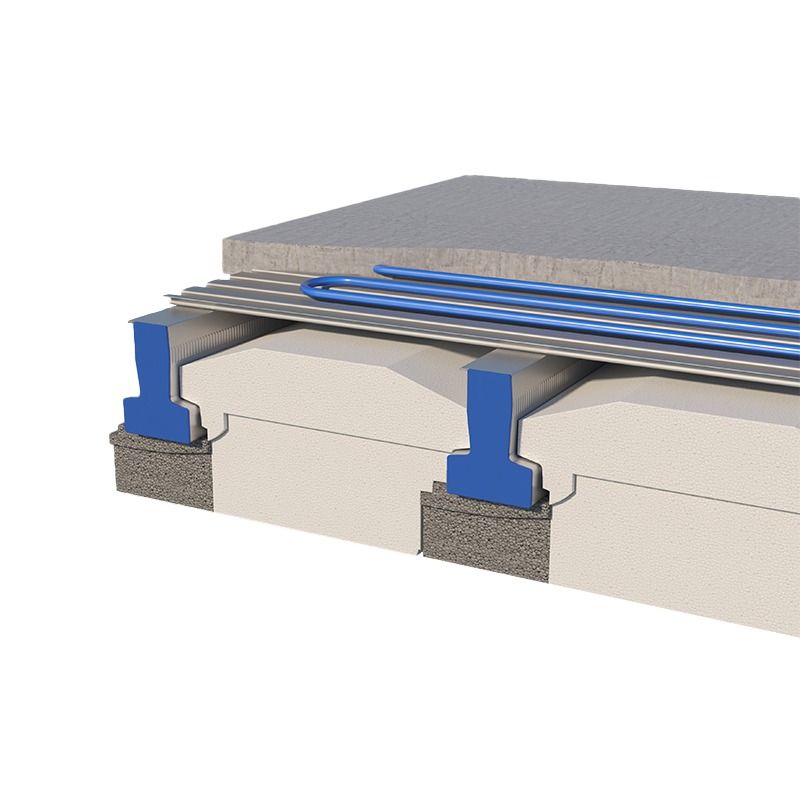

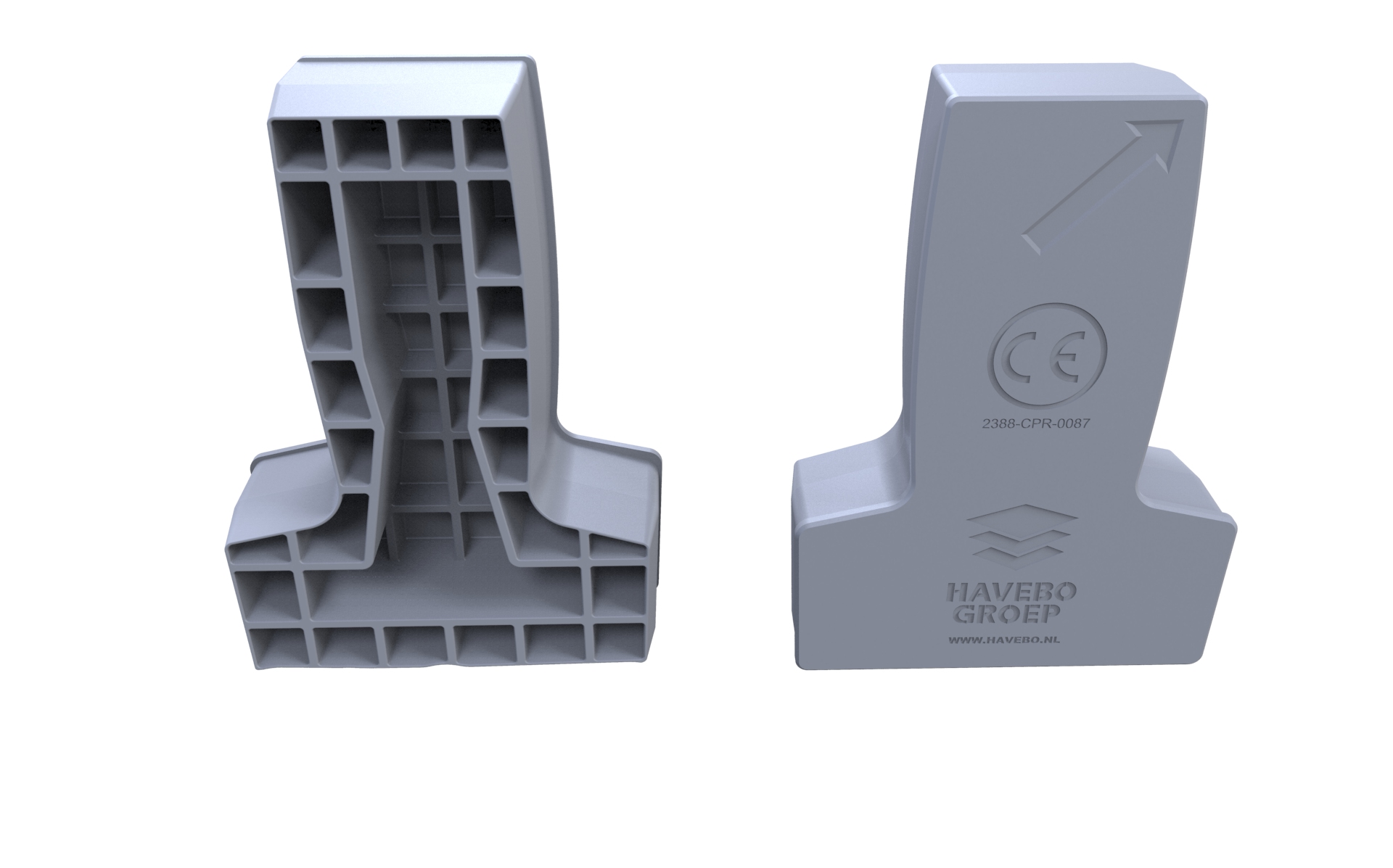

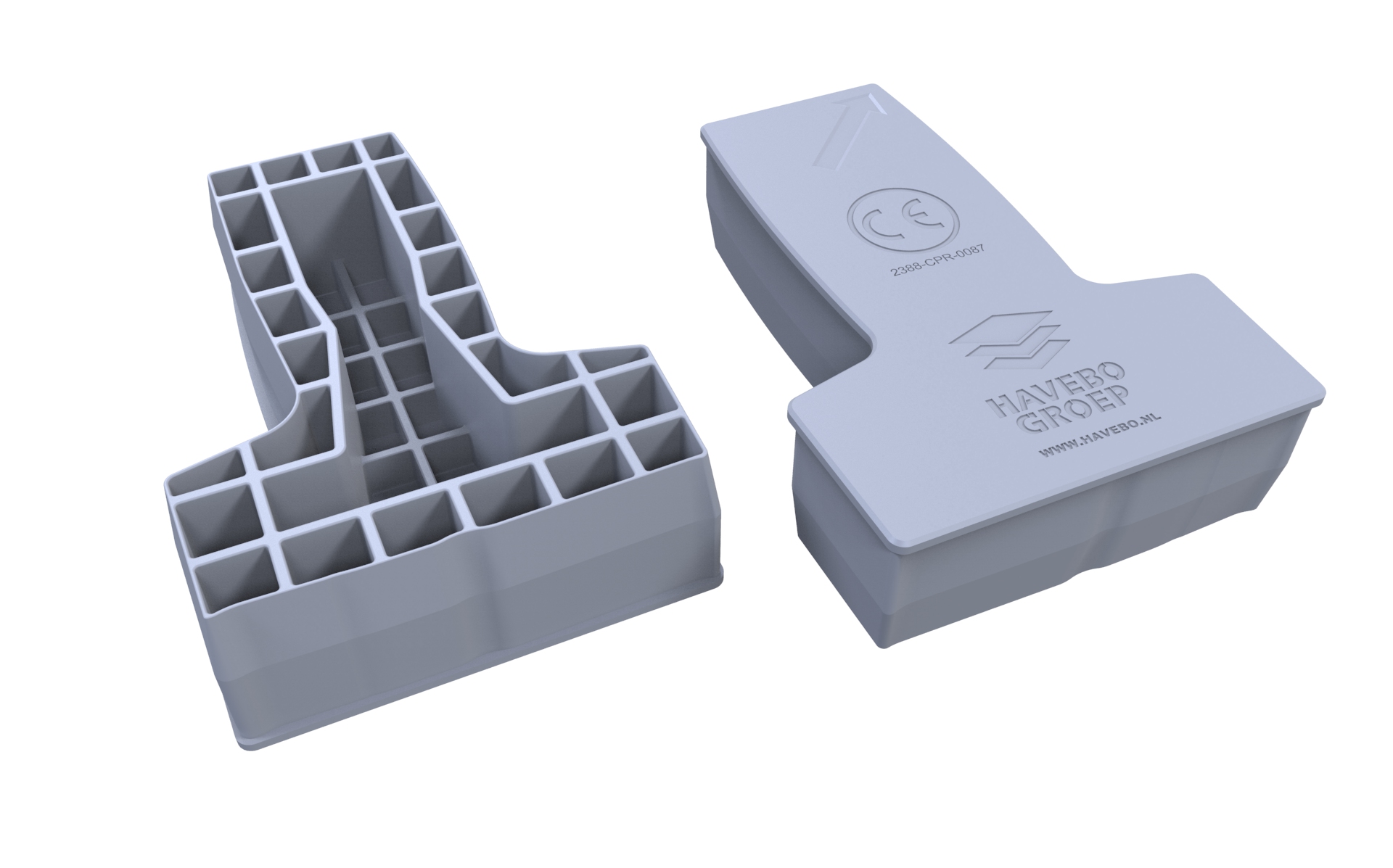

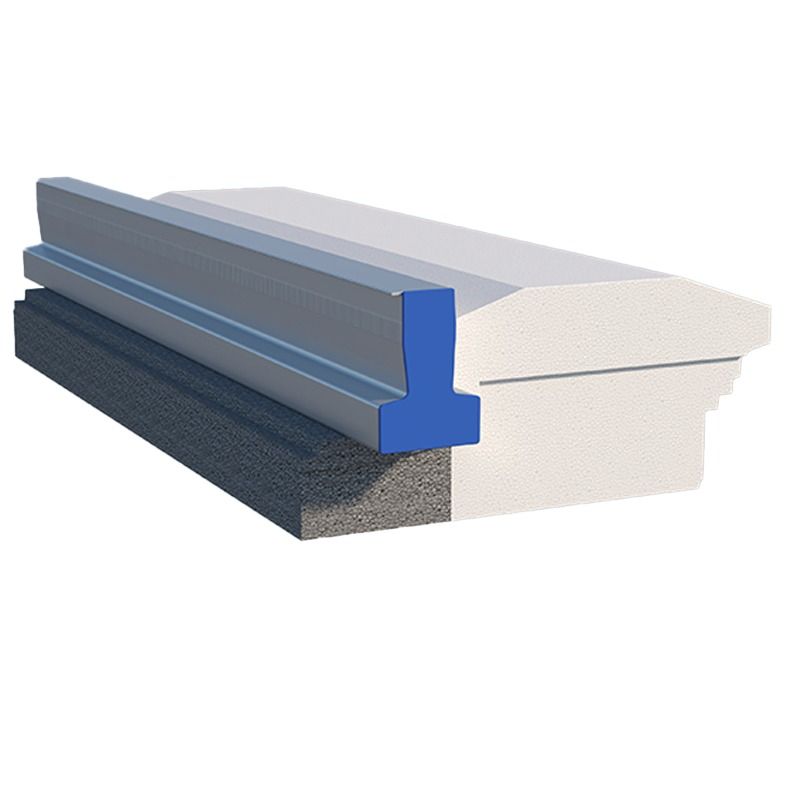

HAVEBO Renovation profile endcap

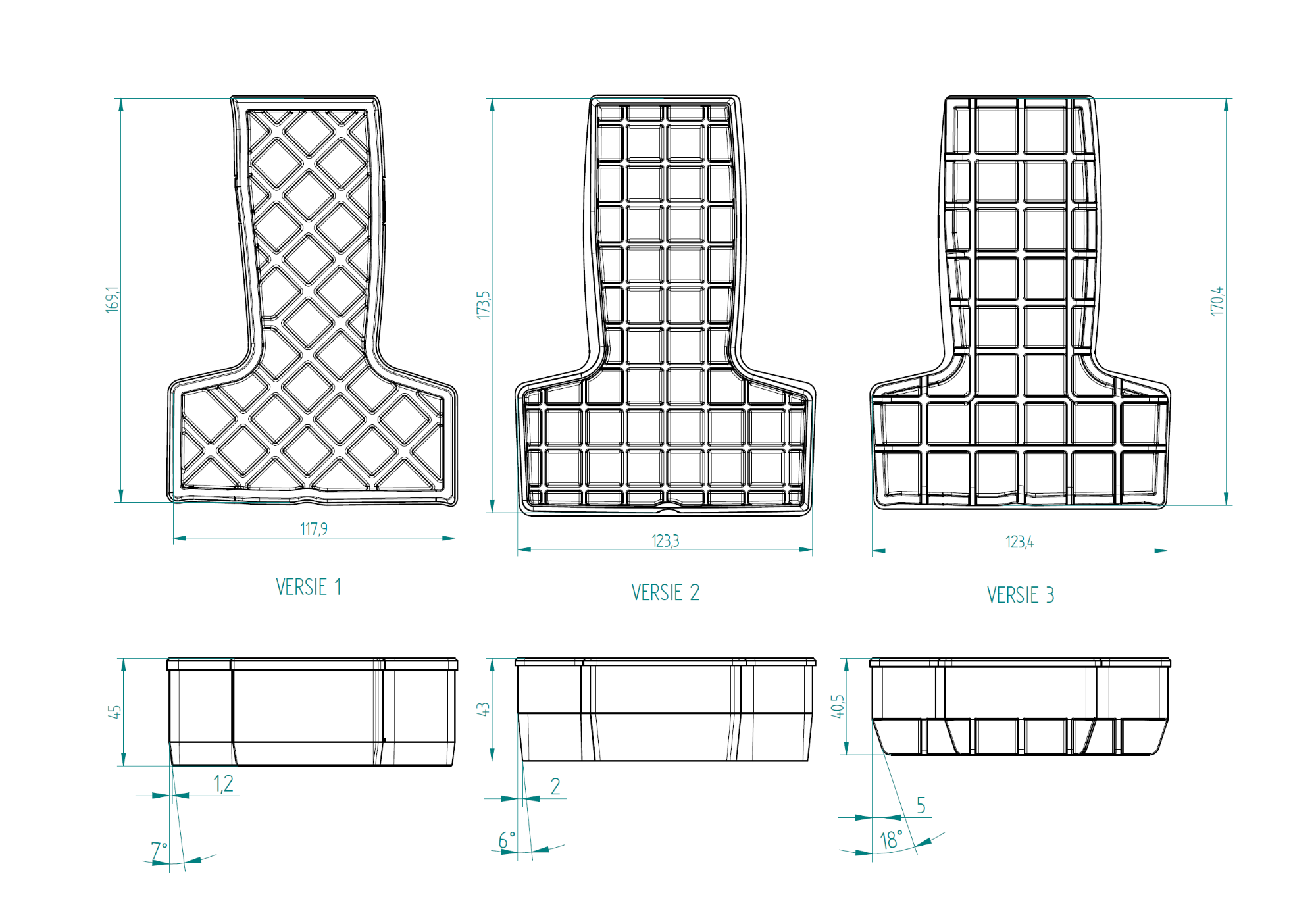

An Endcap for an aluminium profile was designed using the existing aluminium profile (produced by Meilof Riks BV) as input. The profile was scanned and then a first 3D Design was made. Several prototypes were made to come to the final design . After detailling the 3D design (adding drafts and radii) quotes from mouldmakers were inquired. A dutch mouldmaker and production facility was choosen mainly because of the easier communication and possibilty of visiting the facility on every occasion.
- Click on the thumbnails for larger images -

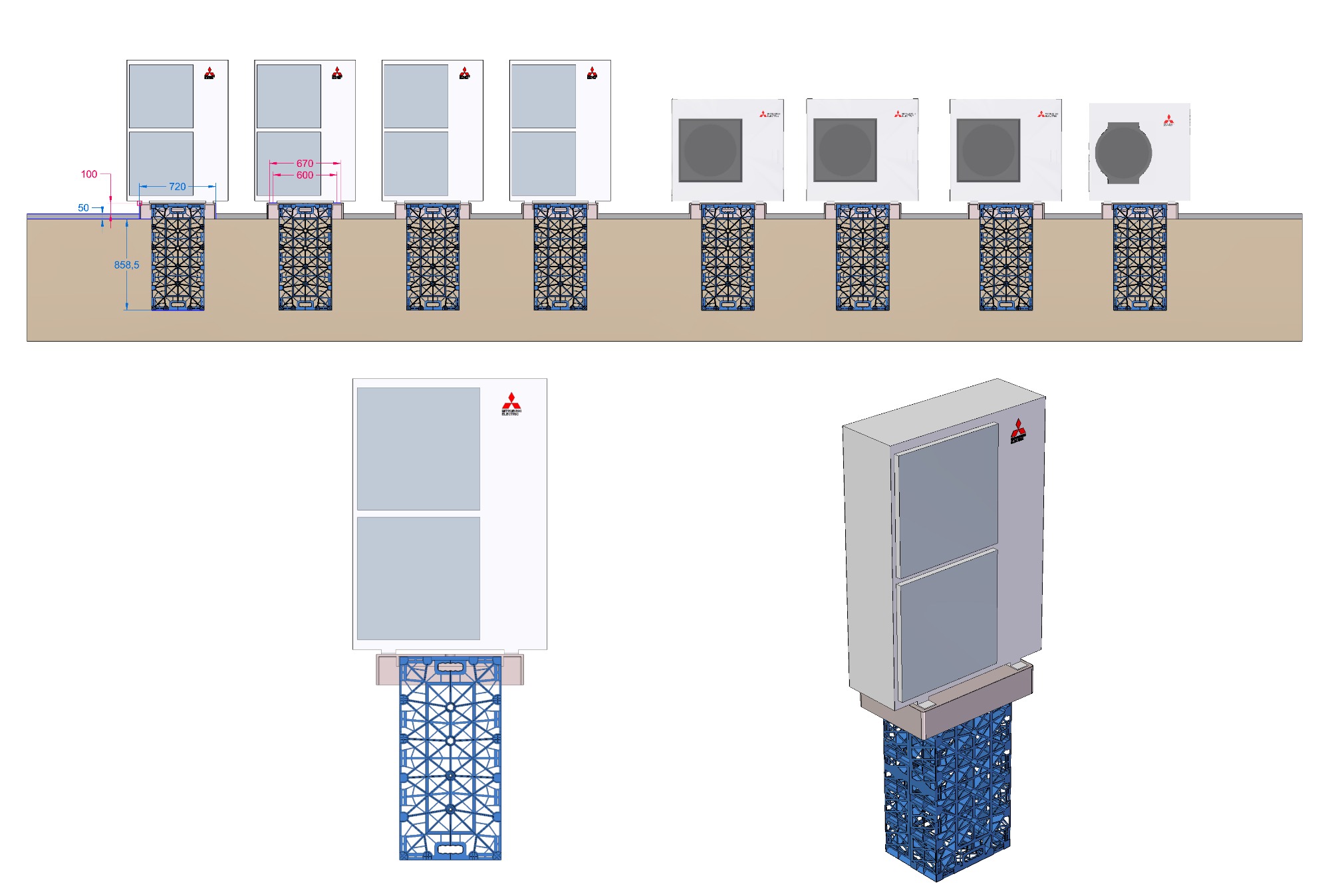

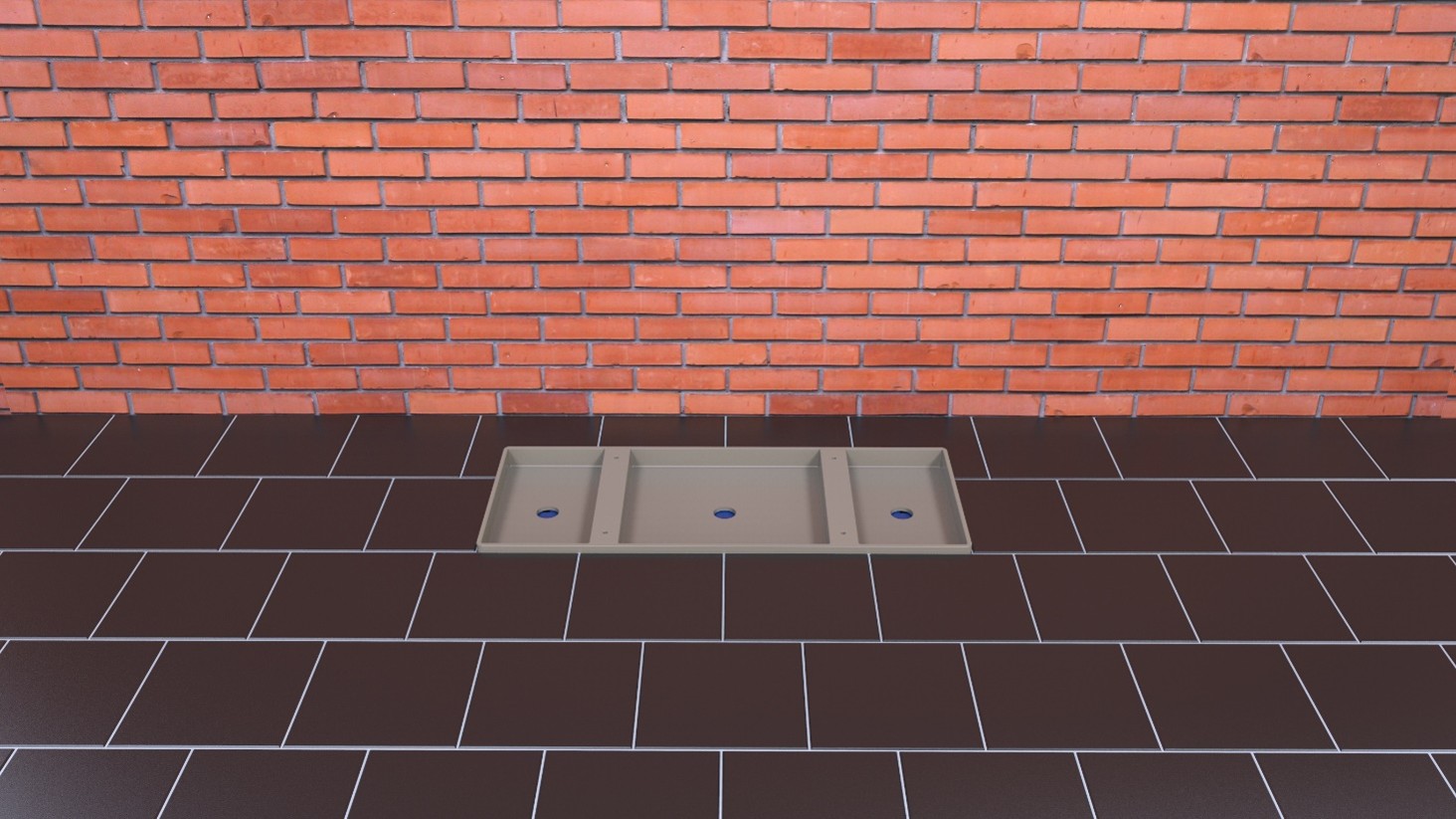

Animation water infiltration unit

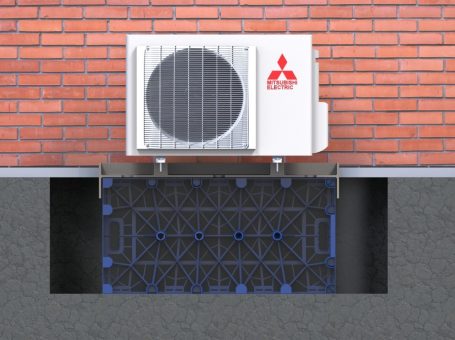

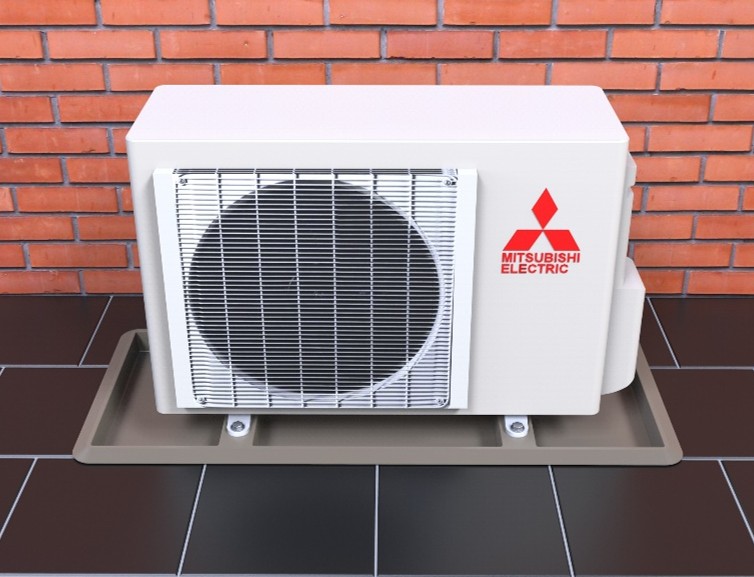

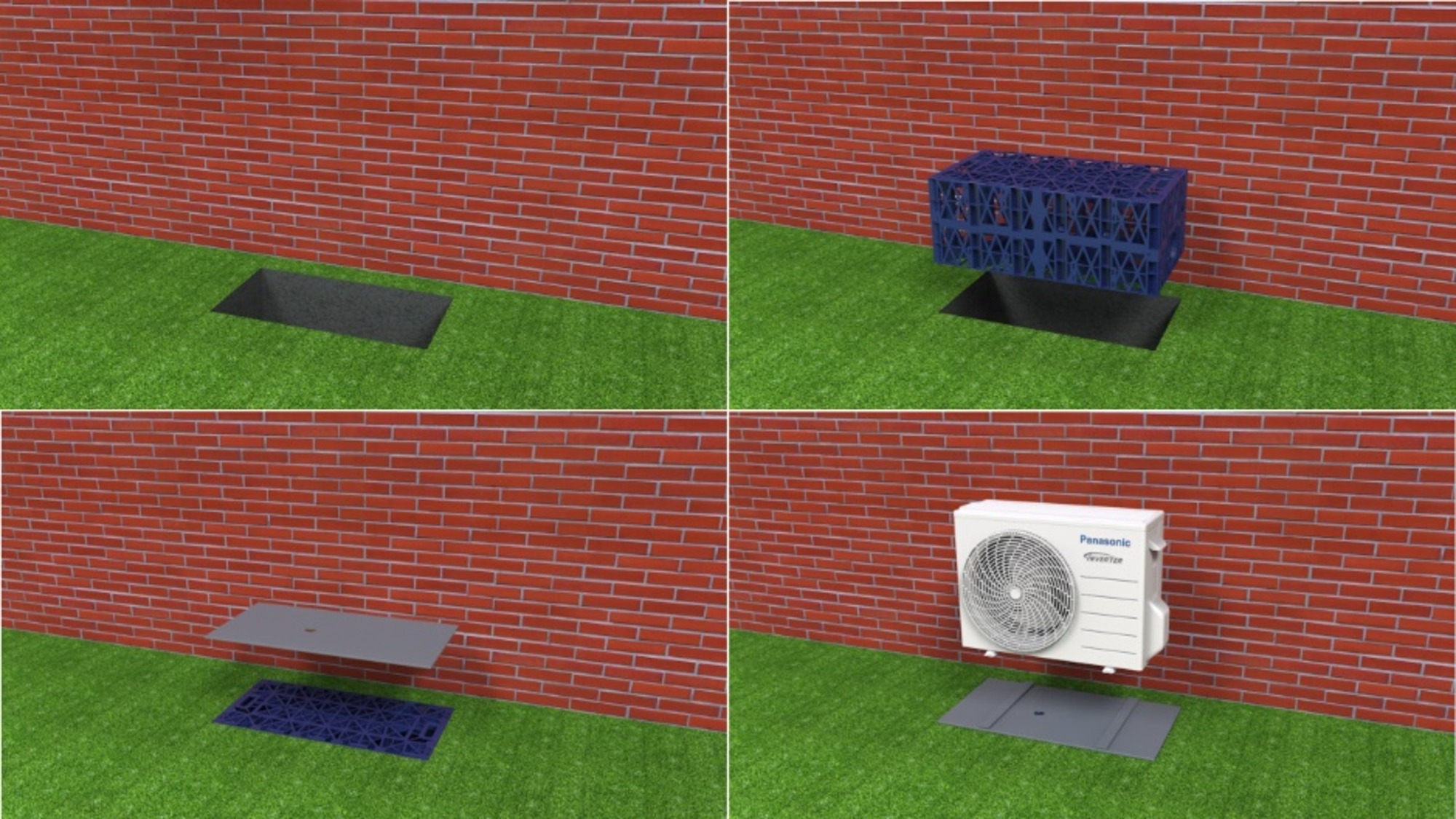

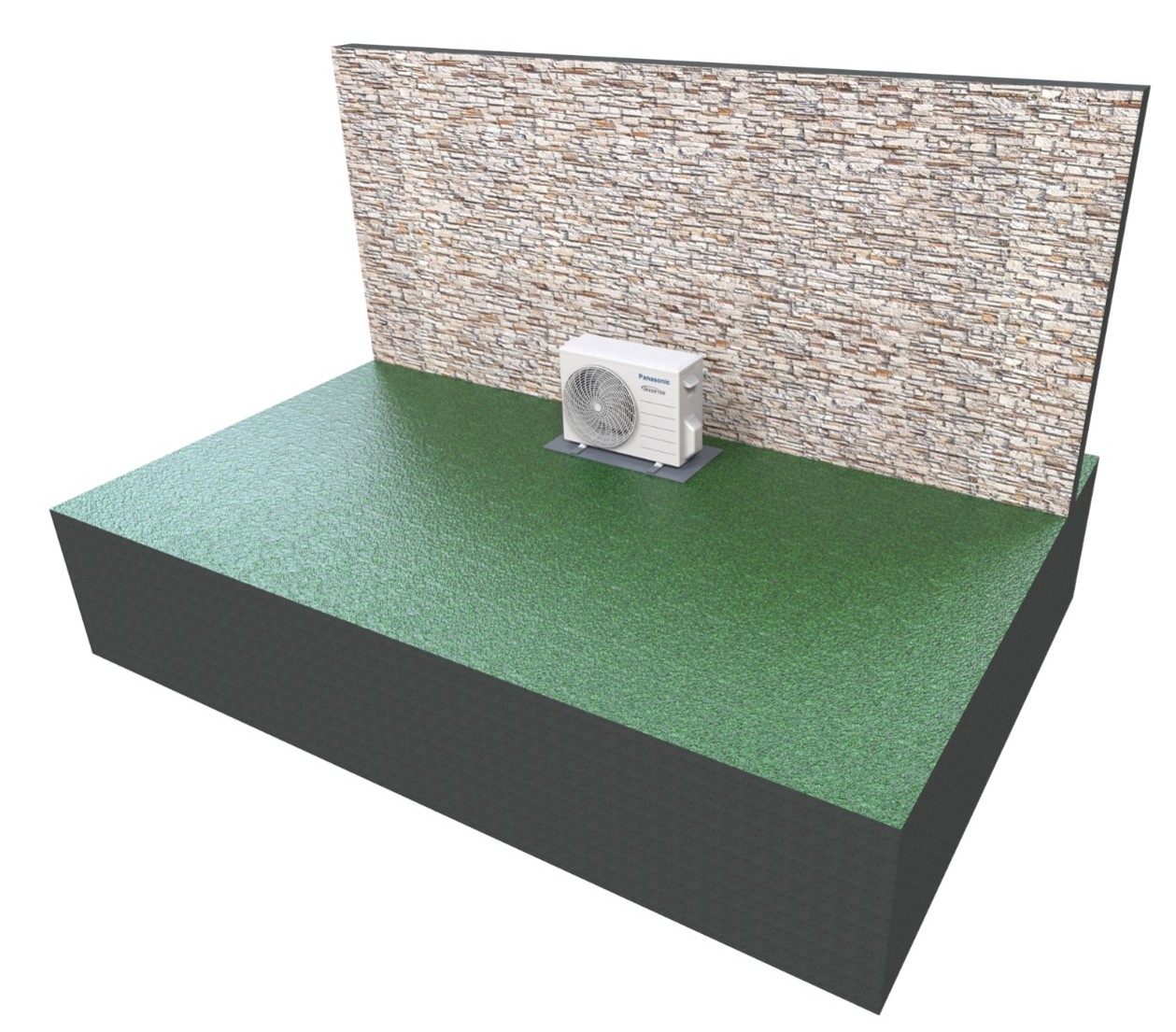

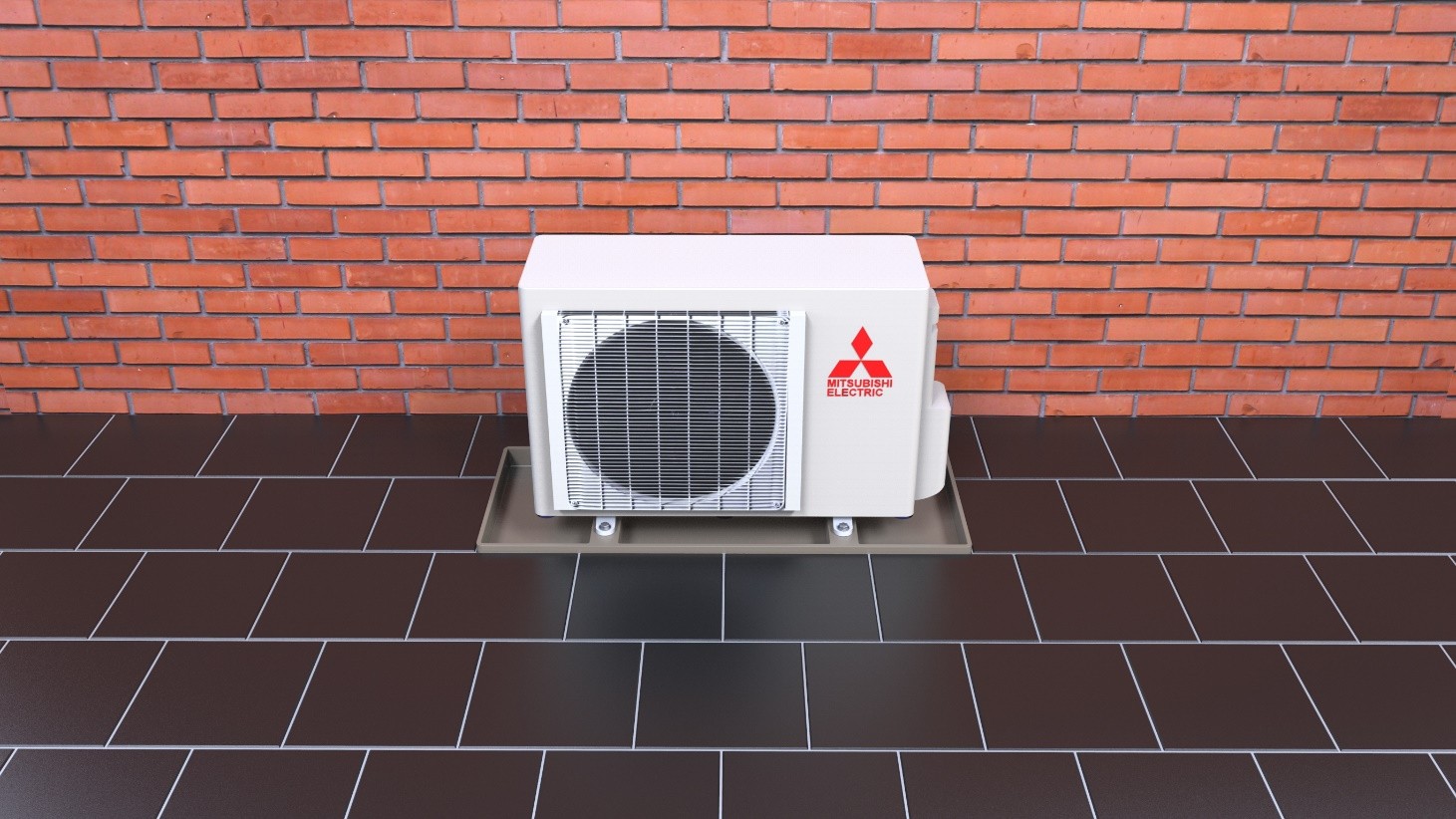

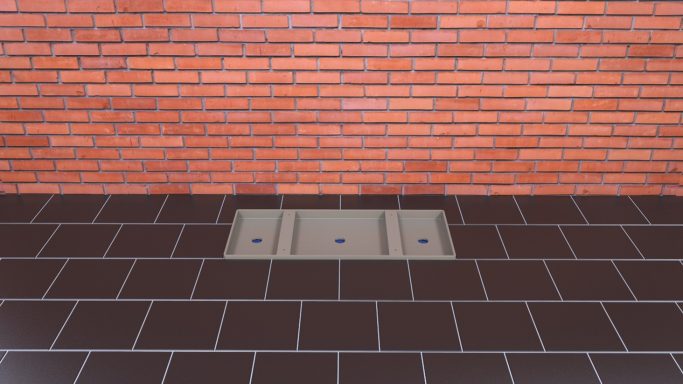

An animation was made to show-promote the principle of placing a water infiltration unit below a heatpump. Following the screenplay made by the customer all the needed elements were modelled in 3D and imported to Keyshot in which the animation was made.
- Click on the thumbnails for larger images -

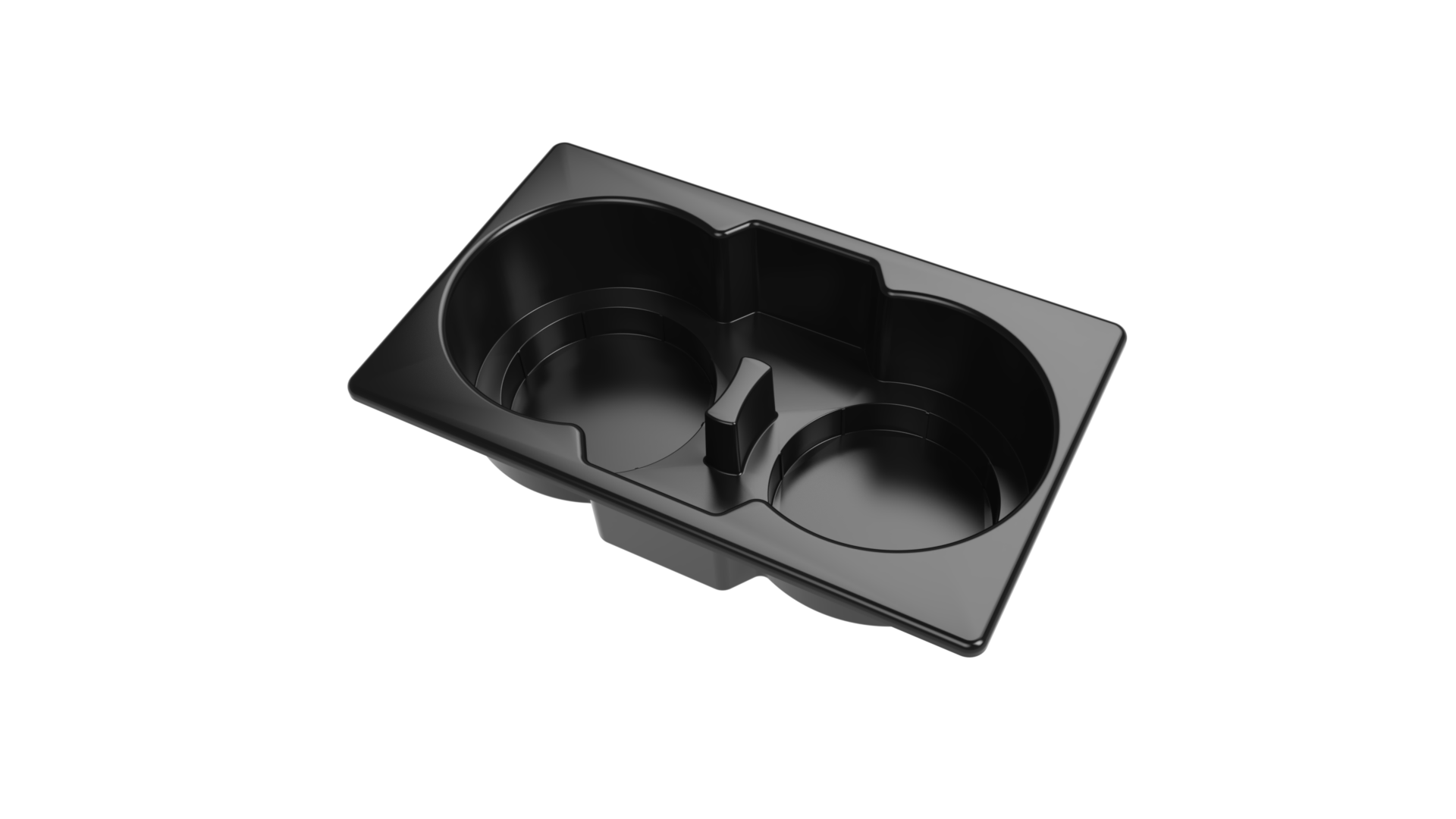

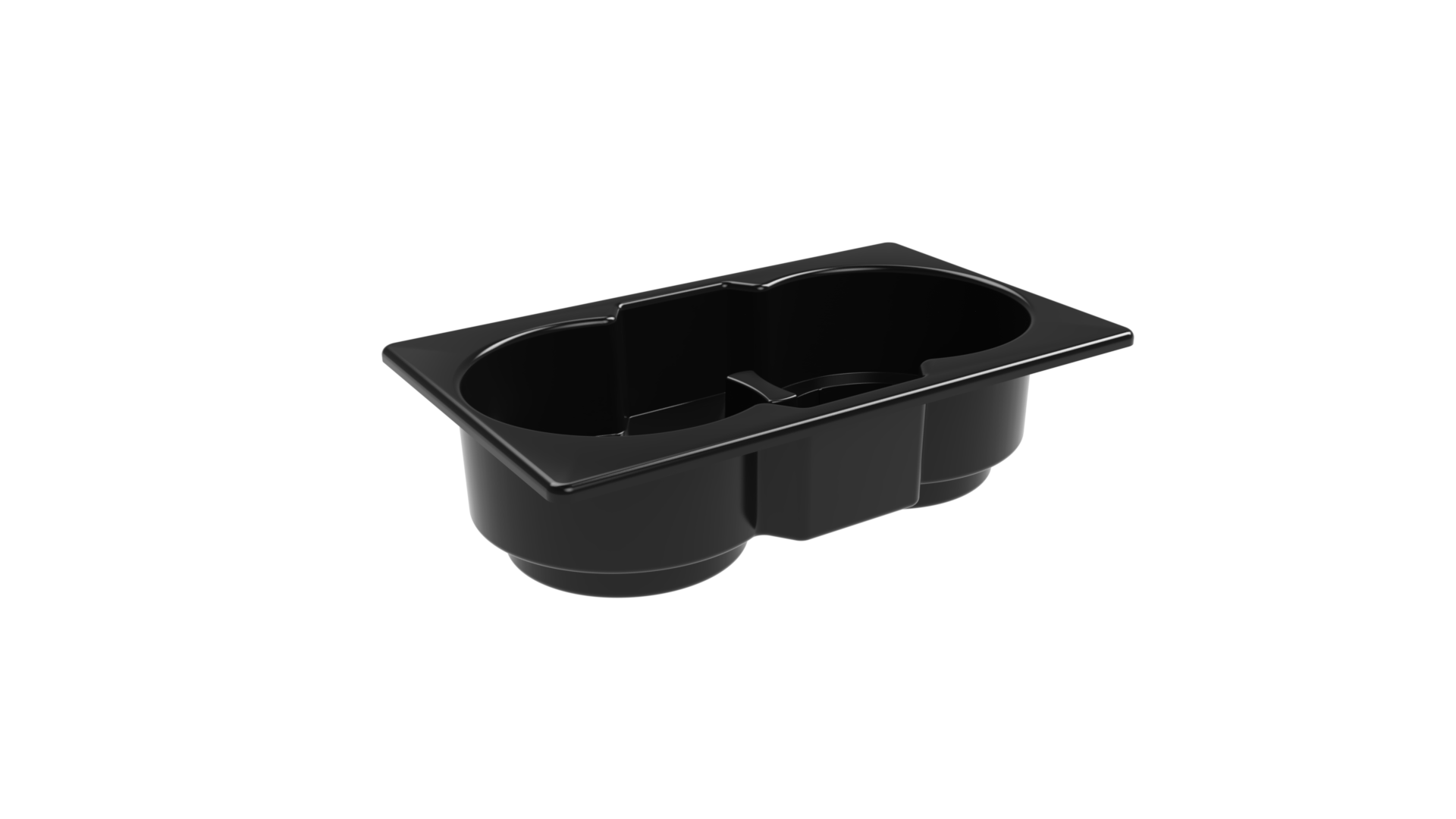

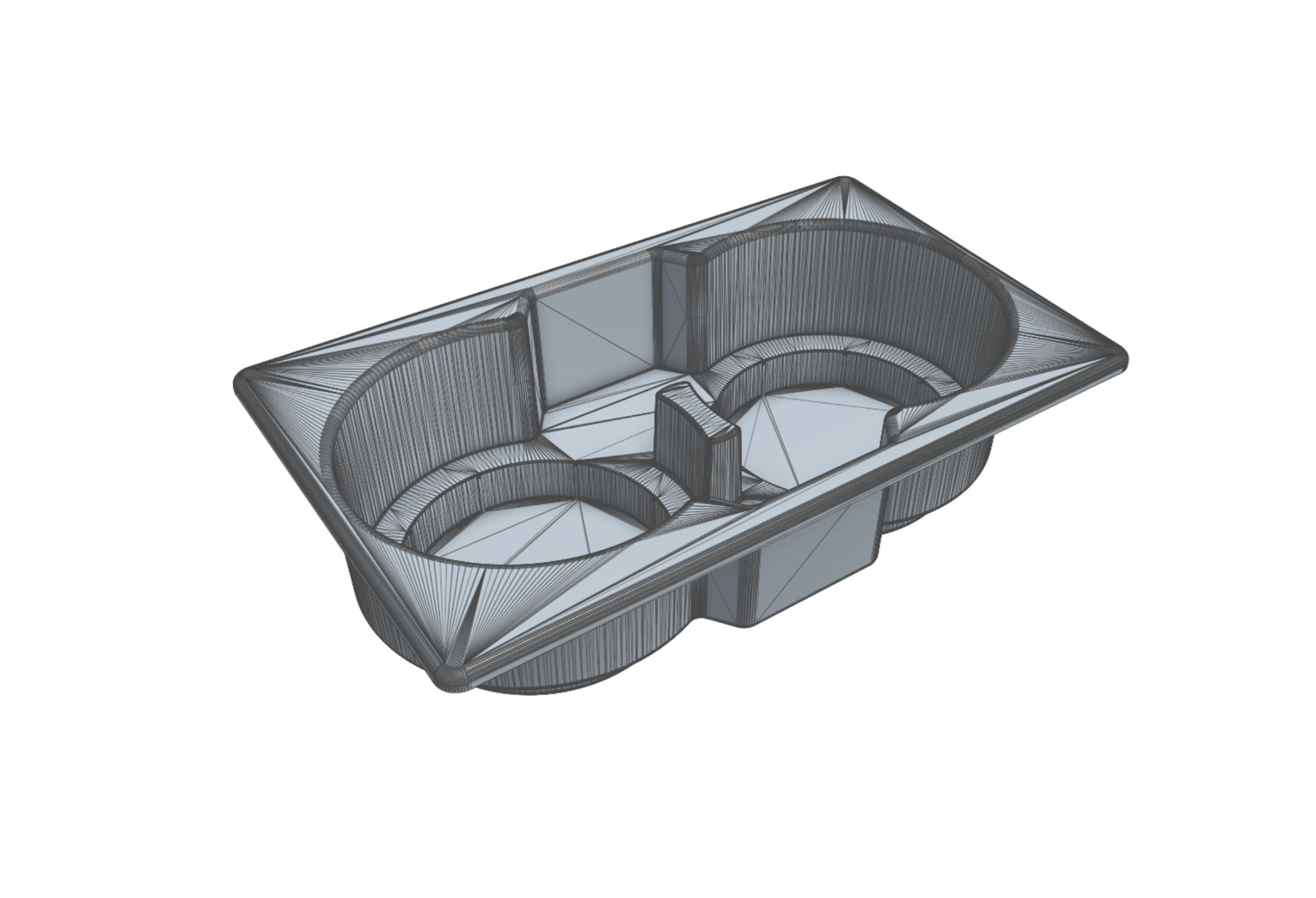

3D Modelling of cup holder

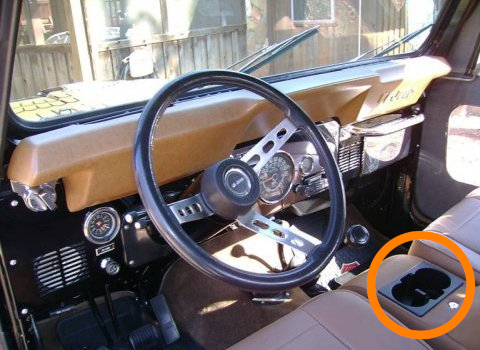

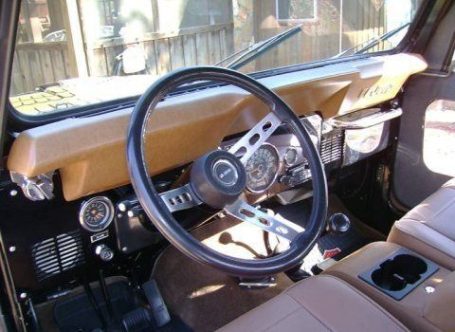

The cupholder of a Jeep Wrangler was broken in half and this part is hard to find currently. The two halfs were used to make a 3D file of the complete part. The file was used to 3D print the part and part was mounted succesfully to the car.
- Click on the thumbnails for larger images -
